Legend Belt Sander Parts

If you have the part number you need simply enter it in the Search window above to see price, availability, and to order. To find a part number, click on the applicable machine diagram below. If your machine is not listed here please contact American Sanders Customer Service.


Legend Base Assembly 1

Legend-Base-Assembly-1


Legend Base Assembly 2

Legend-Base-Assembly-2


Legend Base Assembly 3

RF083400_DIAGRAM_022421_WEB


Legend Belt Guard Assembly

Legend-Belt-Guard


Legend Suspension Assembly

Legend-Control-Carraige-Assembly


Legend Belt Tensioner Assembly

Legend-Belt-Tensioner


Legend Capacitor Box Assembly

Legend-Capacitor-Box-Assembly


Legend Dust Bag Assembly

Legend-Dust-Bag


Legend Fan Assembly

Legend-fan-cover-assembly


Legend Level Bracket Assembly

Legend-level-bracket-assembly


Legend Lifting Handle Assembly

Legend-lift-handle-assembly


Legend Motor Release Pin Assembly

Legend-pull-pin-assembly


Legend Motor Assembly

Legend-motor-asembly


Legend Fixed Handle Assembly

Legend-fixed-handle-assembly


Legend Adjustable Handle Assembly

Legend-adjustable-handle-assembly


Legend Transport Dolly Assembly

Legend-transport-dolly


Legend Stair Climber Assembly

Legend-stair-climber-kit

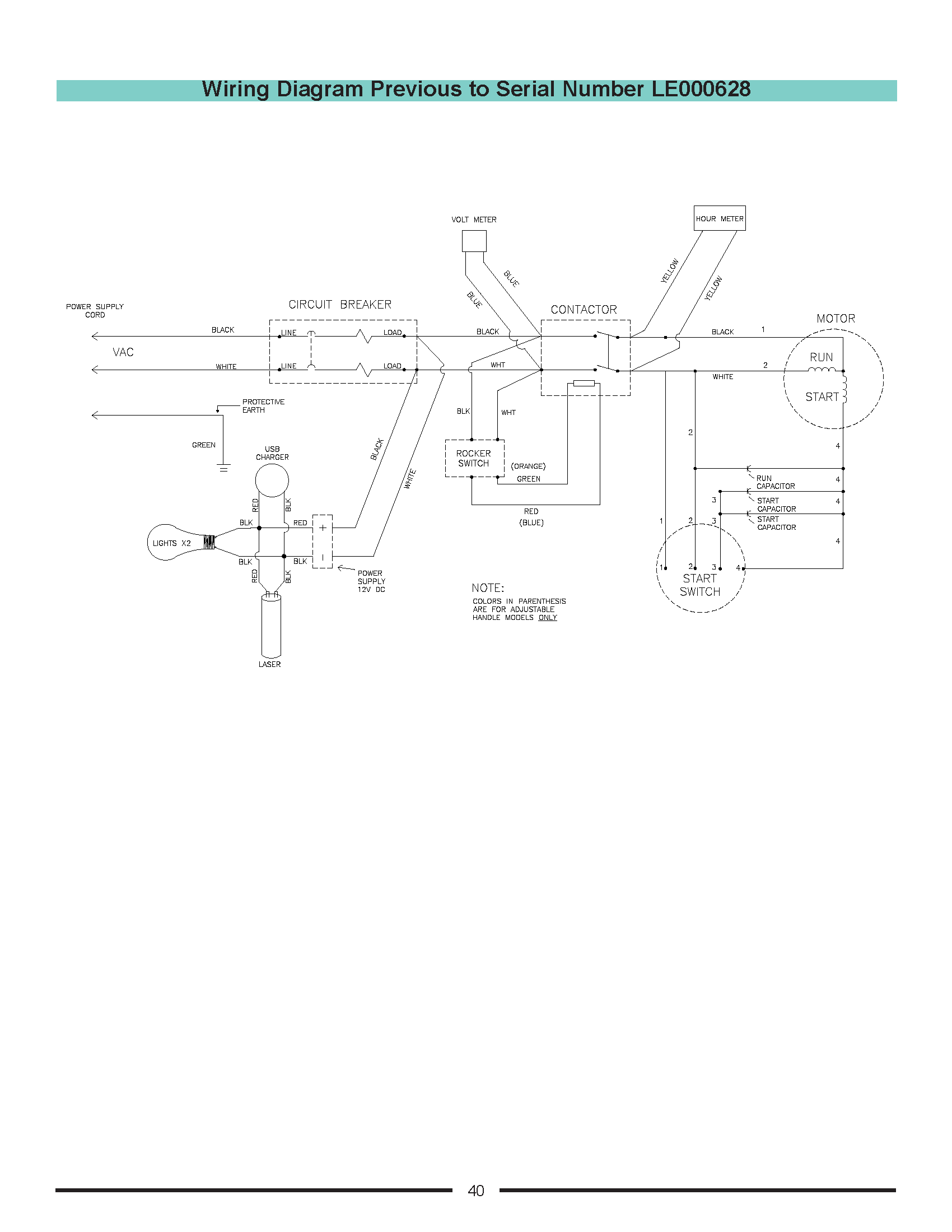

Legend Wiring Diagram Previous to Serial # LE000628

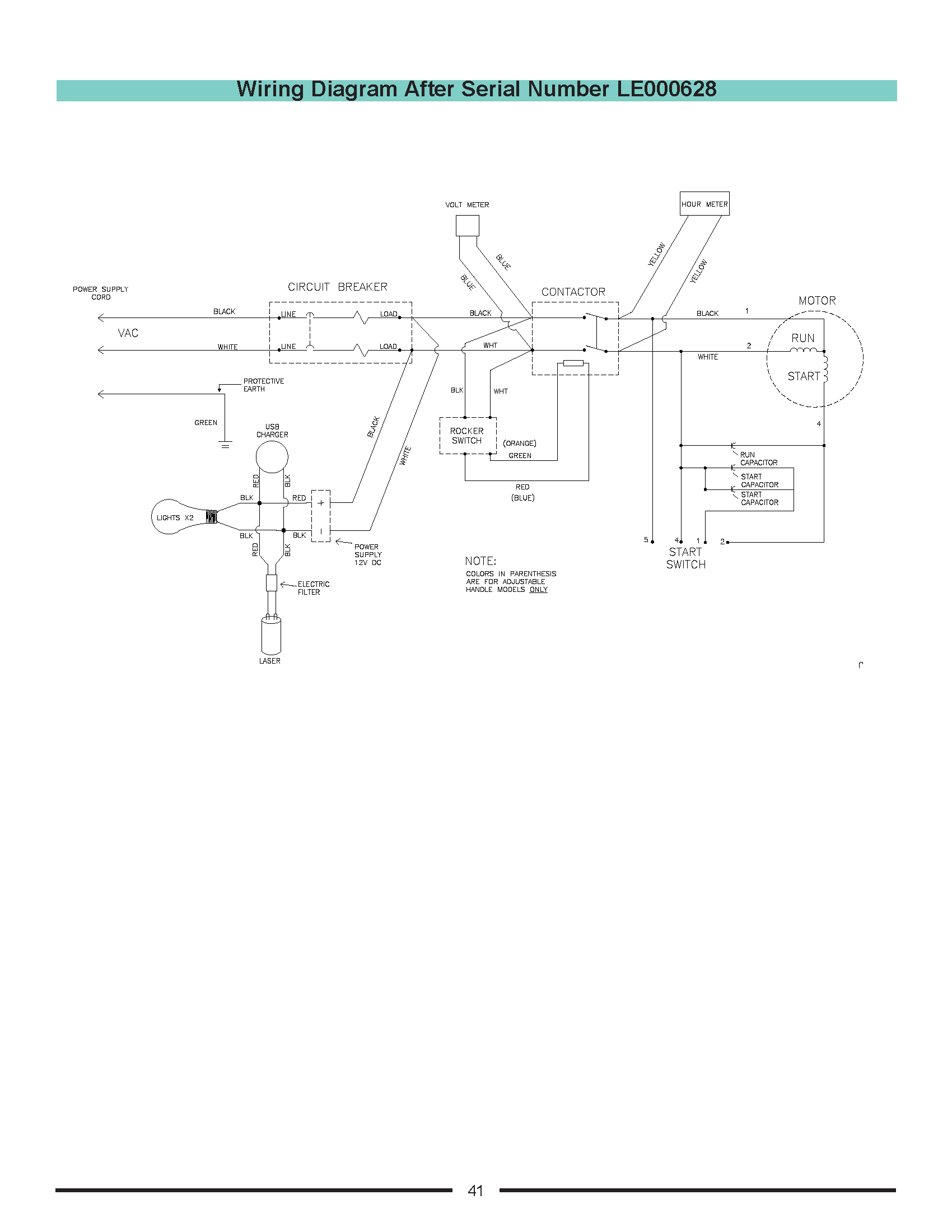

Legend Wiring Diagram After Serial # LE000628
