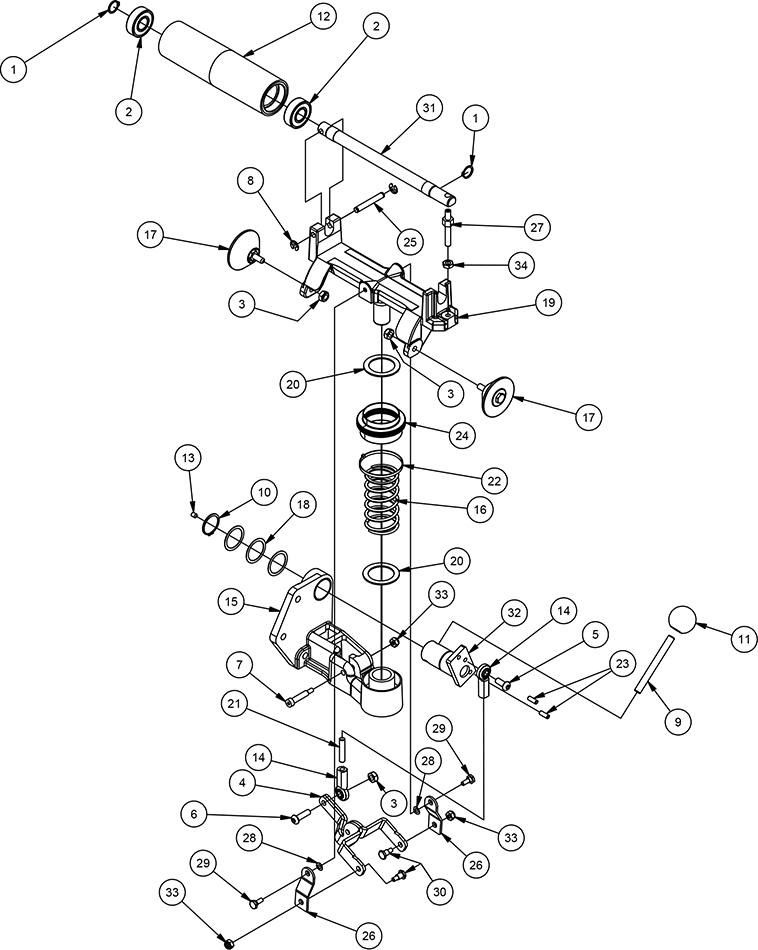

| Item | Part Number | Qty | Description | | Item | Part Number | Qty | Description |
| 1 | 747380 | 2 | RING ROLLER RETAINING | | 18 | 87052A | 3 | WASHER FLT 1.25X1.00X.020 NYLON |
| 2 | 902567 | 2 | BEARING BALL DOUBLE SEALED | | 19 | 20018A | 1 | CARRIAGE TENSION ROLLER |
| 3 | 81217A | 3 | NUT, 1/4-20 X .218H, NYLOK | | 20 | 80422A | 2 | WEAR WASHER |
| 4 | 60393A | 1 | LEVER DRAW | | 21 | 51221A | 1 | LINK CONNECTING |
| 5 | 962822 | 1 | SCR 1/4-20 X 5/8 BT ST SOC | | 22 | NB6041 | 1 | TIE, NYLON, 3/16 X 11 5/8 |
| 6 | 80139A | 1 | SCREW, 1/4-20 X 7/8 BT | | 23 | 925546 | 2 | PIN-3/16X1/2 ROLL |
| 7 | 80020A | 1 | BOLT SHOULDER 1/4 X 1 | | 24 | 30087A | 1 | BOOT, BELT TENSIONING |
| 8 | 51211A | 2 | E-RING .25 DIA | | 25 | 60396A | 1 | PIN ROLLER SHAFT |
| 9 | 60364A | 1 | LEVER, TENSION RELEASE | | 26 | 60382A | 2 | LINK, DRAW |
| 10 | 51277A | 1 | RING, RETAINER - 1.0 EXT. | | 27 | 60381A | 1 | ADJUSTER TRACKING |
| 11 | 51099A | 1 | KNOB, RELEASE | | 28 | 80140A | 2 | WASHER 5MM BOWED |
| 12 | AS069400 | 1 | ROLLER, TENSIONER, LEGEND | | 29 | 60395A | 2 | SCREW LINK RETAINING |
| 13 | 962165 | 1 | SCR 10-24X 3/16 ST ST CUPPT | | 30 | 60391A | 2 | SCREW LINK RETAINING |
| 14 | 51216A | 2 | ROD END FEMALE | | 31 | 60383A | 1 | SHAFT TENSION ROLLER |
| 15 | 20020A | 1 | SUPPORT TENSION ASM. | | 32 | 10247A | 1 | CAM RELEASE WELDMENT |
| 16 | 60379A | 1 | SPRING ABRASIVE TENSION | | 33 | 920296 | 3 | NUT 10-24 ELASTIC STOP |
| 17 | 14704A | 2 | GUIDE ROLLER ASM C-12 | | 34 | 81303A | 1 | NUT HEX JAM 1/4-28 |
