Legend Base Assembly 1A

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

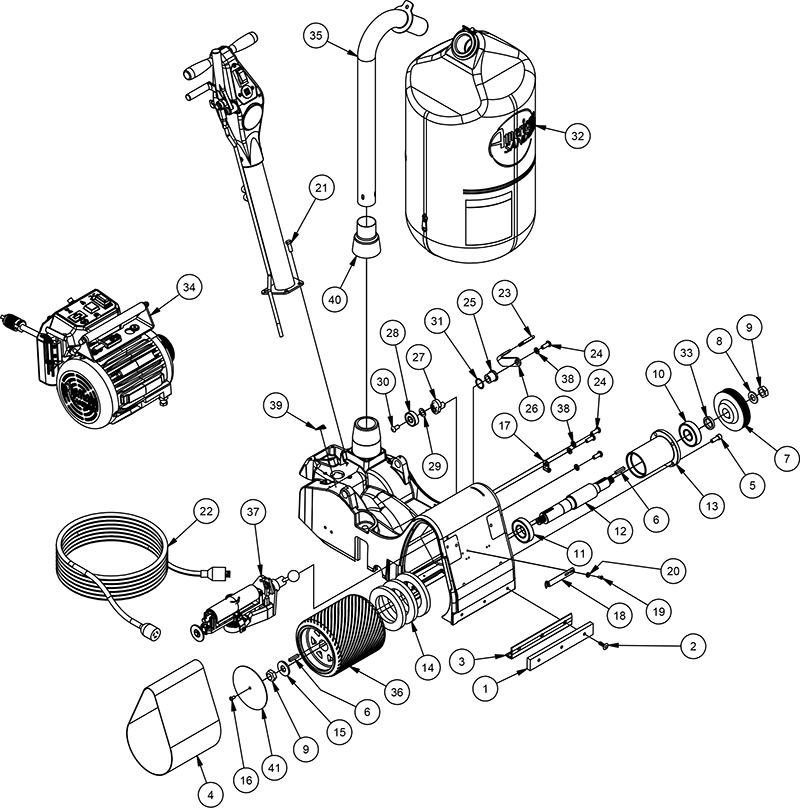

Legend-Base-Assembly-1

Item	Part Number	Qty	Description	Item	Part Number	Qty	Description
1	60392A	1	BUMPER FRONT	23	52420A	1	COVER LEVER
2	51219A	3	RIVET, NYLON, CHRISTMAS TREE	24	962870	4	SCR 3/8 -16X1 BT ST ALLEN
3	AS017200	1	BUMPER, CORNER	25	51215A	1	BEARING FLANGE 5/8 X 1 X 1
4	56382754	1	BELT ABRASIVE 100 GRT	26	AS044900	1	LEVER, BELT TENSION
5	86110A	4	SCREW, 3/8-16 X 1 SOCKET HEAD	27	51093A	1	CAM, BELT RELEASE
6	60394A	2	KEY	28	51111A	1	BEARING BALL
7	AS046700	1	PULLEY, 4", 2 BEARING, 6 GRV., 2 SNAP RN	29	60482A	1	SPACER
8	60378A	1	RETAINER DRUM PULLEY	30	962565	1	SCREW, 3/8-16, BT ST NC3
9	81106A	2	NUT HEX LOCK 3/4-10	31	87052A	1	WASHER FLT 1.25X1.00X.020NYLON
10	51224A	1	BEARING BALL	32	AS045200	1	DUST BAG, ASSEMBLY, LEG- END
11	51223A	1	BEARING BALL	33	AS046800	1	SPACER, DRUM PULLEY
12	51052A	1	SHAFT ARBOR	34	AS048300	1	MOTOR ASSEMBLY, LEGEND (07236A,07236B, 07236C)
13	51051A	1	BEARING CARRIER		AS084400	1	MOTOR ASSEMBLY, LEGEND, AUS. (07241A,07241B, 07241C)
14	30675A	3	SHIELD DUST FLOORCRAFTER	35	AS045100	1	DUST TUBE, LEGEND
15	60377A	1	RETAINER CONTACT WHEEL	36	20015A	1	WHEEL CONTACT - DRUM FLOORCRAFTER
16	87700A	1	SCREW, 1/4-20 X 12 BUTTON HD	37	AS069500	1	BELT TENSIONER ASM., LEGEND
17	NB8125	1	CLAMP, 1/4" ID, RETAINER	38	170883	4	WASHER LK 3/8 REGPLTD
18	AS044700	1	LATCH, SPRING	39	AS079200	1	DECAL, PINCH POINT
19	962911	2	SCR 10-24X 1/2 BT SS ALLEN	40	NB079800	1	SEAL, V-RING, 2.00 I.D
20	NB9645	2	WASHER, FLAT, #10	41	60376A	1	PLATE DRUM END
21	962288	4	BOLT 3/8-16 X 1.00 HEX HD
22	42200A	1	CORD SET-HARD SERVICE (07236A,07236B, 07236C)
	AS084500	1	CORD, POWER, AUS., IEC (07241A,07241B, 07241C)
