To purchase parts for the Legend (Stair Climber Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

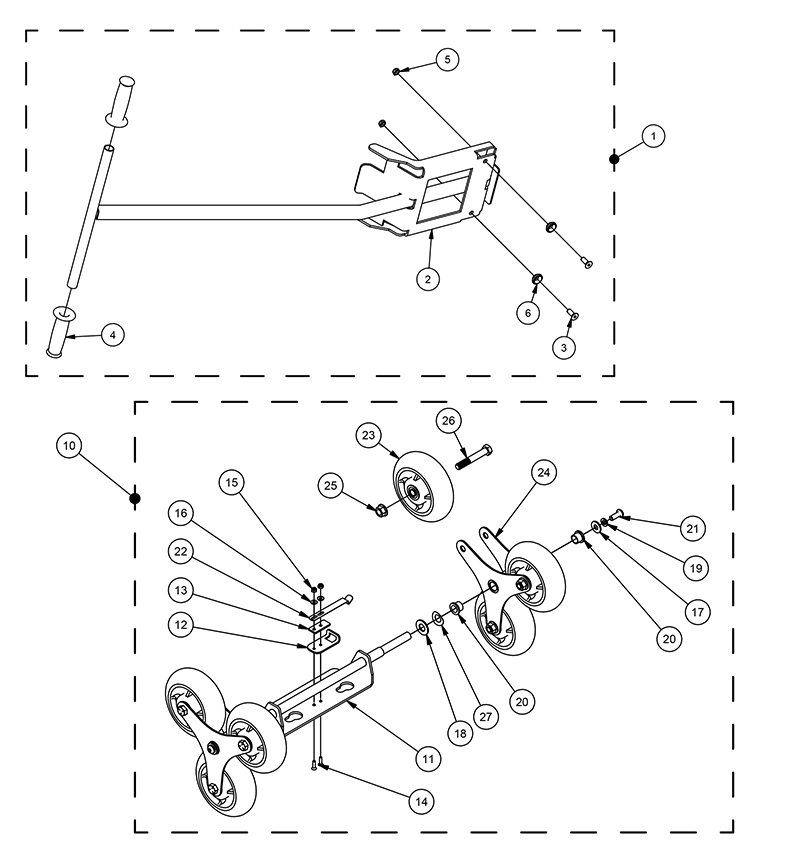

Legend-stair-climber-kit

ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
1AS0814001MOTOR DOLLY, KIT16NB0301002WASHER, FLAT, #10, SS
2AS0463001CARRIAGE, MOTOR, WELDMENT17NB34502WASHER, FLAT, 3/8"
3NB0445002SCREW, SOCKET, FLAT, C/S, 3/8-16 X 1"189806442WASHER, FELT, 5/8 SAE
4MP3669002GRIP, HANDLE, 7/8", BLK191708832WASHER LK 3/8 REGPLTD
59202482NUT 3/8-16 ESNA LIGHT20AS0546004BUSHING, BRONZE, .625 ID
6AS0450002STUD, KEYHOLE219628702SCR 3/8 -16X1 BT ST ALLEN
10AS0813001STAIR CLIMBER, KIT22AS0447001LATCH, SPRING
11AS0540001AXLE, STAIR CLIMBER, WLDMT.23RV0096006WHEEL, PERFORMA, 6" GREY
12AS0488001GUARD, SPRING, LATCH24AS0543002BRACKET, WHEEL, WLDMT
13AS0490001SPACER, LATCH SPRING2581209A6NUT LARGE FLANGE 1/2-13
14NB0332002SCREW, SOCKET, 10-24 X 3/4, FL26NB0794006BOLT, 1/2-13 X 4.25
15NB0307002NUT, LOCK, 10-24, NYLON27NB0795002WASHER, BENT, 0.66 ID x 1.225 OD
