To purchase parts for the Legend (Capacitor Box Assembly):

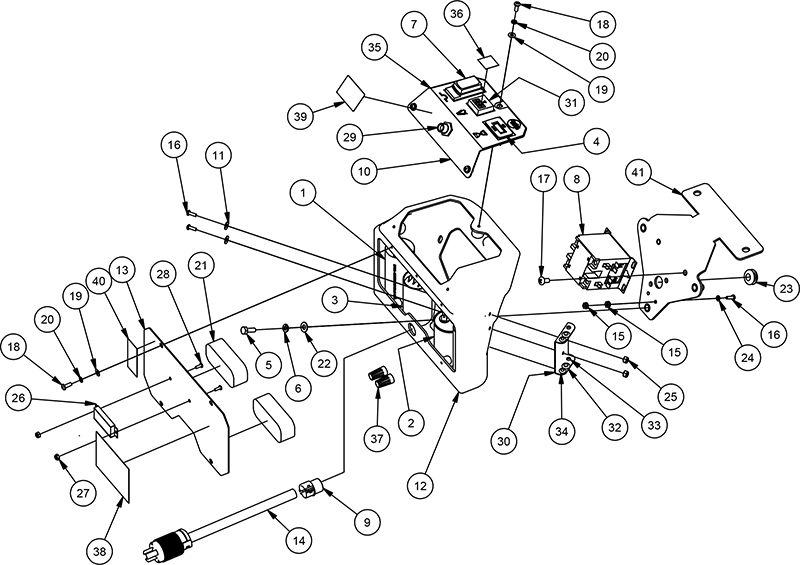

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1 | 41305A | 2 | CAPACITOR ELECTR 161-193MFD (PROVIDED WITH MOTOR) | 24 | 980621 | 2 | WASHER, LOCK, EXTERNAL TOOTH | |
| 2 | 41304A | 1 | RUN CAPACITOR (PROVIDED WITH MOTOR) | 25 | NB9725 | 2 | NUT, LOCK, #8-32, NYLON | |
| 3 | 47378A | 1 | SWITCH MOTOR STARTING (PROVIDED WITH MOTOR) | 26 | AS064300 | 1 | MAGNET, TOOL HOLDER | |
| 4 | AS007800 | 1 | METER, HOUR, AC/DC, DIGITAL | 27 | NB020800 | 2 | NUT, LOCK, NYLON, 6-32 | |
| 5 | 85806A | 3 | SCREW 1/4-20 X 3/4 HX SZ CAP | 28 | 85313C | 2 | SCREW 6-32 X 3/8 PAN HD | |
| 6 | 980657 | 3 | WASHER, LOCK 1/4" | 29 | AS059300 | 1 | CORD, INTERCONNECT, LEGEND | |
| 7 | AS049400 | 1 | CIRCUIT BREAKER, 240V | 30 | AS062400 | 1 | BRACKET, TOOL HOLDING | |
| 8 | AS041600 | 1 | CONTACTOR, 2-POLE, 230V, 40A | 31 | AS064800 | 1 | VOLT METER, 20-500 VAC | |
| 9 | 170637 | 1 | CONDUIT CONNECTOR 3/8" 2-SCREW | 32 | NB077800 | 2 | GROMMET, 1/4 ID | |
| 10 | AS049701 | 1 | PANEL, CONTROL, CAPACITOR BOX | 33 | NB077900 | 2 | GROMMET, 0.109 ID | |
| 11 | NB9720 | 2 | WASHER, FLAT, #8 | 34 | NB078800 | 2 | GROMMET, 3/16 ID | |
| 12 | AS037800 | 2 | BOX, CAPACITOR | 35 | AS079000 | 1 | DECAL, DASH, LEGEND | |
| 13 | AS049600 | 3 | PANEL, ACCESS, CAPACITOR BOX | 36 | AS079600 | 1 | FILM, RED | |
| 14 | AS049500 | 4 | CORD MOTOR CLASSIC 8 | 37 | 170674 | 2 | CONNECTOR WIRE NUT - RED | |
| AS069100 | 1 | CORD, PIGTAIL, POWER, EXPORT | 38 | 77195A | 1 | DECAL, UL WARNING | ||
| 15 | NB9710 | 4 | NUT, KEPS, 8-32, ZINC | 39 | AS042400 | 1 | 00 LABEL, DANGER, VOLTAGE/ MANUAL | |
| 16 | NB007400 | 4 | BOLT, PHILLIPS PAN HD, #8-32 X 1/2 | 40 | 77234A | 1 | LABEL WARNING HEAVY OBJECT | |
| 17 | 962016 | 2 | SCR 10-24 X 1/2 RD ST MACH | 41 | AS081600 | 1 | BRACKET, CAPACITOR BOX, ASM. | |
| 18 | NB034100 | 7 | SCREW, PAN HD, #10-24 X 1/2", SS | 42 | AS060300 | 2 | WIRE, JUMPER, HOUR METER (NOT SHOWN) | |
| 19 | 980982 | 7 | WASHER 10 SAE FLAT PLTD | 43 | AS060400 | 2 | WIRE, JUMPER,VOLT METER (NOT SHOWN) | |
| 20 | 980650 | 7 | WASHER, .19 X .34 X .04 LOCK | 44 | AS060500 | 1 | WIRE, JUMPER, POWER, CONTACTER, WHITE (NOT SHOWN) | |
| 21 | AS057300 | 2 | FOAM, CAPACITOR CUSHION | 45 | AS060600 | 1 | WIRE, JUMPER, POWER, CONTACTER, BLACK (NOT SHOWN) | |
| 22 | NB025400 | 3 | WASHER, FLAT, 1/4", SS | 46 | AS060700 | 1 | WIRE, JUMPER, POWER, MOTOR, WHITE (NOT SHOWN) | |
| 23 | AS040900 | 1 | GROMMET, 1/2 ID HEYCO G1153 | 47 | AS060800 | 1 | WIRE, JUMPER,POWER, MOTOR, BLACK (NOT SHOWN) |
