To purchase parts for the Legend (Fixed Handle Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

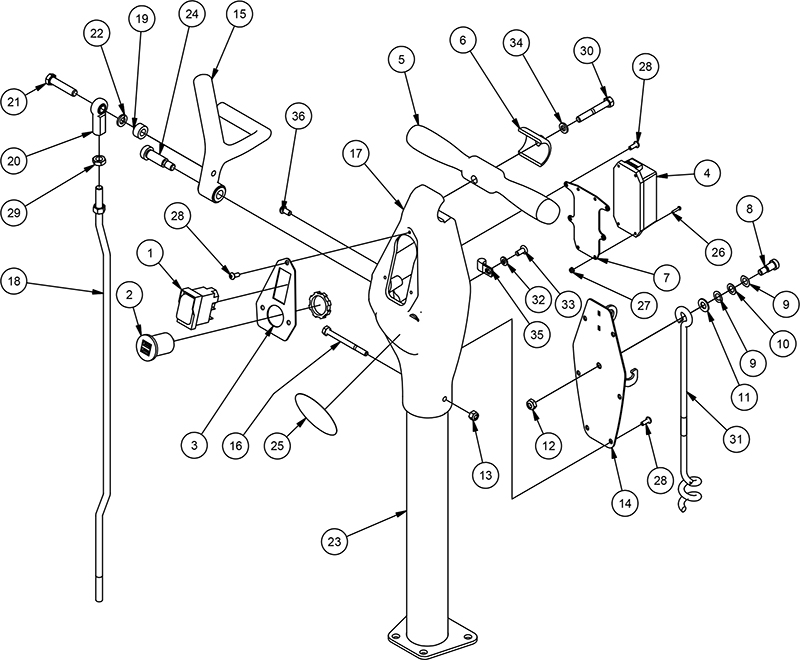

Legend-fixed-handle-assembly

ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
1AS0523001SWITCH, POWER (07236A, 07236B, 07236C)198982031SPACER ROD END HK-8
40775A1SWITCH 16A 230/50 COIL (07241A, 07241B, 07241C)2053537A1ROD END 3/8-24 R.H. FEMALE
2AS0524001RECEPTACLE, USB21NB0245001SCREW, CAP, 3/8 X 1 3/4
3AS0525011PLATE, SWITCH, HANDLE221708831WASHER LK 3/8 REGPLTD
4AS0526001POWER SUPPLY, 12V23AS0633001STEM, HANDLE, FIXED, WELDMENT
5AS0527001HANDLE, STEERING, LEGEND24NB0764001SCREW, SHOULDER, 1/2 DIA X 1 1/4
621904C1CLAMP STEERING HANDLE-BLACK25AS0530001NAMEPLATE, LEGEND
7AS0529004PLATE, MOUNTING, POWER SUPPLY26NB0539004SCREW, PAN HD, # 4-40 X 1/2"
880026A4BOLT SHOULDER 3/8 X 1/227NB0070004NUT, LOCK, NYLON, 4-40
998002213WASHER WAVE2896291113SCR 10-24X 1/2 BT SS ALLEN
1087619A1WASHER FLT .63X.38X.03 NYLON299202041NUT 3/8-24 HEX JAM
1187618A1WASHER FLT .75X .39 .62 NYLON309623081SCR 5/16-18X2&1/4 HX ST
1281112A1NUT 5/16-18 THIN ESNA S.S.31AS0627001ARM, CORD, LEGEND
13NB32751NUT, LOCK, 1/4"329806571WASHER, LOCK 1/4"
14AS0515001COVER, CONTROL BOX339628231SCR 1/4-20 X 1/2 PN ST PH
15AS0374001CONTROL LEVER, LEGEND349806521WASHER, LOCK, 5/16
16NB0765001BOLT, HEX, 1/4-20 X 3 GD535NB0791001CLAMP, 5/16 ID, RETAINER
17AS0377021BOX, CONTROL, HANDLE, BLACK3687700A1SCREW, 1/4-20 X 12 BUTTON HD
AS0377051BOX, CONTROL, HANDLE, RED37AS0628001HARNESS, HANDLE, 4 COND., LEGEND (NOT SHOWN)
AS0377061BOX,CONTROL, HANDLE, BLUE38AS0629001HARNESS, HANDLE, 2 COND., LEGEND (NOT SHOWN)
AS0377071BOX, CONTROL, HANDLE, GOLD39AS0601001WIRE, JUMPER, USB CHARGER, RED (NOT SHOWN)
AS0377081BOX, CONTROL, HANDLE, WHITE40AS0602001WIRE, JUMPER, USB CHARGER, BLACK (NOT SHOWN)
18AS0632008"ROD CONTROL41NB0156008"SLEEVING, PVC, 5/16" (NOT SHOWN)
