To purchase parts for the EZ-E Extension edger (13 Inch Base Assembly):

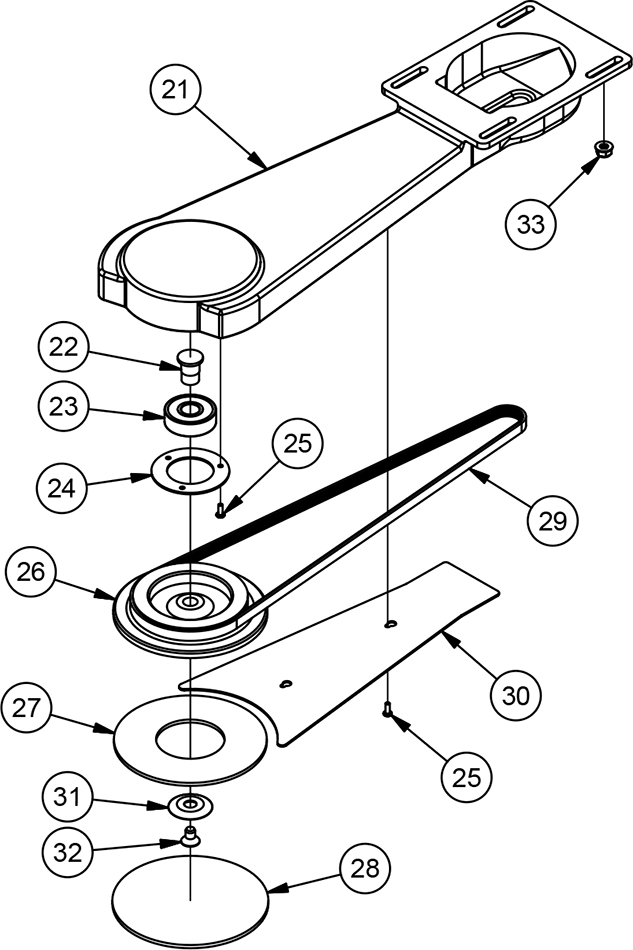

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
ITEM | QTY | PART# | DESCRIPTION |
21 | 1 | AS030200 | EXTENSION, 13", EZ-E |
22 | 1 | 58321A | SHAFT PAD DRIVER SUPER 7E |
23 | 1 | 51111A | BEARING BALL |
14 | 1 | 66964A | RETAINER, BEARING, 2.5"O.D. |
25 | 5 | 85313C | SCREW 6-32 X 3/8 PAN HD |
26 | 1 | AS031500 | PULLEY, 5" PAD, 13" EXTENSION |
27 | 1 | AS030500 | PAD 5" O.D. HOOK & LOOP |
28 | 1 | AS003500 | PAD, FOAM, 5" |
29 | 1 | AS032500 | BELT, 4V360 |
30 | 1 | AS031900 | GUARD, BELT, 13" EXT. |
31 | 1 | 66965A | RETAINER ABRASIVE SUPER 7E |
32 | 1 | NB055600 | SCREW, SFCS, 5/16-18 X 5/8”,SS |
33 | 4 | AS030700 | NUT, FLANGE, 1/4-20, NYLOC |
