To purchase parts for the Clarke Super E (Base Assembly):

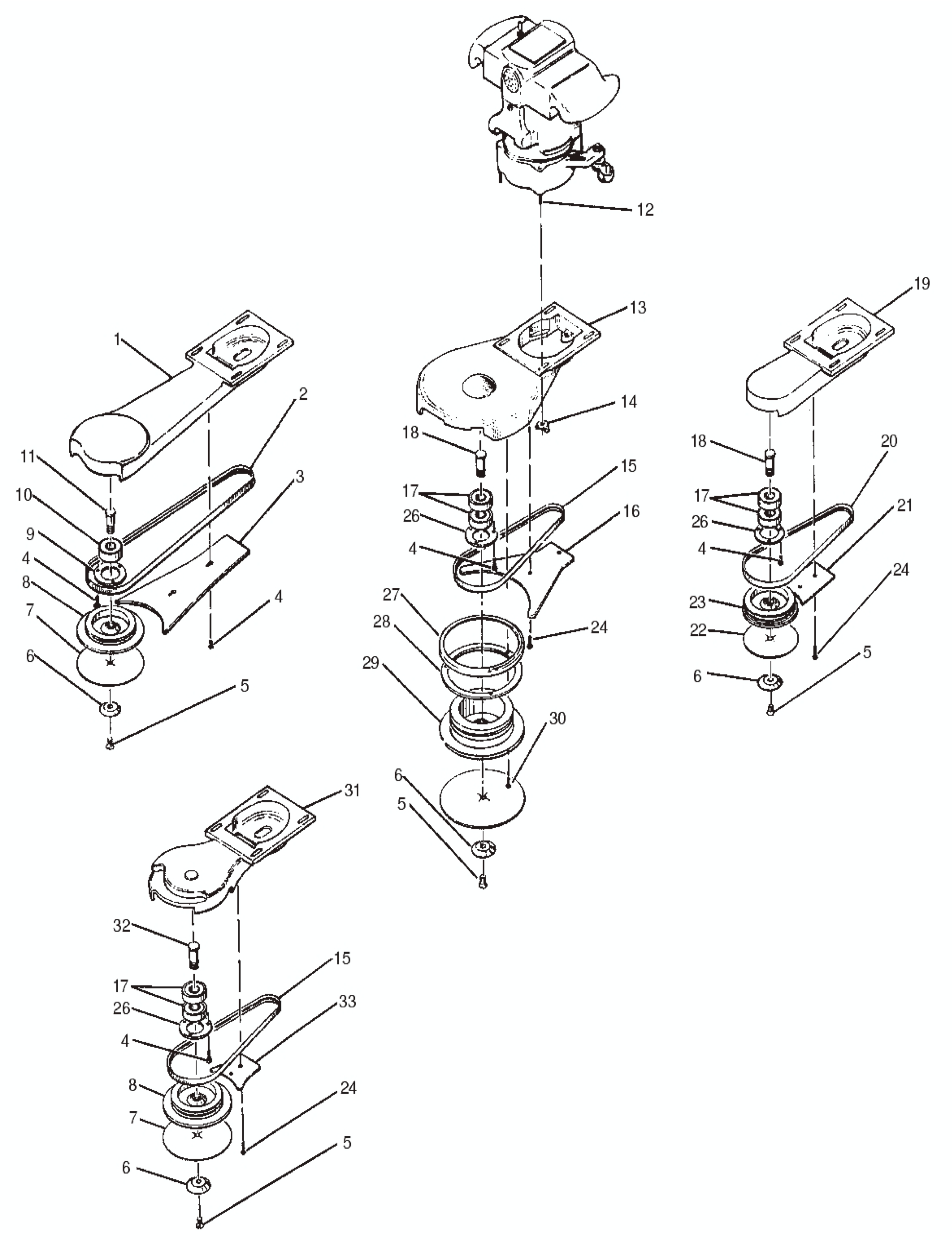

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | |
1 | 22901A | 1 | EXTENSION 13 PNTD SUPER 7E | 21 | 63935A | 1 | GUARD BELT PICKET PNTD SUP | |
2 | 51029A | 1 | V-BELT 5MM SUPER 7E | 22 | 53533A | 1 | Elastomer 3" Pad | |
3 | 63933A | 1 | GUARD BELT 13 EXT. PNTD SUP | 23 | 53147A | 1 | DRIVER 3 PADPICKET SUPER | |
4 | 85313C | Ref. | SCREW 6-32 X 3/8 PAN HD | 62723A | 1 | DRIVER3 1/4-TURN PAD S-5E | ||
5 | 84241A | 1 | SCREW 5/16-18 X 1/2 FLAT HD. | 24 | 85517A | 2 | SCREW 10-24X1/2 PN SB TP-T PH | |
6 | 66965A | 1 | RETAINER ABRASIVE SUPER 7E | 25 | 58324A | 1 | SHAFT3 PAD DRIVER PICKET | |
7 | 53534A | 1 | ELASTOMER5 PAD DRIVERPICKET | 67471A | 1 | SHAFT3 1/4-TURN PAD S-5E | ||
8 | 53144A | 1 | DRIVER PAD 5 SUPER 7E | 26 | 57396A | 1 | RETAINER BEARING SUPER 5E | |
9 | 66964A | 1 | RETAINER BEARING SUPER 7E | 27 | 34109A | 1 | GUARD DISC SUPER 7E | |
10 | 51111A | 1 | BEARINGBALL | 28 | 66973A | 1 | RETAINER DISC GUARD | |
11 | 58321A | 1 | SHAFT PAD DRIVER SUPER 7E***OBSOLETE*** | 29 | 62722A | 1 | DRIVER 7 PAD SUPER 7E | |
12 | 83306A | 4 | STUD 1/4-20 X 1/4-28 X 1 | 30 | 962727 | 3 | SCREW 8-32X 1/2 PN ST TP23 PH | |
13 | 22905A | 1 | EXTENSION 7 PNTD SUPER 7E | 31 | 22902A | 1 | EXTENSION KICK TOE PNTD SUP | |
14 | 86501A | 4 | SCREW THUMB 1/4-20 | 32 | 58323A | 1 | SHAFT 8 PAD DRIVER SUPER 5E | |
15 | 51030A | 1 | BELT-V EXTENSION KICK TOE | 33 | 63934A | 1 | GUARD BELT EXTENSION KICK TO | |
16 | 64006A | 1 | GUARDBELTPNTD SUPER 7E | 13706A | EXTENSION ASM. 13 SUPER 5E****OBSOLETE**** | |||
17 | 902606 | 2 | BEARING BALL 6002 | 13708A | PICKET ASM. SUPER 5E | |||
18 | 67469A | 1 | SHAFT 7 PAD DRIVER SUPER 7E | 10019C | EXTENSION W/1/4 TURN | |||
19 | 22903A | 1 | EXTENSION PICKET PNTD SUPE | 16529A | EXTENSION ASMKICK-TOE W/7PAD***OBSOLETE*** | |||
20 | 51031A | 1 | BELT-V PICKET EXTENSION SUPE | 16528A | EXTENSION ASMKICK-TOE W/5PAD |
