To purchase parts for the Clarke Super 7R (Main Assembly):

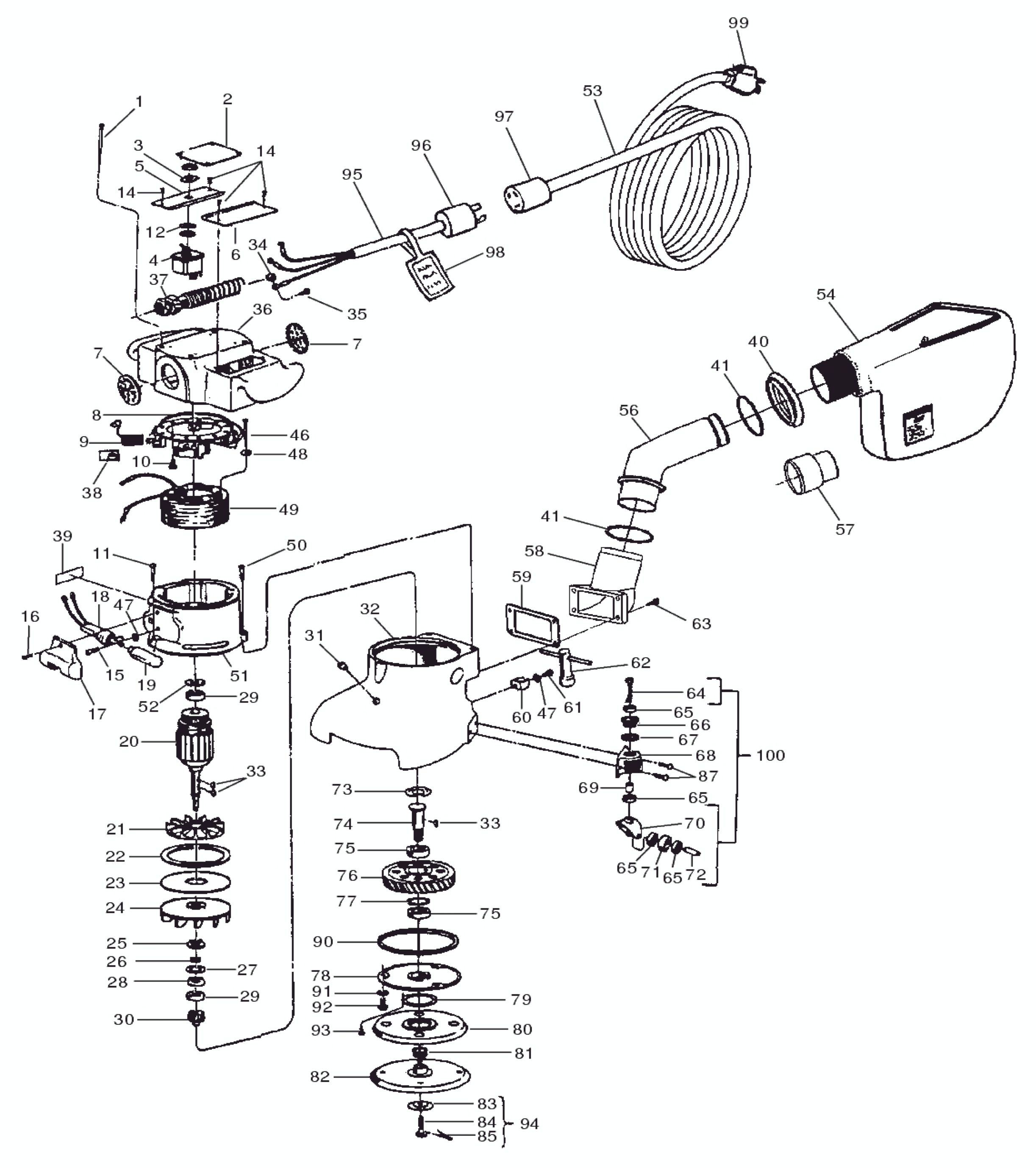

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |||
| 1 | 962404 | 4 | SCREW 10-24X3 1/4 FH ST PH | 28 | 407302 | 1 | RING RETAIN | 58 | 21077A | 1 | ADAPTOR EXHAUST SUPER-7 | 90 | 34232A | 4 | GASKET-GEAR CASE COVER | |||
| 2 | 70487A | 1 | PLATENAME SUPER 7R | 29 | 902567 | 2 | BEARING BALLDOUBLE SEALED | 59 | 293406 | 1 | GASKET EXHAUST BRKT 95 | 91 | 87609A | 3 | WASHERSEAL 10NEOPRENE/STEE | |||
| 3 | 646302 | 1 | SWITCH PLATE | 30 | 293514 | 1 | PINION ARMATURE S7A/R 115/24 | 60 | 302101 | 1 | CLIPSTEEL3/8-5/8GRIP RANGE | 92 | 84808A | 3 | SCREW 10-24 X 3/4 RD SZ PH | |||
| 4 | 47394A | 1 | SWITCH DPST 16A/125V SUPER | 31 | 316804 | 1 | PLUG PIPE 77E17 | 61 | 962987 | 1 | SCR 10-24X 3/8 PN ST TYP23 | 93 | 962974 | 4 | SCREW 6-32X 1/2 FH ST PH | |||
| 5 | 302310 | 1 | COVER MOTOR BRUSH R H | 32 | 304204 | 1 | HOUSING GEAR | 62 | 987300 | 1 | WRENCH S7A/R | 94 | 960125 | 1 | SCREW LOCK S7 | |||
| 6 | 302309 | 1 | COVER MOTOR BRUSH L H | 33 | 915028 | 3 | KEY 1/8 X 5/8 WDRF 5 | 63 | 962289 | 4 | SCREW 1/4-20 X 3/4 SOCKET HD | 95 | 41960A | 1 | CORD INTERCONNECTING SUPER 7 | |||
| 7 | 306802 | 2 | PLUG VENT | 34 | 980621 | 1 | WASHER 8 EXT. TOOTH PLTD | 64 | 85702A | 2 | SCR 1/4 -20X1&3/4 HX ST CAP | 41947A | 1 | CORD POWER 14-3 14 240V 7 | ||||
| 8 | 43201A | 1 | HOLDER ASM. BRUSH | 35 | 962550 | 1 | SCREW 8-32X 5/16 RD ST TP23 PH | 65 | 50740A | 8 | BEARINGBALL1/4 X 3/4SHIELD | 96 | 912169 | 1 | PLUGELECTRICAL NEMA L5-15P | |||
| 9 | 40818A | 4 | BRUSHCARBON EACH S-7A/7R | 36 | 302312 | 1 | COVER & HANDLE ASM POLISHED | 66 | 960130 | 2 | SCR CSTR ADJ S7 | 45602A | 1 | PLUGELECT. NEMA L6-15P | ||||
| 40055A | 4 | BRUSH CARBON | 37 | 56475A | 1 | RELIEF STRAIN 240V S7 | 67 | 920670 | 2 | NUT LOCK ADJUST S7 C5 | 97 | 911461 | 1 | CONNECTOR ELECT. NEMA L5-15R | ||||
| 10 | 962727 | 4 | SCREW 8-32X 1/2 PN ST TP23 PH | 38 | 50932A | 4 | SPRING BRUSH HOLDER | 68 | 310803 | 2 | BRKT CASTER SUPPORT 10 | 41708A | 1 | CONNECTORELECT.NEMA L6-15R | ||||
| 11 | 962988 | 1 | SCREW 1/4-20X1 1/4 PN ST PH | 39 | 73285A | 1 | LABEL-WARNING | 69 | 298215 | 2 | COLLAR SPACING S-7R | 98 | 70175A | 1 | TAG WARNING ENG-SPN | |||
| 12 | 980662 | 1 | WASHER-SH 1224-00 LOCK | 40 | 80276A | 1 | NUT-SLIP JOINT 2X2 | 70 | 29404A | 2 | YOKE EDGER CASTER S-7/B-2+ | 99 | 911248 | 1 | PLUG ELECT. NEMA 5-15P | |||
| 14 | 962545 | 4 | SCREW 6-32 X 3/8 FLAT HEAD | 41 | 30613A | 2 | SEAL PIPE S-7 & B-2 EDGERS | 71 | 299704 | 2 | ROLLER SWIVEL CASTER 68 | 45603A | 1 | PLUGELECTRICAL NEMA 6-15P | ||||
| 15 | 85393A | 1 | SCREW 10-24 X 1/4 PN SZ PH | 46 | 962211 | 2 | SCR 10-24X2&1/2 RD P ST MACH | 72 | 925592 | 2 | PIN-1/4 X 1 SPIROL | 40023A | 1 | PLUG AU1-10P | ||||
| 16 | 962310 | 1 | SCR 10-24X 1/2 OV P ST MACH | 47 | 980603 | 7 | WASHER LK 10 EXT TOOTHPLTD | 73 | 318303 | 1 | SPRING LOAD 76 | 100 | 12208A | 1 | CASTER ASM. S7A/R STUDYOKE | |||
| 17 | 303602 | 1 | GUARD LAMP | 48 | 980643 | 2 | WASHER 7/16ODX.036THK | 74 | 307702 | 1 | SHAFT DRIVE GEAR | 31407A | 1 | SUPER 7R EDGER CASE***USE AS035800*** | ||||
| 18 | 46902A | 1 | SOCKET ASSY | 49 | 42820A | 1 | FIELD & COIL ASM 115V | 75 | 902550 | 2 | BEARING BALL-6203 | 312404 | 1 | 8YE7 CUTTER DISC | ||||
| 19 | 911113 | 1 | LIGHT BULB-15T7DC/CLEAR 15W | 42819A | 1 | FIELD & COIL ASM 240V | 76 | 303502 | 1 | GEAR DRIVE | a | 311306 | 1 | BLADE DISC CUTTER 81E7 | ||||
| 911116 | 1 | LAMPCLEAR250V 10WBAYONETB- | 50 | 962454 | 2 | SCR 1/4 -20X1 SC ST CAP | 77 | 67304 | 1 | RING RETAIN RO42 | b | 312904 | 1 | EJECT DISC CUTTER 87E7 | ||||
| 20 | 10101B | 1 | ARMATURE ASM WITH FAN S7A/R | 51 | 304208 | 1 | HOUSING & GUARD ASSEM | 78 | 302306 | 1 | COVER GR HSG ASSY | c | 315604 | 1 | MALLET LS/O 2X4 3190G | |||
| 10110A | 1 | ARMATURE ASM.SUPER 7R 240V 50 | 20013A | 1 | HOUSING MOTOR SUPER 7R | 79 | 317204 | 1 | RETAINER DISC GRD 80E17 | d | 317004 | 1 | PUNCH CENTER 82 E7 | |||||
| 21 | 303004 | 1 | FAN MOTOR COOLING METAL S7 | 52 | 298306 | 1 | SPRING LOAD 56 | 80 | 293616 | 1 | GUARD DISC S7A/R | e | 317304 | 1 | 80E7 RING DISC CUTT SUPP | |||
| 22 | 293403 | 1 | GASKETEXH FAN BAFFLE S-7R | 53 | 42234A | 1 | CORD SET SUPER 7E | 81 | 980088 | 2 | WASHER 94 BE7 | f | 762005 | 1 | CLAMP | |||
| 23 | 306102 | 1 | PLATE EXHAUST FAN BAFFLE | 42182A | 1 | CORD ASM POWER SUPPLYSUPER 7 | 82 | 13203A | 1 | DISC ASM SANDING SUPER 7R | g | 920208 | 1 | NUT HEX 1/4-20PLTD | ||||
| 24 | 303002 | 1 | IMPELLER VACUUM METAL S7A/R | 40007A | 1 | CORDSET 50FT W/AU1-10P | 83 | 980132 | 1 | WASHER DISC RETAINING S7A/R | h | 962013 | 1 | SCR 1/4 -20X1&1/4 RD ST MACH | ||||
| 25 | 307302 | 1 | RING RETAINING | 54 | 53544A | 1 | BAGDUST EDGER S-7/B-2 | 84 | 960140 | 1 | SCR PAPER LOCK S7 | i | 962233 | 1 | SCR 1/4 -20X 5/16 ST ST KNURL | |||
| 26 | 308202 | 1 | SPACER BEARING | 56 | 61564A | 1 | TUBE EXHAUST S-7 | 85 | 925004 | 1 | PIN-1/16X1/2 COTTER | |||||||
| 27 | 297604 | 1 | OIL SEAL 92 | 57 | 30563A | 1 | ADAPTOR2 TUBE X 1.50 CUFF | 87 | 962109 | 4 | SCR 10-24X 5/8 PN SS |
