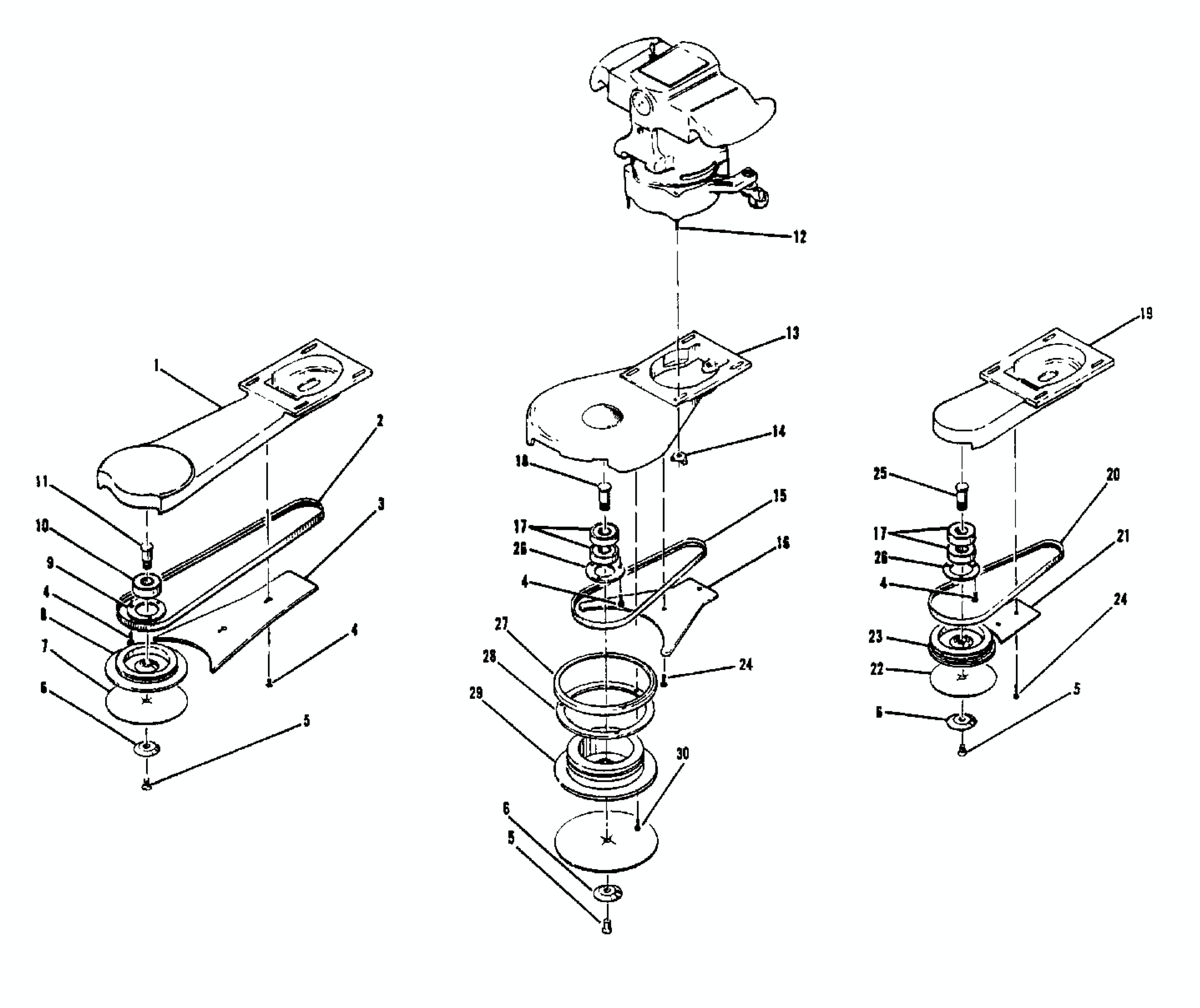

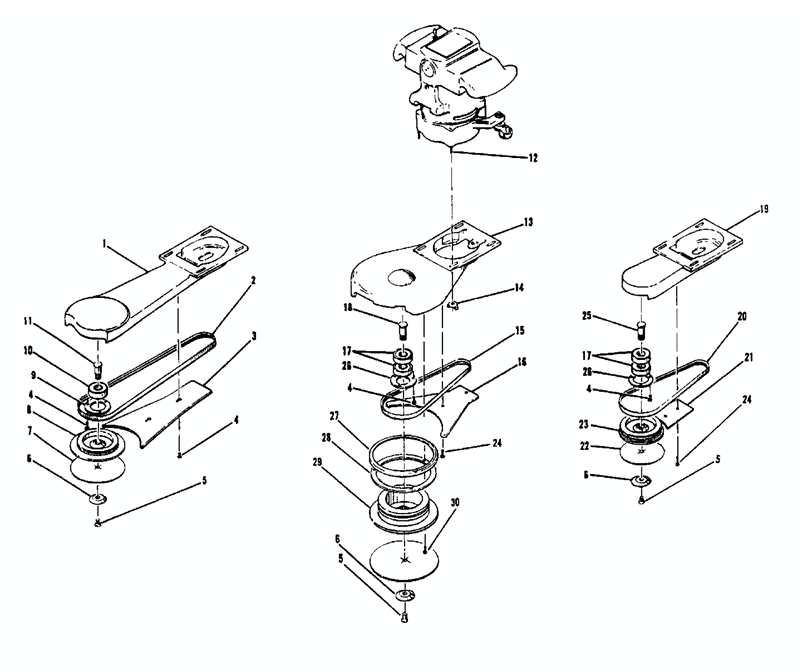

To purchase parts for the Clarke Super 7E (Base Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | |
| 1 | 22901A | 1 | EXTENSION 13 PNTD SUPER 7E | 19 | 22903A | 1 | EXTENSION PICKET PNTD SUPE | |
| 2 | 51029A | 1 | V-BELT 5MM SUPER 7E | 20 | 51031A | 1 | BELT-V PICKET EXTENSION SUPE | |
| 3 | 63933A | 1 | GUARD BELT 13 EXT. PNTD SUP | 21 | 63935A | 1 | GUARD BELT PICKET PNTD SUP | |
| 4 | 85313C | SCREW 6-32 X 3/8 PAN HD | 22 | 53533A | 1 | Elastomer 3" Pad | ||
| 5 | 84241A | 1 | SCREW 5/16-18 X 1/2 FLAT HD. | 23 | 53147A | 1 | DRIVER 3 PADPICKET SUPER | |
| 6 | 66965A | 1 | RETAINER ABRASIVE SUPER 7E | 62723A | 1 | DRIVER3 1/4-TURN PAD S-5E | ||
| 7 | 53534A | 1 | ELASTOMER5 PAD DRIVERPICKET | 24 | 85517A | 2 | SCREW 10-24X1/2 PN SB TP-T PH | |
| 8 | 53144A | 1 | DRIVER PAD 5 SUPER 7E | 25 | 58324A | 1 | SHAFT3 PAD DRIVER PICKET | |
| 9 | 66964A | 1 | RETAINER BEARING SUPER 7E | 67471A | 1 | SHAFT3 1/4-TURN PAD S-5E | ||
| 10 | 51111A | 1 | BEARINGBALL | 26 | 57396A | 1 | RETAINER BEARING SUPER 5E | |
| 11 | 58321A | 1 | SHAFT PAD DRIVER SUPER 7E***OBSOLETE*** | 27 | 34109A | 1 | GUARD DISC SUPER 7E | |
| 12 | 83306A | 4 | STUD 1/4-20 X 1/4-28 X 1 | 28 | 66973A | 1 | RETAINER DISC GUARD | |
| 13 | 22905A | 1 | EXTENSION 7 PNTD SUPER 7E | 29 | 62722A | 1 | DRIVER 7 PAD SUPER 7E | |
| 14 | 86501A | 4 | SCREW THUMB 1/4-20 | 30 | 962727 | 3 | SCREW 8-32X 1/2 PN ST TP23 PH | |
| 15 | 51030A | 1 | BELT-V EXTENSION KICK TOE | 13706A | EXTENSION ASM. 13 SUPER 5E****OBSOLETE**** | |||
| 16 | 64006A | 1 | GUARDBELTPNTD SUPER 7E | 13708A | PICKET ASM. SUPER 5E | |||
| 17 | 902606 | 2 | BEARING BALL 6002 | 13710A | PICKET ASM,1/4-TURN (SUPER 5E) | |||
| 18 | 67469A | 1 | SHAFT 7 PAD DRIVER SUPER 7E |
