To purchase parts for the Clarke Super 5E (Main Assembly):

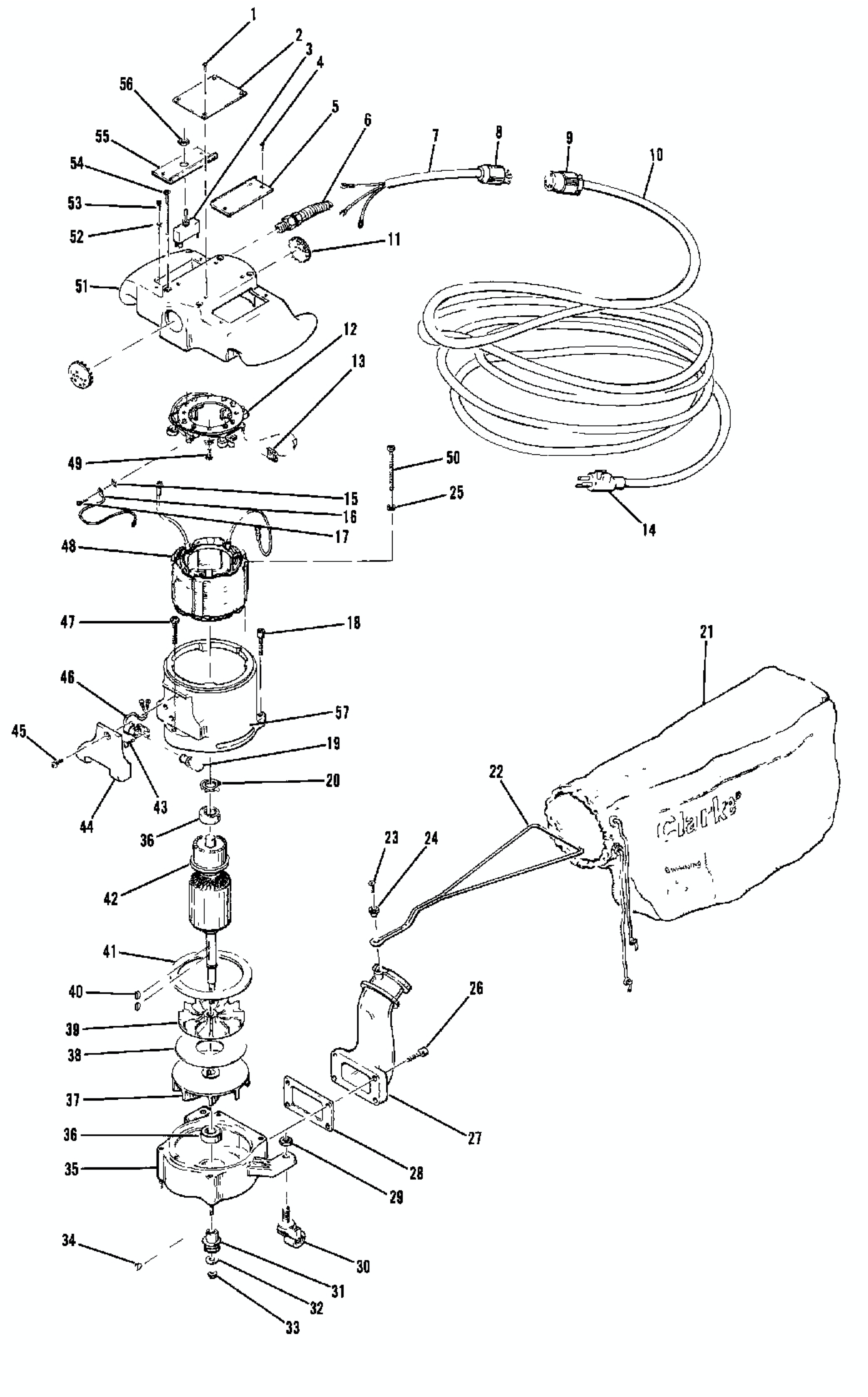

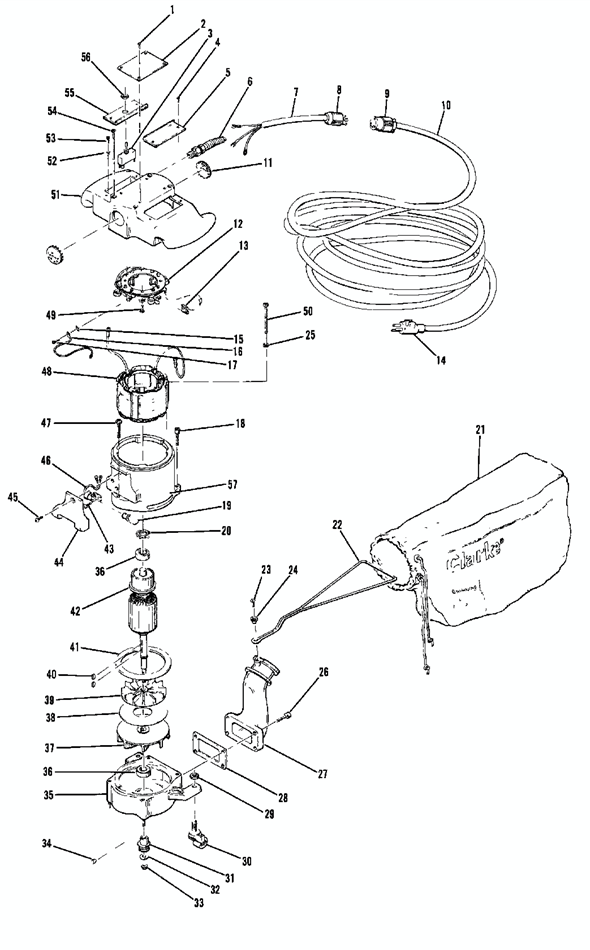

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description | Item | Part Number | QTY | Description |
| Part Number | QTY | Description | ||||
| 1 | 962555 | 4 | SCR 0-00X 3/16 FT ST DRIVE | 17 | 962004 | 1 | Screw 6-32 x 3/8 | 38 | 306102 | 1 | PLATE EXHAUST FAN BAFFLE | ||||
| 2 | 73908A | 1 | Name Plate | 18 | 962454 | 2 | SCR 1/4 -20X1 SC ST CAP | 39 | 303004 | 1 | FAN MOTOR COOLING METAL S7 | ||||
| 3 | 47394A | 1 | SWITCH DPST 16A/125V SUPER | 19 | 911113 | 1 | LIGHT BULB-15T7DC/CLEAR 15W | 40 | 915028 | 2 | KEY 1/8 X 5/8 WDRF 5 | ||||
| 4 | 84400A | 1 | SCR 6-32X 3/8 FT ST TYP T | 20 | 298306 | 1 | SPRING LOAD 56 | 41 | 293403 | 1 | GASKETEXH FAN BAFFLE S-7R | ||||
| 5 | 302309 | 1 | COVER MOTOR BRUSH L H | 21 | 60723A | 1 | BAG DUST S7A/R | 42 | 40321A | 1 | ARMATURE ASM SUPER 7E | ||||
| 6 | 56475A | 1 | RELIEF STRAIN 240V S7 | 22 | 307402 | 1 | ROD DUST BAG SUPPORT | 43 | 85393A | 1 | SCREW 10-24 X 1/4 PN SZ PH | ||||
| 7 | 41960A | 1 | CORD INTERCONNECTING SUPER 7 | 23 | 962567 | 1 | SCR 10-24X 3/4 SF ST NYLOK | 44 | 34108A | 1 | GUARD LAMP PNTD SUPER 7E | ||||
| 8 | 912169 | 1 | PLUGELECTRICAL NEMA L5-15P | 24 | 301102 | 1 | BUSHING BAG SUPPORT | 45 | 962310 | 1 | SCR 10-24X 1/2 OV P ST MACH | ||||
| 9 | 911461 | 1 | CONNECTOR ELECT. NEMA L5-15R | 25 | 980643 | 2 | WASHER 7/16ODX.036THK | 46 | 46902A | 1 | SOCKET ASSY | ||||
| 10 | 42234A | 1 | CORD SET SUPER 7E | 26 | 962454 | 1 | SCR 1/4 -20X1 SC ST CAP | 47 | 962988 | 1 | SCREW 1/4-20X1 1/4 PN ST PH | ||||
| 11 | 306802 | 2 | PLUG VENT | 27 | 63054A | 1 | BRACKET EXHAUST PNTD SUPER 7 | 48 | 42801B | 1 | FIELD ASM. S7A/R | ||||
| 12 | 301308 | 1 | BLOCK ASSEM BRUSH S7A/R | 28 | 293406 | 1 | GASKET EXHAUST BRKT 95 | 49 | 962727 | 4 | SCREW 8-32X 1/2 PN ST TP23 PH | ||||
| 301307 | 1 | BLOCK BRUSH | 29 | 920196 | 2 | NUT-1/2-13 HEX JAM | 50 | 962211 | 2 | SCR 10-24X2&1/2 RD P ST MACH | |||||
| 164004 | 4 | HOLDER BRUSH S7A/R | 30 | 52132A | 2 | CASTER SWIVEL SUPER**OBSOLETE** | 51 | 32386A | 1 | COVER MOTOR PNTD SUPER 7E | |||||
| 168324 | 4 | SPRING BRUSH TENSION S7A/R | 31 | 57263A | 1 | PULLEY MOTOR SUPER 7E | 52 | 980621 | 1 | WASHER 8 EXT. TOOTH PLTD | |||||
| 47502A | 4 | TABOFFSET SUPER 7 SPADE-BRUS | 32 | 980646 | 1 | WASHER 1/4 SAE FLAT PLTD | 53 | 962550 | 1 | SCREW 8-32X 5/16 RD ST TP23 PH | |||||
| 911853 | 2 | Assembly, Wire | 33 | 81302A | 1 | NUTHEX JAM1/4-20 | 54 | 962404 | 4 | SCREW 10-24X3 1/4 FH ST PH | |||||
| 13 | 40818A | 4 | BRUSHCARBON EACH S-7A/7R | 34 | 915561 | 1 | HP404 KEY HARDENED | 55 | 302310 | 1 | COVER MOTOR BRUSH R H | ||||
| 14 | 911248 | 1 | PLUG ELECT. NEMA 5-15P | 35 | 24527A | 1 | HOUSING FAN PNTD S7E GRAY | 56 | 646302 | 1 | SWITCH PLATE | ||||
| 15 | 980607 | 1 | WASHER 6 EXT TOOTH PLTD | 36 | 902567 | 2 | BEARING BALLDOUBLE SEALED | 57 | 24528A | 1 | HOUSING MOTOR PNTD SUPER 7E | ||||
| 16 | 49030A | 1 | Wire Brush Card | 37 | 303002 | 1 | IMPELLER VACUUM METAL S7A/R |
