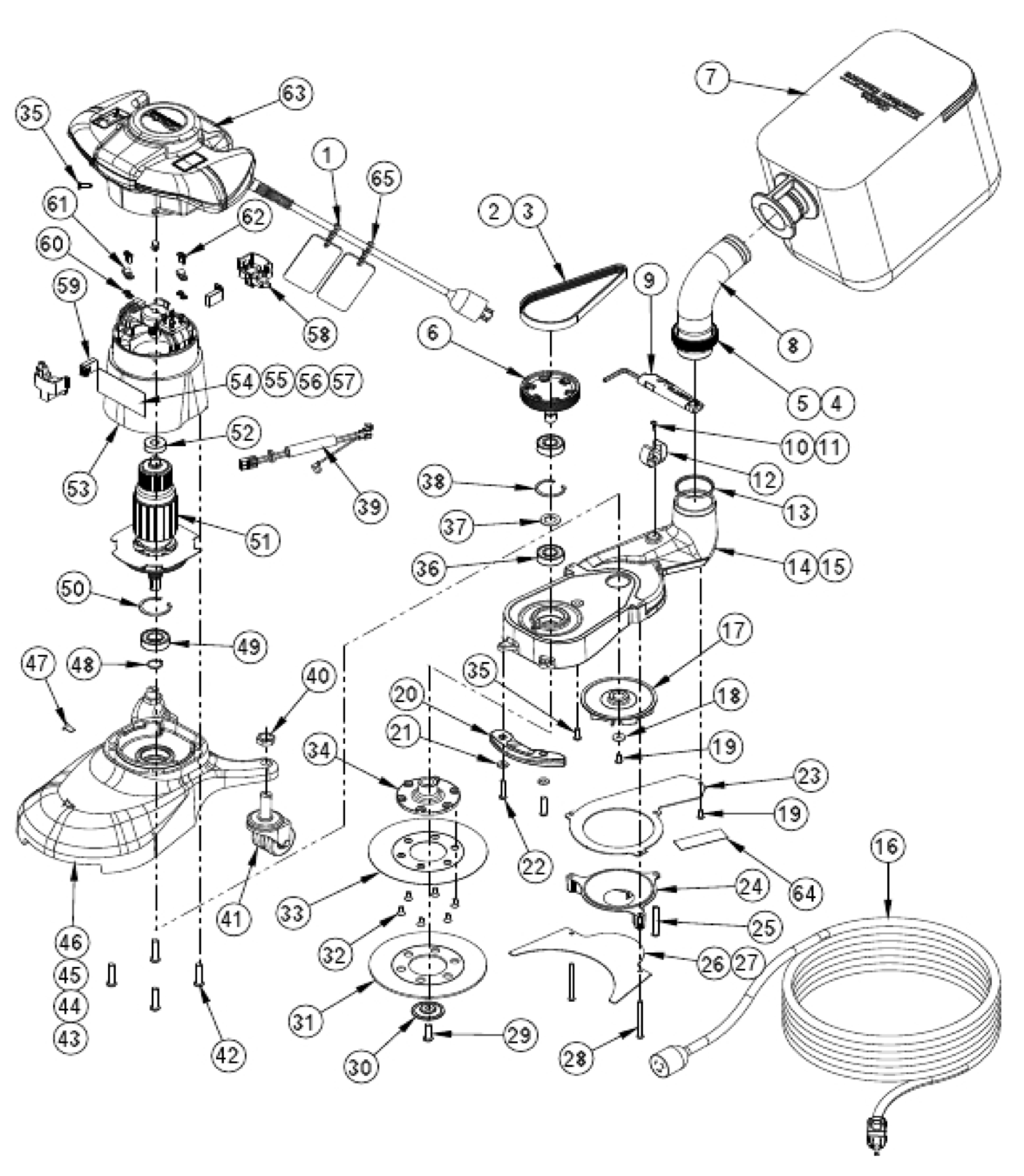

To purchase parts for the Clarke SE 7 Pro (Main Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | ||
| 1 | 70175A | 1 | TAG WARNING ENG-SPN | 23 | 61861A | 1 | PLATE FAN BAFFLE | 45 | 29919A | 1 | EXTENSION SHORT POLISHED | ||
| 2 | 53772A | 1 | BELT DRIVE CE7 | 24 | 39866A | 1 | SHROUD FAN | 46 | 29920A | 1 | EXTENSION SHORT PNTD | ||
| 3 | 53775A | BELT DRIVE SE7 | 25 | 80356A | 1 | SCREW M6X50 CL10.9 BTN HD SCKT | 47 | 30188A | 1 | PLUG ACCESS HOLE CE/SE 7 | |||
| 4 | 80276A | 1 | NUT-SLIP JOINT 2X2 | 26 | 61853A | 1 | PLATE BOTTOM DUST | 48 | 877305 | 1 | RING RETAINING EXT .781 | ||
| 5 | 990507 | 1 | LOCTITE RETAINING COMPOUND | 27 | 61854A | 1 | PLATE DUST BOTTOM SE7 | 49 | 53771A | 1 | Bearing ball 6004 | ||
| 6 | 29908A | 1 | PULLEY DRIVEN | 28 | 80325A | 1 | SCREW M5X65 CL10.9 BTN HD SOC | 50 | 877304 | 1 | RINGRETAININGINTERNAL8 BEL | ||
| 7 | 53544C | 1 | BAG DUST CE7/SE7 | 29 | 80357A | 1 | SCREW M8-1.25X25 BTN HD | 51 | 11119A | 1 | ARMATURE CE/SE7 120 V | ||
| 8 | 61712A | 1 | TUBE EXHAUSTB-2 | 30 | 62411A | 1 | CLAMP SANDPAPER B-2 EDGER | 52 | 51126A | 1 | BEARING-BALLDBL SEAL 6201 | ||
| 9 | 39875A | 1 | TOOL MULTIPURPOSE | 31 | 39864A | 1 | PAD HOOK & LOOP | 53 | 1 | Motor Housing Assembly | |||
| 10 | 80362A | 1 | SCREW CAP M4-.7X12 BUTTON HEAD | 32 | 80364A | 6 | SCREW M5-0.8X12 FH ALLEN MACH | 54 | 71464A | 1 | LABEL CE7 PRO+ | ||
| 11 | 93801A | 1 | LOCTITE THREAD LOCKER MED STR | 33 | 61851A | 1 | SANDING DISC | 55 | 71465A | 1 | LABEL CE7 PRO | ||
| 12 | 61858A | 1 | CLIP TOOL HOLDER | 34 | 29910A | 1 | HUB PAD DRIVER | 56 | 71466A | 1 | LABEL SE7 PRO+ | ||
| 13 | 30613A | 2 | SEAL PIPE S-7 & B-2 EDGERS | 35 | 80326A | 5 | SCREW M6-1 X 15 BT | 57 | 71467A | 1 | LABEL SE7 PRO | ||
| 14 | 29906A | 1 | SUPPORT BEARING CE 7 | 36 | 902550 | 2 | BEARING BALL-6203 | 58 | 40717A | 2 | HOLDERBRUSH B-2 EDGER | ||
| 15 | 29907A | 1 | SUPPORT BEARING SE 7 | 37 | 61860A | 1 | SPACER PAD BEARING | 59 | 40583A | 2 | BRUSHCARBONTERMINATED | ||
| 16 | 42300A | 1 | CORD SET 115V | 38 | L067304 | 1 | RING RETAIN RO42 | 60 | 980603 | 4 | WASHER LK 10 EXT TOOTHPLTD | ||
| 17 | 29902A | 1 | FAN DUST | 39 | 40252A | 1 | SPEED SELECT INTERCONNECT | 61 | 98464A | 2 | H027 1/4 NYLON TUBING CLAMP | ||
| 18 | 80291A | 1 | WASHER FLAT 10 TYPE B WIDE | 40 | 80361A | 2 | NUT M16-2 CL 4 THIN HEX JAM | 62 | 962027 | 4 | SCREW 8-32 X 1/2 PAN HD | ||
| 19 | 80363A | 2 | SCREW M5-.8X12 BT | 41 | 39865A | 2 | CASTER & YOKE ASM | 63 | 1 | Handle Assembly | |||
| 20 | 39867A | 1 | GUARD WALL | 42 | 80358A | 4 | SCREW CAP M8-1.25X35 BUTTON HD | 64 | 56380639 | 1 | DECAL-PROP 65 | ||
| 21 | 980646 | 2 | WASHER 1/4 SAE FLAT PLTD | 43 | 29904A | 1 | EXTENSION LONG POLISHED | 65 | 70175A-FR | 1 | TAG WARNING ENG-FRN | ||
| 22 | 80327A | 2 | SCREW M6X30 CL10.9 BTN HD SCKT | 44 | 29905A | 1 | EXTENSION LONG PNTD | 66 | 11226A | 1 | SANDING DISC ASM W/ HOOK (NOT SHOWN) |
