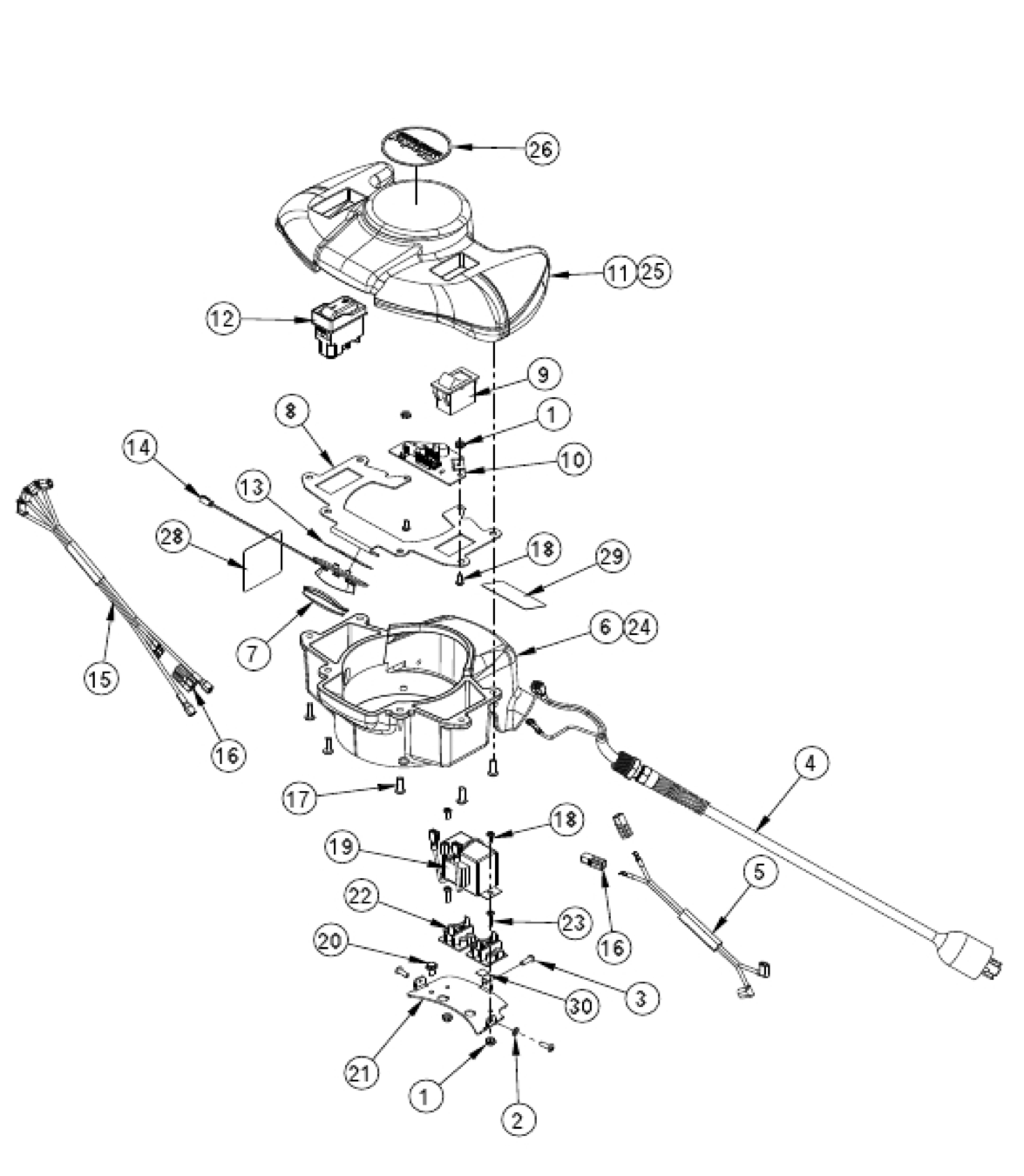

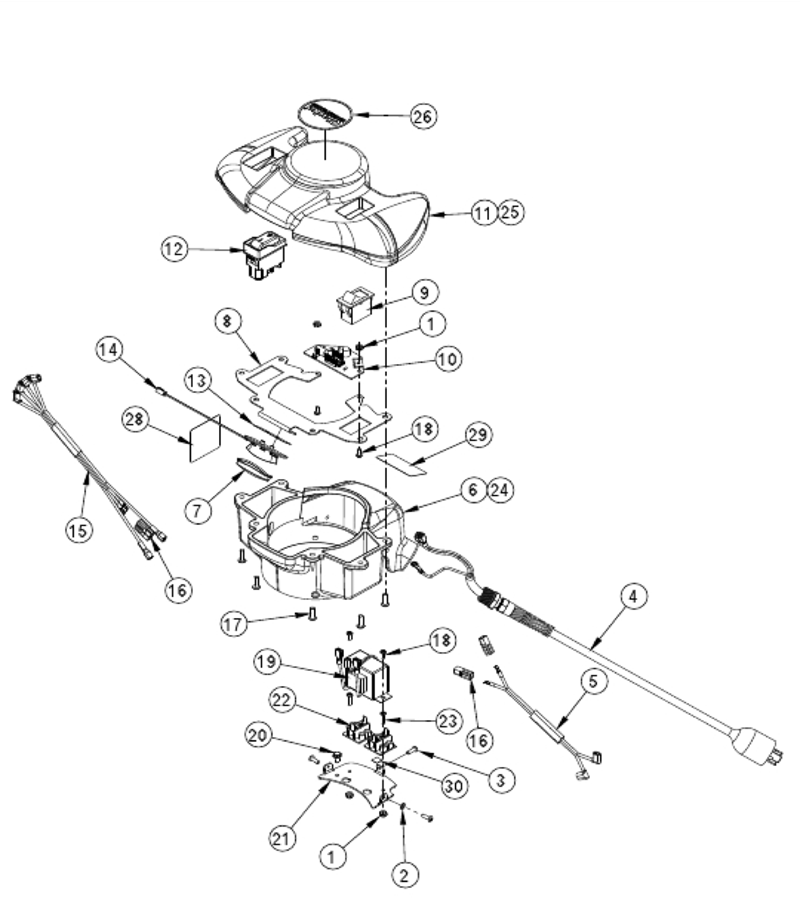

To purchase parts for the Clarke CE7 Pro (Handle Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1 | 920056 | 4 | NUT-6X32 ELASTIC STOP | 16 | 43401A | 4 | HOUSING CONNECTOR BLK VISIO | |
| 2 | 980621 | 1 | WASHER 8 EXT. TOOTH PLTD | 17 | 80324A | 6 | SCREW CAP M5-.8X16 BUTTON HEAD | |
| 3 | 962727 | 3 | SCREW 8-32X 1/2 PN ST TP23 PH | 18 | 85313C | 4 | SCREW 6-32 X 3/8 PAN HD | |
| 4 | 40943A | 1 | CORD ADAPTER CE7 | 19 | 40946A | 1 | TRANSFORMER ASSY | |
| 5 | 11344A | 1 | SPEED SELECT WIRE ASM | 20 | 85833A | 1 | SCREW MACHINE 10-32 TYPE 23 | |
| 6 | 29912A | 1 | HANDLE SUPPORT POLISHED | 21 | 61855A | 1 | PLATE SUPPORT | |
| 7 | 39871A | 1 | LENS TRANSPARANT | 22 | 41079A | 2 | BLOCK TERMINAL 1/4 | |
| 8 | 61856A | 1 | PLATE SWITCH | 23 | 962738 | 2 | SCREW 6-32 X 5/8 PAN HD. S.S. | |
| 9 | 47365A | 1 | SWITCH ROCKER 15A CFS-2700 | 24 | 29913A | 1 | HANDLE SUPPORT PAINTED | |
| 10 | 40947A | 1 | LED CONTROL CIRCUIT BOARD | 25 | 39868A | 1 | HANDLE PLASTIC | |
| 11 | 29915A | 1 | HANDLE POLISHED | 26 | 71468A | 1 | LABEL CAS NEW RED**OBSOLETE** | |
| 12 | 40948A | 1 | SWITCH 115V NO-VOLT | 28 | 71468A | 1 | LABEL CAS NEW RED**OBSOLETE** | |
| 13 | 40265A | 1 | TAPE THERMALLY CONDUCTIVE | 29 | 56380216 | 1 | DECAL POWER TOOL CAUTIONARY MA | |
| 14 | 40945A | 1 | LED BOARD ASSY | 30 | 77094A | 1 | LABEL GROUND SYMBOL | |
| 15 | 11343A | 1 | CONTROL SWITCH WIRE ASM |
