To purchase parts for the Clarke American B2+DC (Upper Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

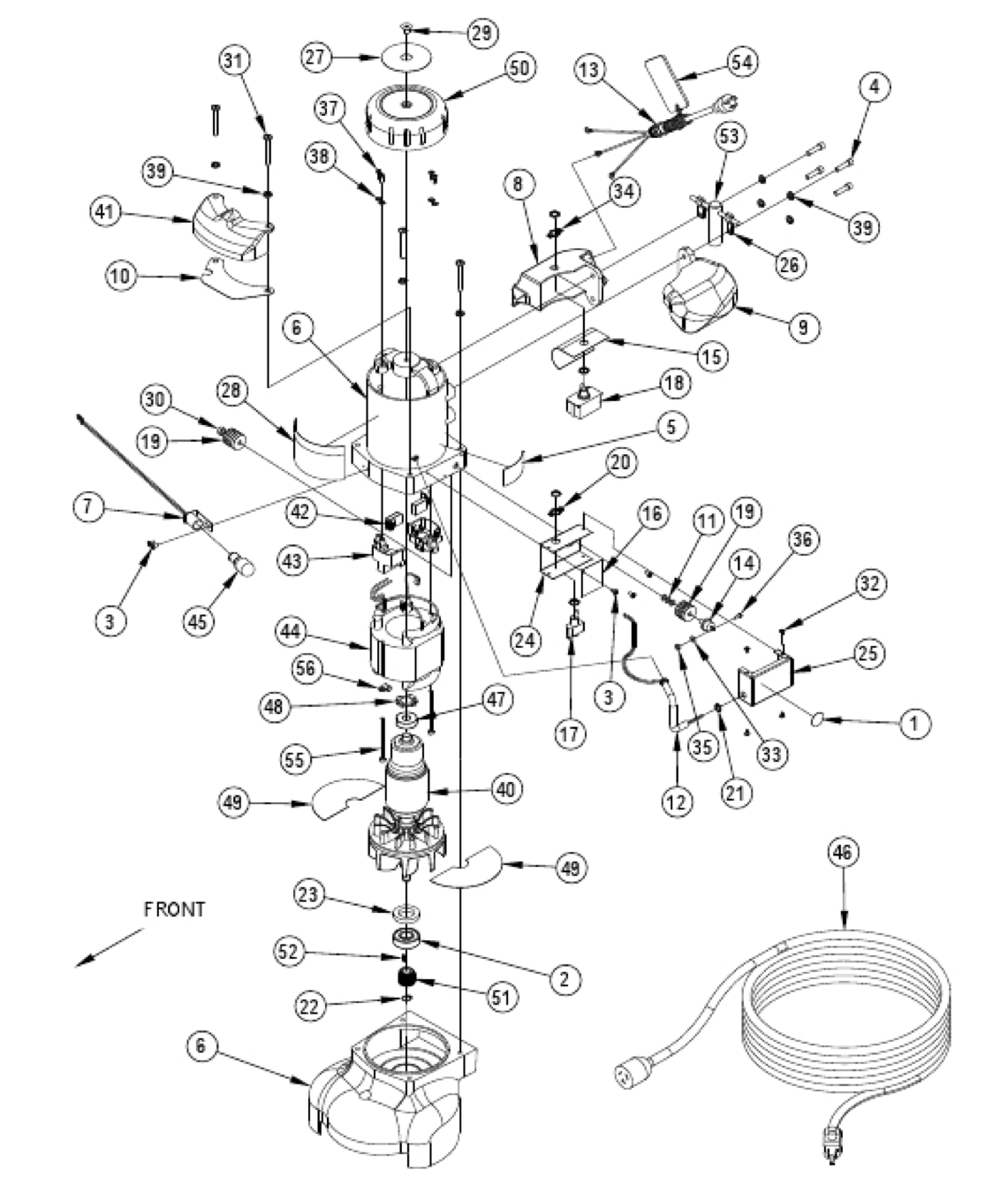

clarke-b2-upper-assembly



ItemParts NumberQTYDescription ItemParts NumberQTYDescription ItemParts NumberQTYDescription
11651061LABEL-CITY OF LA APPROVAL 1948800A12WASHERINSULATINGB-2 EDGER 4122113A1COVER-LIGHT
29025501BEARING BALL-6203 2050431A1PLATESWITCHHI-LOB-2 EDGER 4240583A2BRUSHCARBONTERMINATED
39620655SCREW 8-32 X 1/4 PN ST PH 2154813A4RING-HOG 4340717A2HOLDERBRUSH B-2 EDGER
49624544SCR 1/4 -20X1 SC ST CAP 2257701A1RING-RETAINING 4440718B1FIELD, 115V, B2, GS
5563802161DECAL POWER TOOL CAUTIONARY MA 2358113A1SEALOIL-0.984 X 1.575 X 0.276 4440719B1FIELD, 240V, B2, GS
615708B1HOUSING ASM. GEAR B-2 2460727B1BRACKET SWITCH B-2 EDGER 4540920A1LIGHT BULB RUGGED EDGERS 115V
615720A1HOUSING ASMGEAR UK B-2 2562614B1COVER SWITCH BRACKETB-2 EDGE 45AS010200 LAMP, 120V, LED, DC, BAYONET
718403A1SOCKET ASSY-LIGHT 2664601A2HOLDER-WRENCH 459111161LAMPCLEAR250V 10WBAYONETB-
824302A1HANDLE-RIGHT HAND 27AS0144001NAMEPLATE, AMERICAN SANDERS, B-2 4642234A1CORD SET SUPER 7E
924303A1HANDLE-LEFT HAND 2873285A1LABEL-WARNING 4642182A1CORD ASM POWER SUPPLYSUPER 7
1038104A1SEAL-LIGHT 2980081A1SCREW 5/16-24 X 1/2 4640007A1CORDSET 50FT W/AU1-10P
1141001A3BUSHING-INSULATING 3081303A1NUT HEX JAM 1/4-28 4751126A1BEARING-BALLDBL SEAL 6201
1241918A1CORD-INTERCONNECTING 3185333A4SCR 1/4 -20X2 PN ST MACH 4858602A1SPRING-BEARING
1341919A1CORD POWER 14-3 15 115V 3285411A4SCREW 6-20X1/4 PAN TYPE AB 4960800A2BAFFLE-HALF
1341920A1CORD POWER 14-3 14 230V 7 3387201A1WASHER 6 INT TOOTH LOCK 5062003A1CAP-MOTOR HOUSING
1442400A1DIODE-SILICON 346463021SWITCH PLATE 5163701A1GEAR-PINION L.H.
1546710A1SHIELD-INSULATING 359201121NUTHX 6-32 5265302A1KEY-WOODRUFFSPECIAL
1646711A1SHIELD-INSULATOR 369623301SCREW 6-32 X 3/8 PAN HD 5368705A1WRENCH-T-HANDLE1/2 IN
1747320A1SWITCHTOGGLE 379627274SCREW 8-32X 1/2 PN ST TP23 PH 5470175A1TAG WARNING ENG-SPN
 49301A1WIRE-PROCESSED14 GA BLACK 389806214WASHER 8 EXT. TOOTH PLTD 5586117A2SCREW 10-24 X 3 SOCKET HEAD
 49302A1WIRE-PROCESSED14 GA BLACK 399806578WASHER LOCK 1/4 STD 5698464A1H027 1/4 NYLON TUBING CLAMP
1847322A1SWITCH TOGGLE ON/OFF 7 B-2 4010111B1ARMATURE & FAN, 115V, B2, GS
