To purchase parts for the CE-7 Pro edger (Motor Housing):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

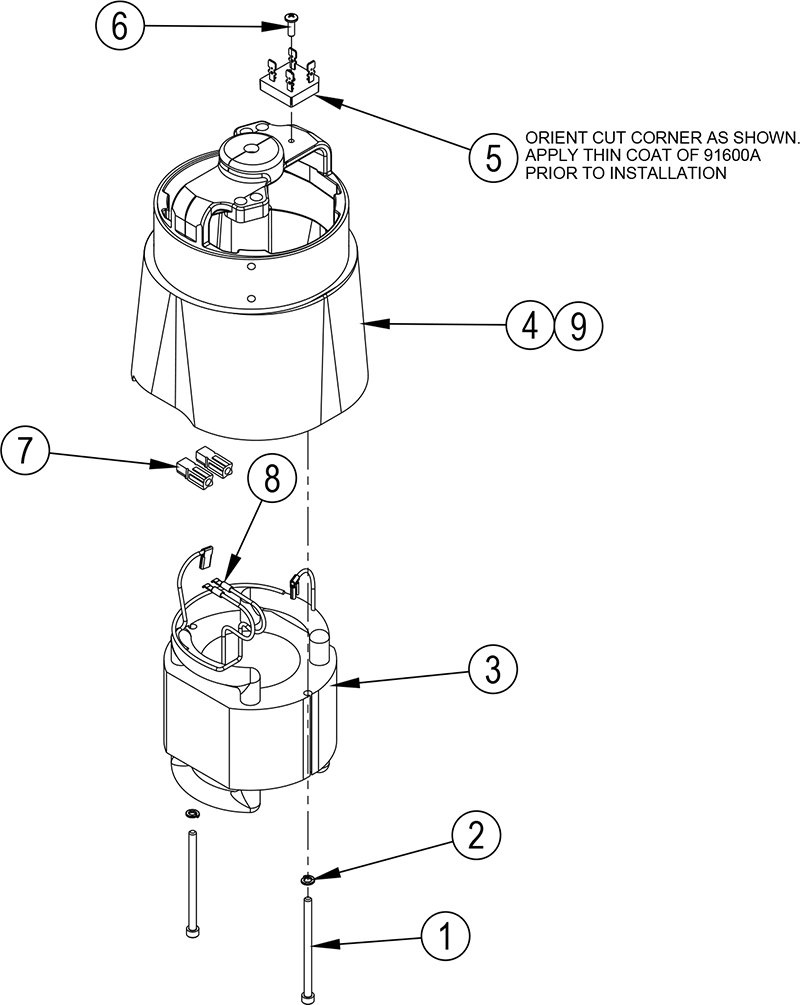

CE7 Motor Housing

ItemPart NumberQtyDescription
186117A2Screw, 10-24X3 SHMS
29806502Washer, #10 Lock
340718A1Field 115V
3B40719A1Field 230V (07220A)
429911A1Motor Housing, Polished (07170A, 07176A)
59122871Rectifier, Full Wave 50A 600V (07170A, 07176A)
69620271Screw, 8-32X1/2 PH (07170A, 07176A)
743401A2Housing, Connector
841809A2Contact, Housing Connector
929914A1Motor Housing, Charcoal Grey (07175A, 07180A)
