To purchase parts for the CE-7 Pro edger (Handle Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

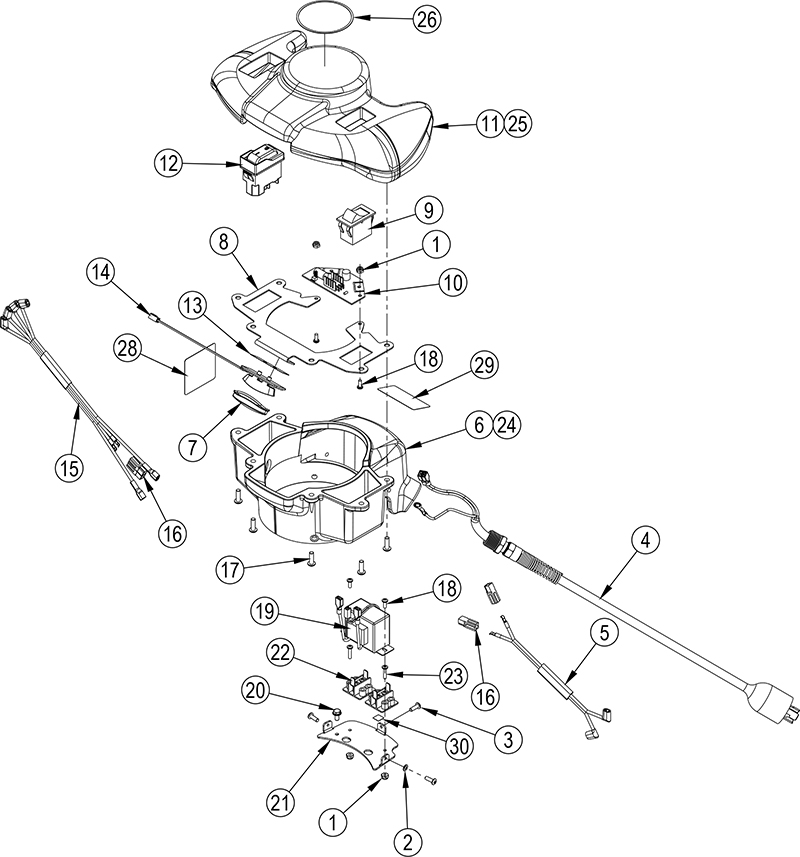

CE7 120V Handle Assembly

ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
19200564Nut, 6-32 E.S.N.A. Nylock (qty of 2 on 07175A & 07180A)1643401A4Housing Connector (qty of 2 on 07175A & 07180A)
29806211Washer, Ext. Tooth Lock1780324A6Screw, M5-.8X16 Btn Hd
39627273Screw, 8-32X1/21885313C4Screw, PHMS 6-32X3/8 (07170A, 07176A)
440943A1Cord, Adapter1940946A1Transformer Asm. 10:1 (07170A, 07176A)
511344A1Speed Select, Wire Asm. (07170A, 07176A)2085833A110-32X3/8 HW Type 23
629912A1Handle, Lower Polished (07170A, 07176A)2161855A1Plate, Support
739871A1Lens, Transparent Polycarbonate2241079A2Terminal Junction 1/4”X2 Tabs (07175A, 07180A)
861856A1Plate, Switch239627382Screw, 6-32X5/8” P.H. (07175A, 07180A)
947365A1Switch, Rocker (07170A, 07176A)2429913A1Handle, Lower Charcoal, Grey (07175A, 07180A)
1040947A1LED Power Regulator (07170A, 07176A)2539868A1Handle (07175A, 07180A)
1129915A1Handle, Polished (07170A, 07176A)2671468A1Label, CAS
1240948A1Switch, 16A, 115V 60 Hz Coil2871468A1Insulation 2.10 Sq. X .015
1340265A1Tape, Thermally Conductive (07170A, 07176A)29563802161Decal Power Tool Cautionary Marking
1440945A1LED Board and Wiring Asm. (07170A, 07176A)3077094A1Label Ground Symbol
1511343A1Control Switch Wire, Asm.
