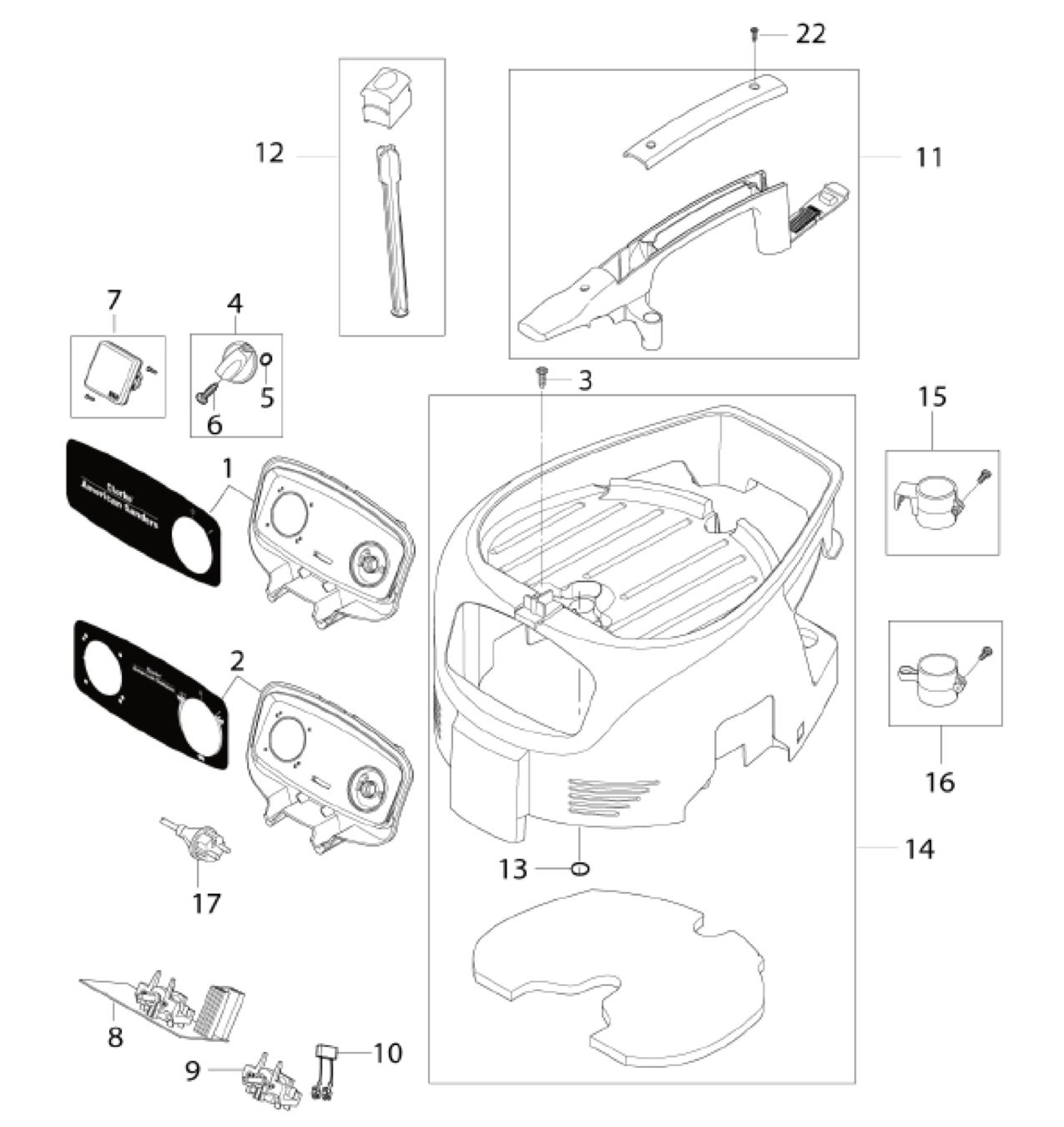

To purchase parts for the CAV 8 Vacuum (Top Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | |
1 | 107400503 | 1 | SWITCHBOX CAV BASIC | 11 | 107400062 | 1 | HANDLE-ATTIX 30/50 PC | |
2 | 107400505 | 1 | SWITCHBOX CAV XC | 11 | 302004050 | 1 | HANDLE-ATTIX 30/50 XC | |
3 | 302004029 | 1 | SCREW 5X18 | 12 | 107400502 | 1 | BUTTON KIT | |
4 | 909100231 | 1 | KNOB CONTROL SWITCH 302000612 | 13 | 302004061 | 1 | O-RING 25X2 NBR 70 | |
5 | 9868 | 1 | O-RING 10X25 | 14 | 107400061 | 1 | COVER-BLACK ATTIX 50XC | |
6 | 32526 | 1 | SHEET METAL SCREW | 14 | 302004046 | 1 | COVER-BLACK ATTIX 30/50 PC | |
7 | 302004338 | 1 | SOCKET 15A/125V US/CSA | 15 | 302004027 | 1 | TUBE HOOK-ATTIX 30/50 | |
8 | 107400261 | 1 | PCB-ATTIX 50 XC | 16 | 107400064 | 1 | TUBE SNAP-ATTIX 30/50 | |
8 | 107400470 | 1 | AUTO ON-OFF ELEC PC 100-120VAUTO ON-OFF ELECTRONIC PC | 17 | 302000882 | 1 | POWER CORD ATTIX 30/50 | |
9 | 302004035 | 1 | SWITCH-ROTARY ATTIX 30 STD****USE 107413448**** | 22 | 302004032 | 1 | SCREW 3.5X18 | |
10 | 48338 | 1 | ANTI-INTERFERENCE CAPACITOR |
