To purchase parts for the CAV 8 Vacuum (Tank Assembly):

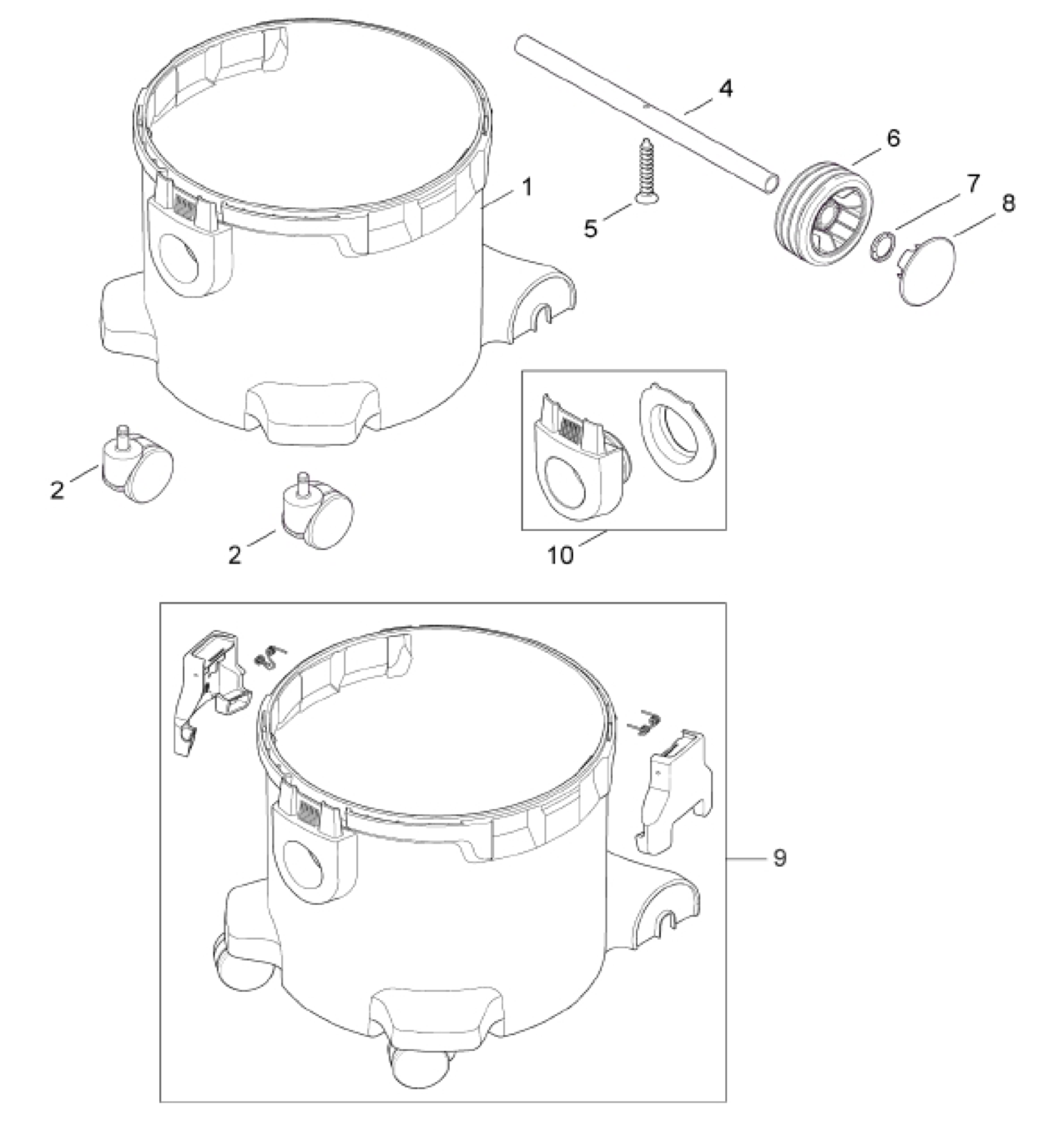

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description |
| 1 | 1 | CONTAINER W.FITTING CAV8 | |
| 2 | 46298 | 2 | CASTER SQ STYLE |
| 4 | 302004022 | 1 | AXLE-ATTIX 30/50 |
| 5 | 107400063 | 1 | SCREW 5X35 |
| 6 | 302000465 | 2 | WHEEL |
| 7 | 47302 | 2 | PUSH NUT SC |
| 8 | 107400116 | 2 | WASHER |
| 9 | 107400506 | 1 | CONTAINER CAV 8 |
| 10 | 107402742 | 1 | INLET - KIT FOR ATTIX 30/50 |
