To purchase parts for the CAV 8 Vacuum (Filter Assembly):

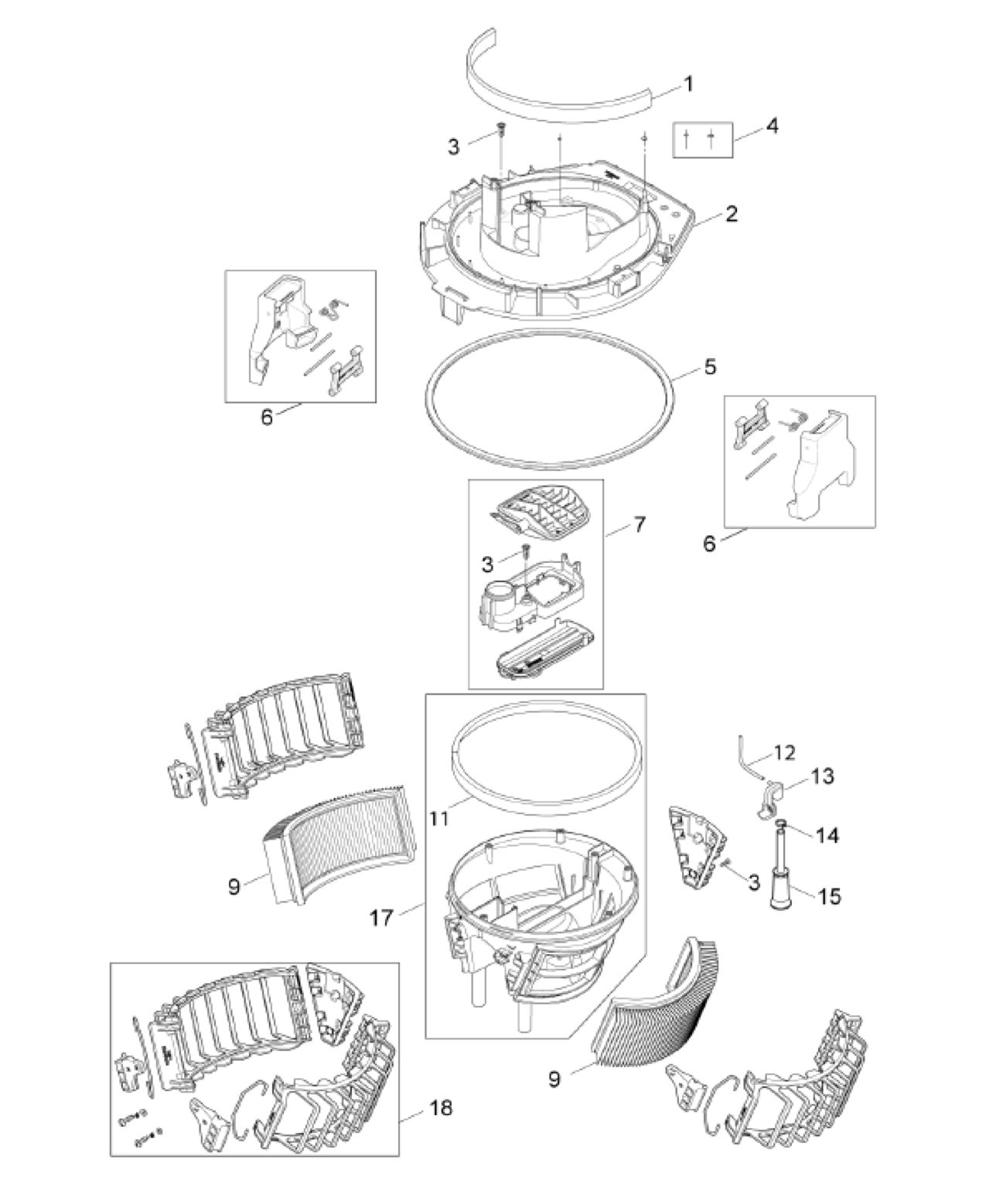

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | |
1 | 302004010 | 1 | SOUND SUPP-ATTIX 30/50 | 9 | 302002842 | 2 | MAIN FILTER XC ATTIX 30/50 (SET OF 2) | |
2 | 107400300 | 1 | BASEPLATE XC | 11 | 107400283 | 1 | SEAL-ATTIX 50 XC | |
3 | 302004029 | 9 | SCREW 5X18 | 12 | 107400855 | 1 | HOSE D3X1.5 TURBINE SIDE XC | |
4 | 107400274 | 1 | O-RING XC KIT | 13 | 107400310 | 1 | MOUNT FOR WATERLEVEL CONTROL | |
5 | 107400056 | 1 | GASKET FOR CONTAINER | 14 | 107400285 | 1 | BAND CLAMP FITTING | |
5 | 302004008 | 1 | GASKET-CONTAINER ATTIX 30/50 | 15 | 107400303 | 1 | HOSE D42X155 FILL LEV. SHUTOFF | |
6 | 107400301 | 2 | CLAMP-CONTAINER ATTIX 30/50 | 17 | 107400302 | 1 | FILTERBRACKET XC | |
7 | 107400277 | 1 | FLAP KIT-ATTIX 50 XC | 18 | 107402255 | 1 | FILTER BRACKET PLATE XC |
