To purchase parts for the CAV 50 Vacuum (Tank Assembly):

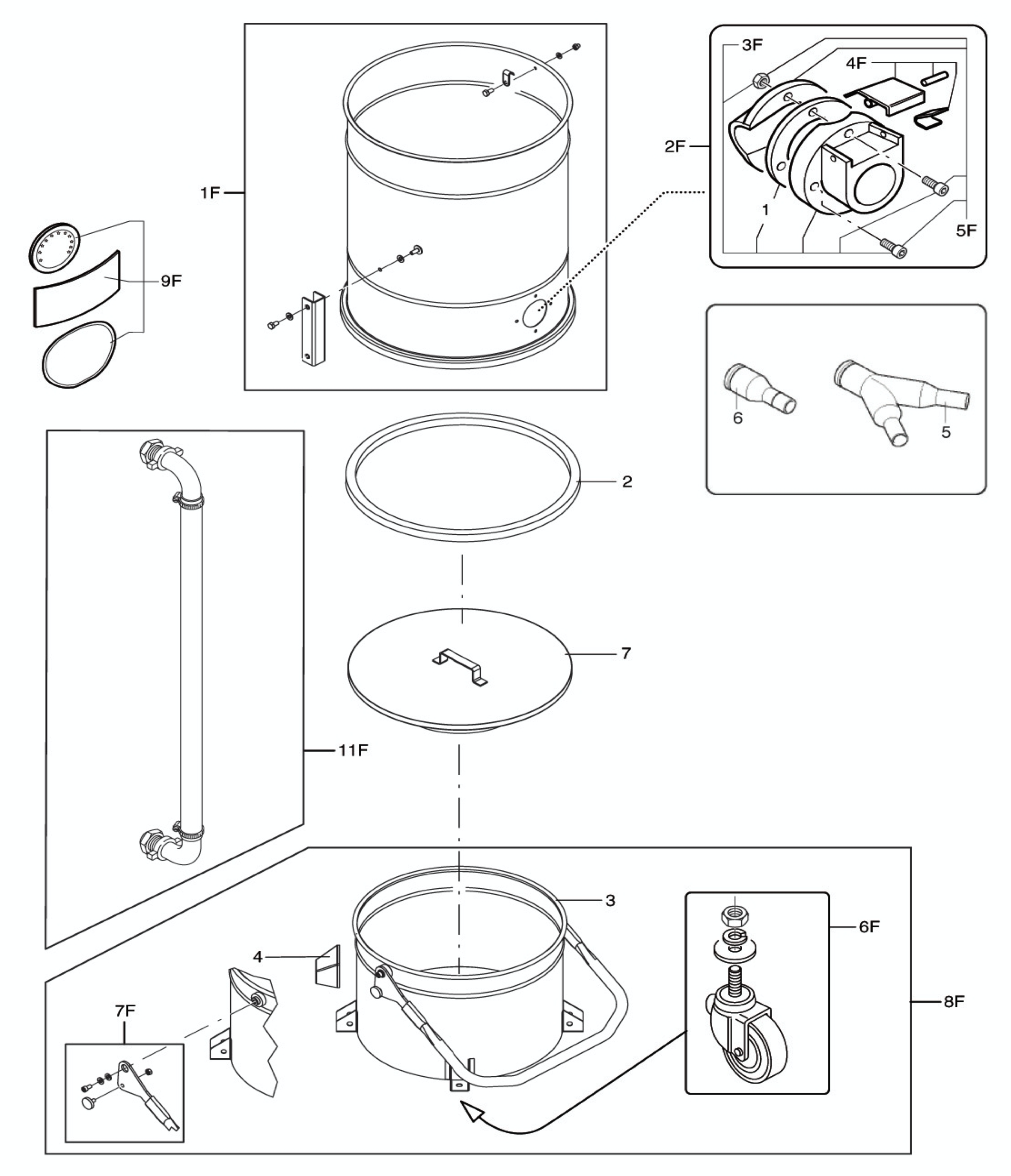

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | |
1 | Z817006 | 1 | SEAL | 3F | 40000867 | 1 | D70 INLET KIT | |
2 | 40000762 | 1 | SEAL | 4F | 40000345 | 1 | KIT PUSHBUTTON FOR INLET D70 | |
3 | 4083000547 | 1 | CONTAINER L100 PBS | 5F | 40000395 | 1 | KIT DEFLECTOR D70 | |
3 | 4083000544 | 1 | CONTAINER L50 PBS | 6F | 40000419 | 1 | KIT CASTORS FOR CONTAINER | |
4 | Z817021 | 4 | BUMPER | 7F | 40000866 | 1 | HANDLE KIT L50 | |
5 | Z722064 | 1 | Y CONNECTOR | 7F | 40000879 | 1 | HANLDE KIT L100 | |
6 | Z722001 | 1 | REDUCER | 8F | 4083000548 | 1 | COMPL. CONTAINER L100 PBS | |
7 | Z831221 | 1 | GRID | 8F | 4083000545 | 1 | COMPL. CONTAINER L50 PBS | |
1F | 40000934 | 1 | PBS FILTER CHAMBER KIT | 9F | 4089100021 | 1 | STICKER KIT | |
2F | 40000868 | 1 | D70 INLET FULL KIT | 11F | Z560272 | 1 | KIT TUBE LEVEL CHECK |
