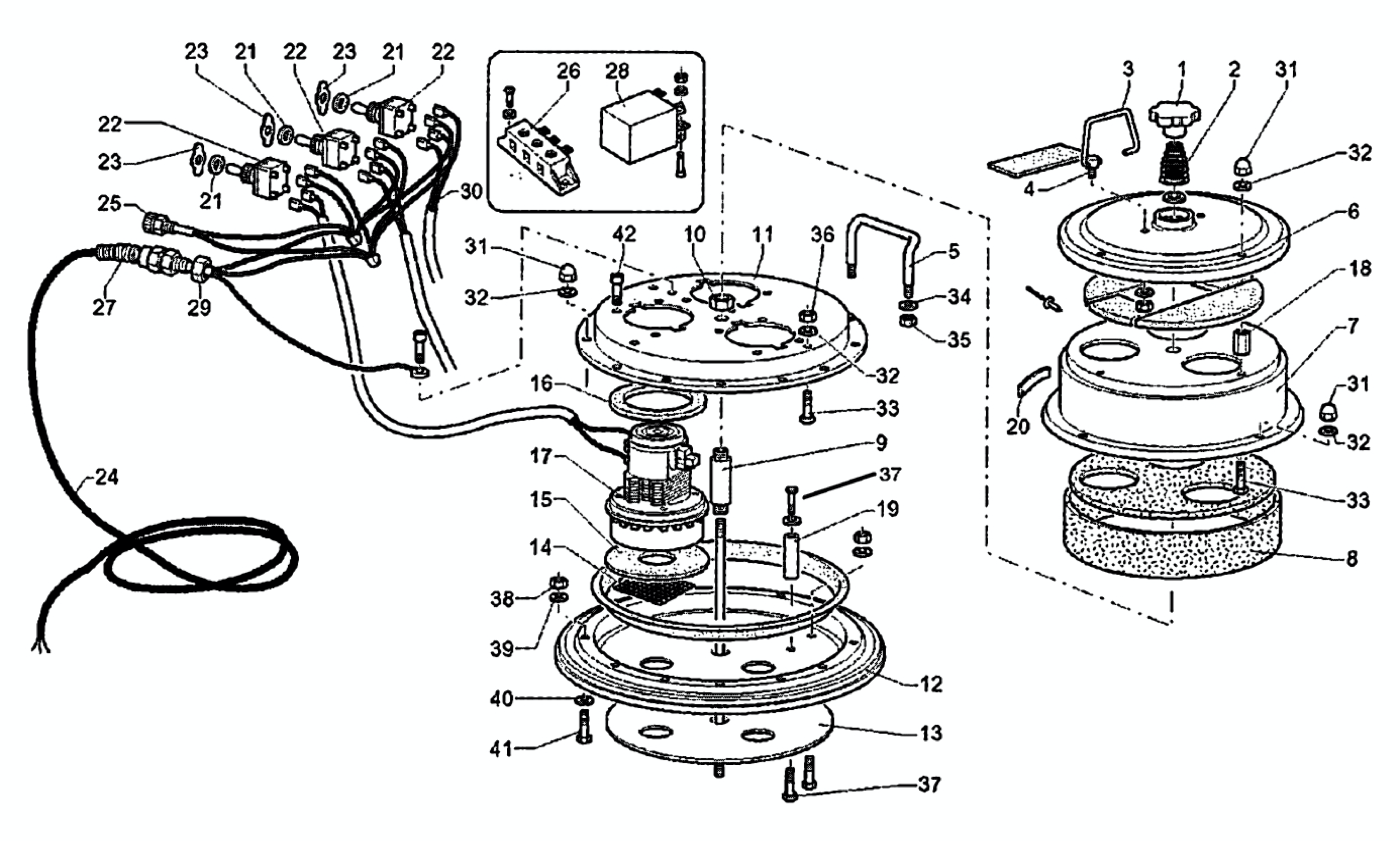

| Item | Part Number | QTY | Description | | Item | Part Number | QTY | Description | | Item | Part Number | QTY | Description |
| 1 | 840027 | 1 | KNOB PLUNGER CAV 16 | | 16 | 817003 | 3 | SEAL MOTOR TOP CAV 16 | | 31 | | 20 | CAP NUT, M5-.8 |
| 2 | 814079 | 1 | SPRING PLUNGER CAV 16 | | 17 | 854006 | 3 | VACUUM MOTOR CAV 26 | | 32 | 980603 | 20 | WASHER LK 10 EXT TOOTHPLTD |
| 3 | 818206 | 1 | KEEPER PLUNGER CAV 16 | | 18 | 814030 | 4 | SPACER CAV 16 | | 33 | | 4 | SCREW, M5-.8X20 HHC |
| 4 | 814061 | 2 | KEEPER PIVOT PIN CAV 16 | | 19 | 814032 | 3 | SPACER CAV 16 | | 34 | 980646 | 4 | WASHER 1/4 SAE FLAT PLTD |
| 5 | 818083 | 2 | HANDLE CAV 16 | | 20 | | 1 | LABEL | | 35 | 924003 | 4 | NUT-M6 X 1.0 HEX |
| 6 | 54775A | 1 | COVER VENT CAV 16 | | 21 | 980407 | 3 | WASHERLOCKINTERNAL TOOTH | | 36 | 80169A | 4 | NUT M5-0.8 HEX |
| 7 | 8160679005 | 1 | MOTOR COVER CAV 26 | | 22 | 839000 | 3 | SWITCH 15A/250V TOGGLE | | 37 | 964009 | 8 | SCR M 6.0X1.0 X 10 PN*ST |
| 8 | 817229 | 1 | SOUNDPROOFING KIT CAV 16/26 | | 23 | | 3 | PLATE | | 38 | 80169A | 4 | NUT M5-0.8 HEX |
| 9 | 814051 | 1 | BUSHING CAV 16 | | 24 | 8391160 | 1 | CABLE ELECTRICAL CAV 26 | | 39 | 170879 | 12 | Washer 3/16 Plated |
| 10 | 814052 | 2 | NUT CAGE FIXING | | 25 | 839051 | 1 | INDICATOR LAMP 120V-NEON ORG | | 40 | 980982 | 20 | WASHER 10 SAE FLAT PLTD |
| 11 | 816009 | 1 | MOTOR LOCATOR CAV 26 | | 26 | 839528 | 1 | TERMINAL STRIP CAV 16 | | 41 | 80249A | 12 | SCREWM5-.8X12MM HEX HEAD S.S. |
| 12 | 816004 | 1 | MOTOR PLATFORM CAV 26 | | 27 | 58013A | 1 | STRAIN RELIEF EXT-771 | | 42 | | 4 | SCREW |
| 13 | 815032 | 1 | FLANGE CAV 16 | | 28 | 839533 | 1 | SUPRESSOR ELECTRICAL NOISE | | | 51401A | Ref | BRUSH MECH. PK.OF 2 685202 |
| 14 | 813074 | 3 | SCREEN CAV 16 | | 29 | 170686 | 1 | NUTLK FOR 1/2 CONDUIT | | | | | |
| 15 | 817002 | 3 | SEAL MOTOR BOTTOM CAV 16 | | 30 | 839576 | 1 | WIRING ASM CAV 16 | | | | | |
