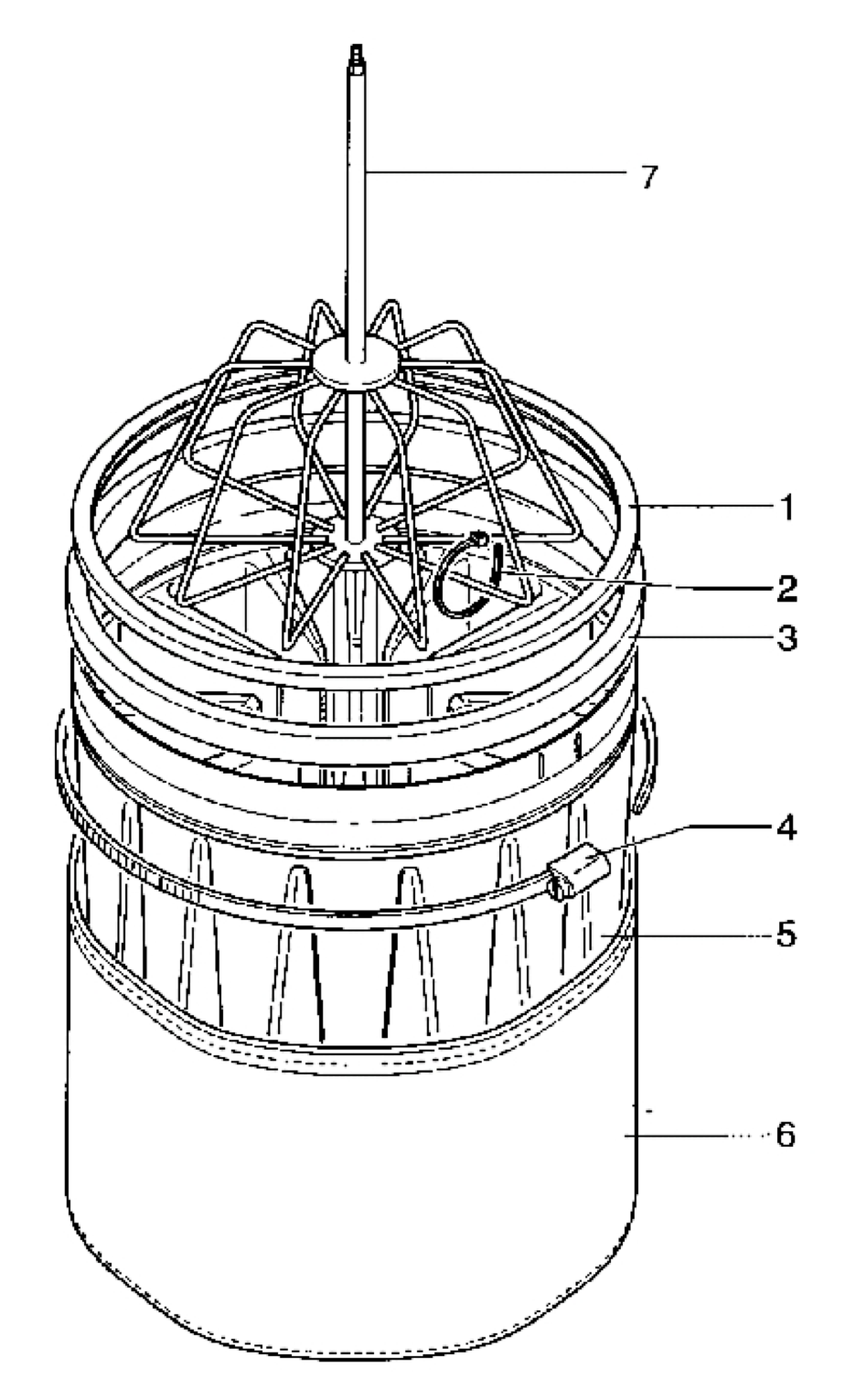

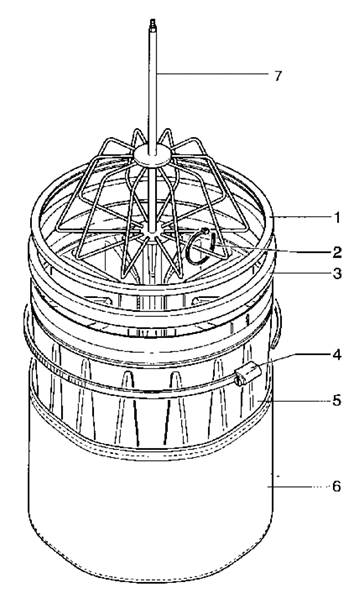

To purchase parts for the CAV 26 Vacuum (Filter Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description |
| 814081 | 1 | SPRING CAGE CAV 16 | |
| 1 | 817026 | 1 | SEAL FILTER CAV 26 |
| 2 | 58901A | 8 | TIE-WIRE |
| 3 | 815003 | 1 | RING CAV 16 |
| 4 | 818079 | 1 | CLAMP CAV 16 |
| 5 | 817714 | 1 | FILTER PRIMARY CAV 16 |
| 6 | 817749 | 1 | FILTER LINER POLYESTER CAV 26 |
| 7 | 833093 | 1 | CAGE CAV 16 |
