To purchase parts for the CAV 2.2 Vacuum (Harness Assembly):

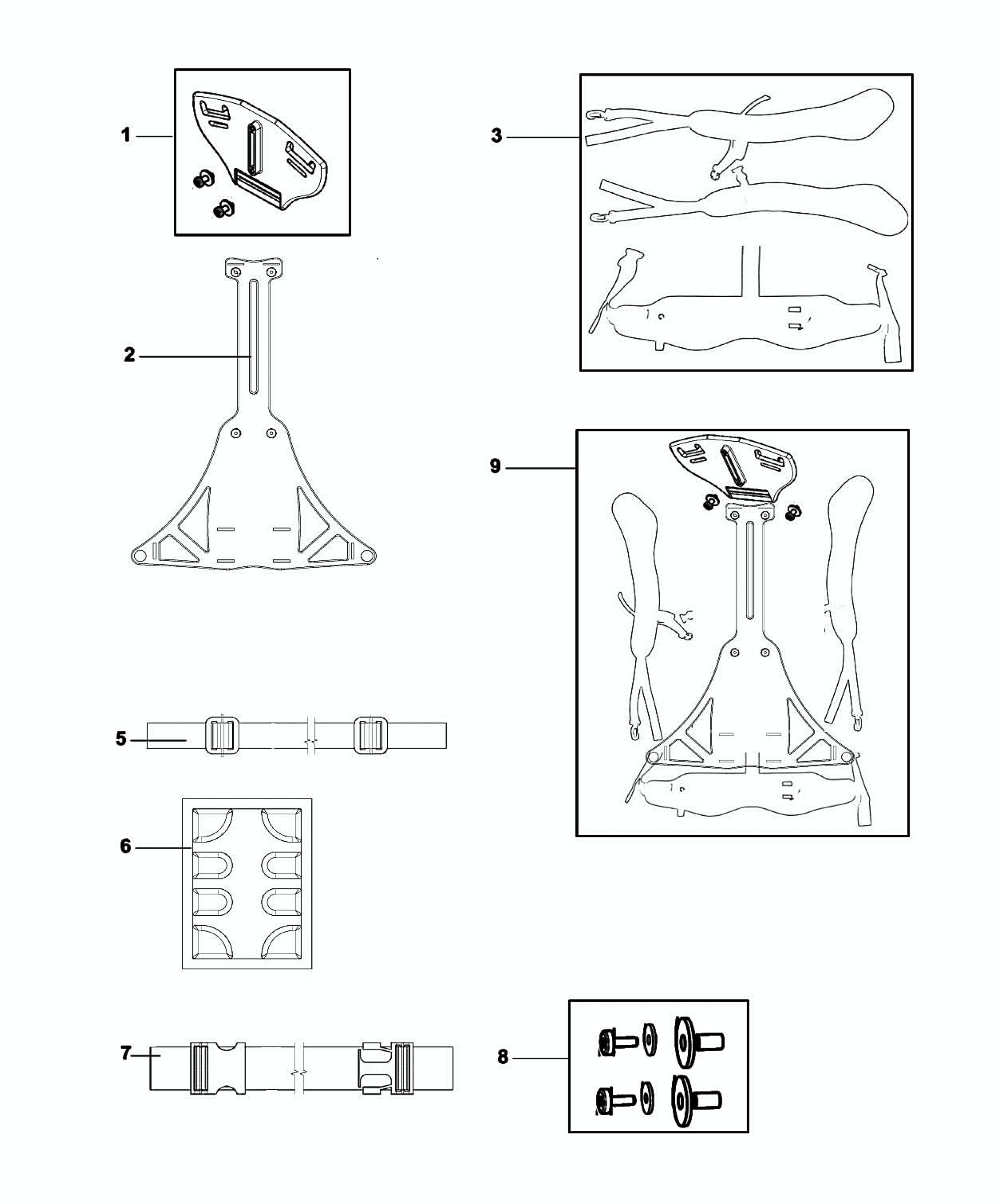

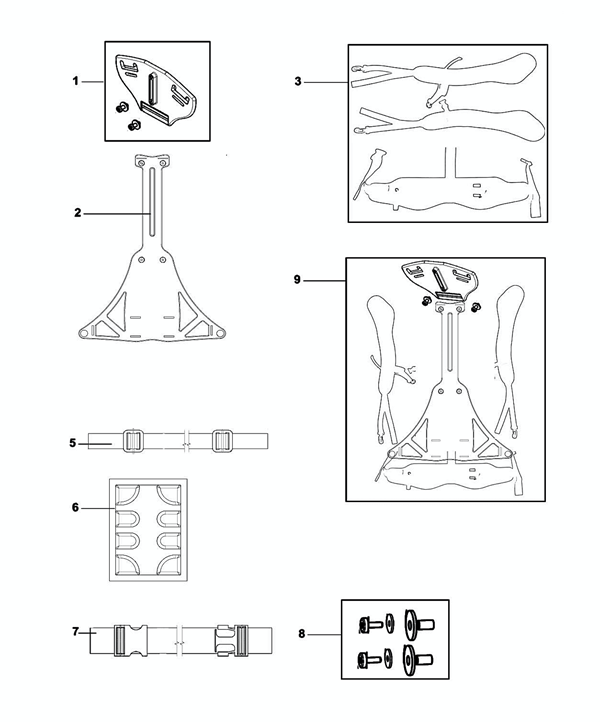

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description |
| 1 | 1471092500 | 1 | ADJUSTING PLATE |
| 2 | 1471091500 | 1 | HARNESS SUPPORT |
| 3 | 1471246500 | 1 | HARNESS PREMIUM |
| 5 | 1471247500 | 1 | LIFTING STRAP |
| 6 | 1471248500 | 1 | PADDING BACK PLATE |
| 7 | 1471249500 | 1 | EXTENSION BELT |
| 8 | 1471246600 | 1 | SCREW KIT |
| 9 | 1471246510 | 1 | HARNESS PREMIUM CPL |
