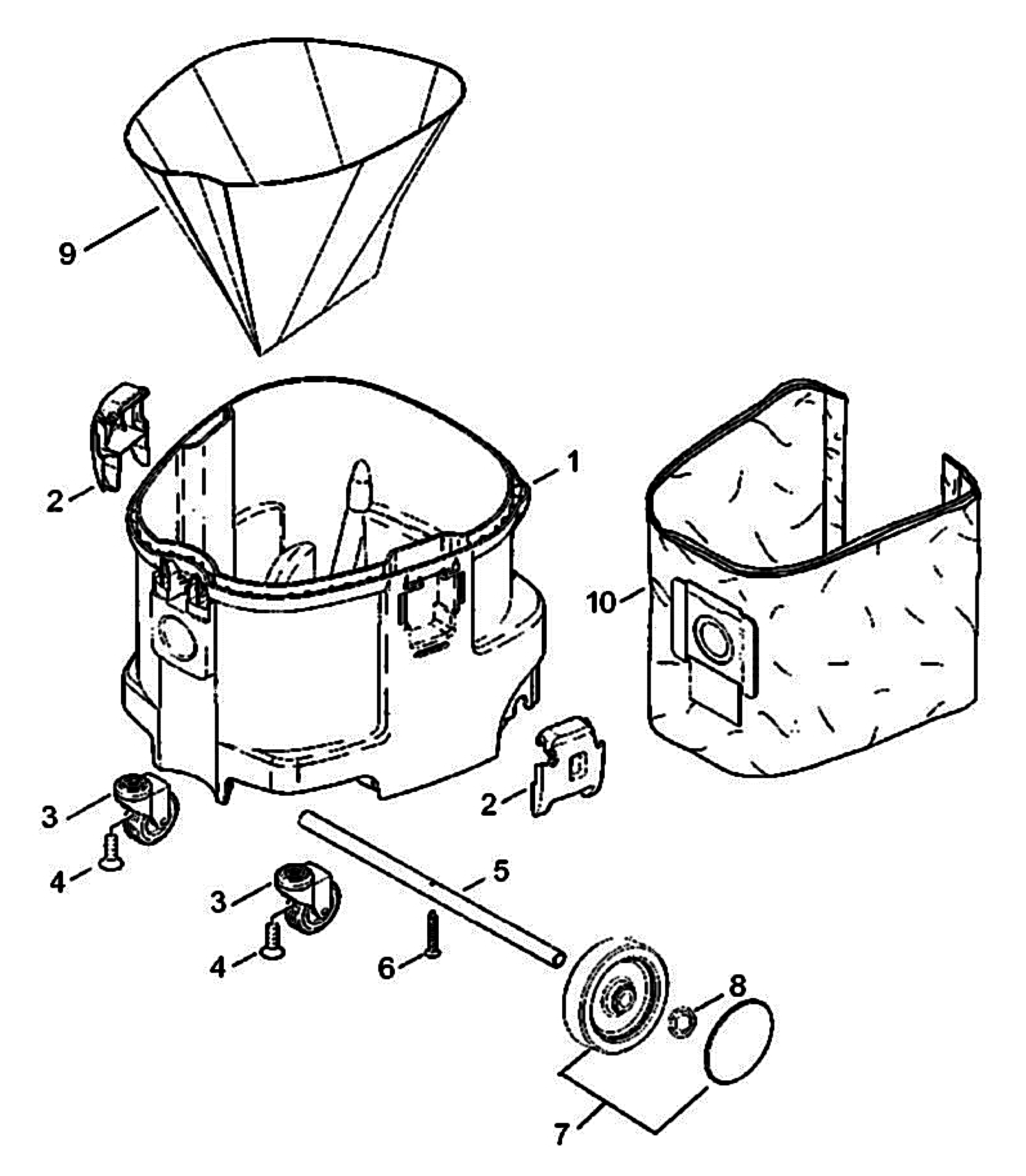

To purchase parts for the CAV 12 Vacuum (Tank Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description |
| 1 | 302002528 | 1 | TANK CAV 12 GRAY |
| 2 | 302000349 | 2 | LOCKING CLAMP |
| 3 | 302000682 | 2 | CASTER |
| 4 | 909100164 | 2 | COUNTERSUNK SCREW |
| 5 | 302000636 | 1 | AXLE |
| 6 | 909100085 | 1 | SCREW EJOT- |
| 7 | 30637A | 2 | WHEEL 6 X 1.25 X 20MM |
| 8 | 53857A | 2 | CAP AXLE 20MM DOMED |
| 9 | 53856A | 1 | LINER CAV 12 TANK |
| 10 | 302000527 | 1 | FILTER BAGS 5 PCS ATTIX 12 |
