To purchase parts for the CAV 12 Vacuum (Main Assembly):

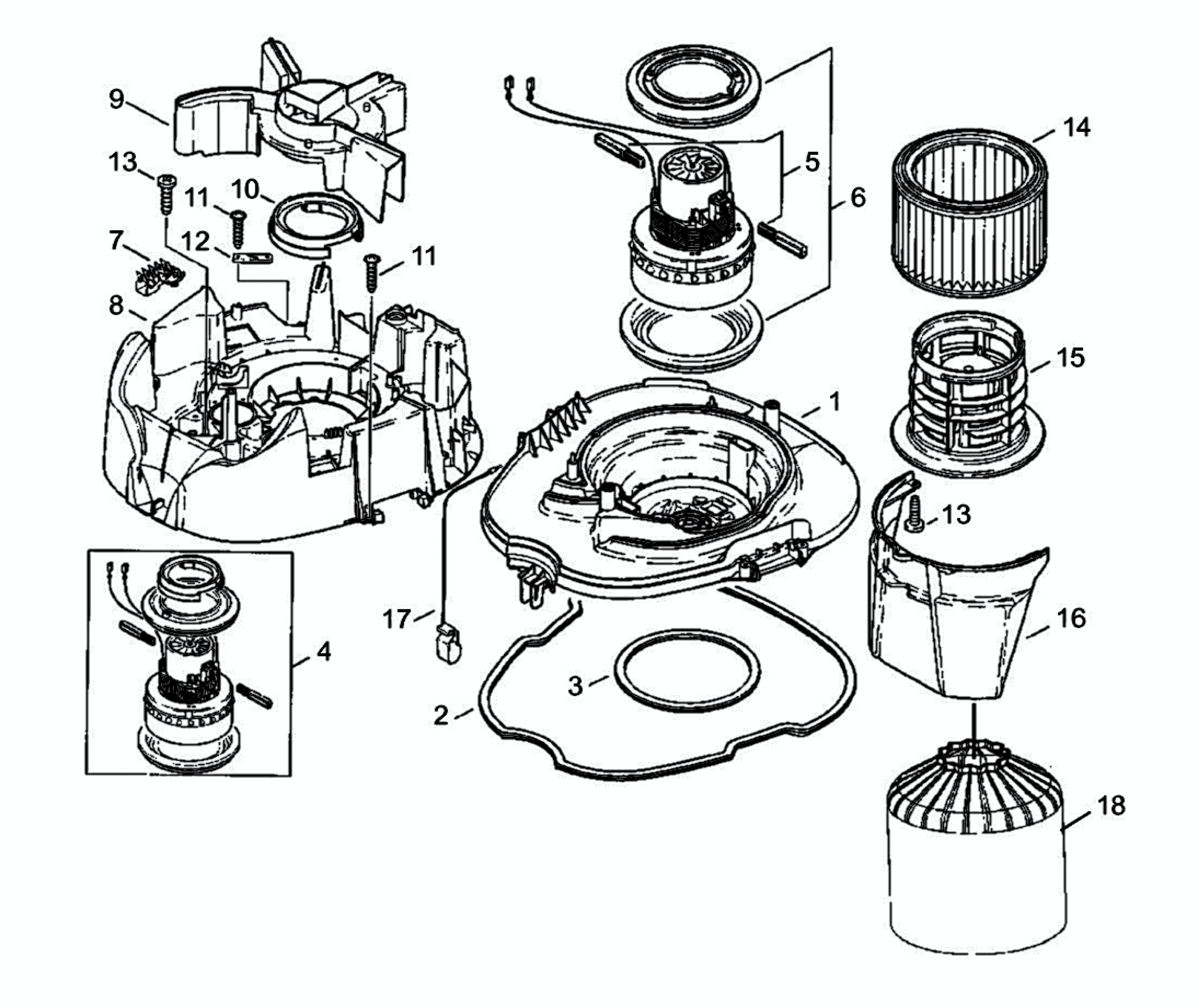

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | |
| 1 | 302000372 | 1 | SUPPORTING PLATE ATTIX 5 | 10 | 47035 | 1 | RUBBER SEAL SQ 10 | |
| 2 | 302000637 | 1 | GASKET FOR CONTAINER | 11 | 11256 | 2 | STEEL SCREW 35X18 | |
| 3 | 302000460 | 1 | GASKET FOR FILTER | 12 | 5697 | 1 | STRAIN RELIEF | |
| 4 | 26785 | 1 | VACUUM MOTOR KIT | 13 | 909100138 | 3 | SCREW 50X20 MP 1912 | |
| 5 | 26774 | 1 | CARBON BRUSHES PAIR NEWSTYLE | 14 | 302000490 | 1 | FILTER ELEMENT WASHABLE | |
| 6 | 28875 | 1 | MOTOR SEAL SQ 10 | 15 | 302000472 | 1 | FILTER SUPPORT CAGE | |
| 7 | 302000755 | 1 | TERMINAL STRIP | 16 | 302000379 | 1 | DEFLECTOR | |
| 8 | 302000371 | 1 | CLAMPING PLATE | 17 | 61174 | 1 | EARTHING CABLE | |
| 9 | 302000373 | 1 | AIR DUCT ATTIX 5 | 18 | 61156112 | 1 | LINER SATEEN FILTER CTV-7****OBSOLETE**** |
