To purchase parts for the AVAC 26 VACUUM (Tank Assembly):

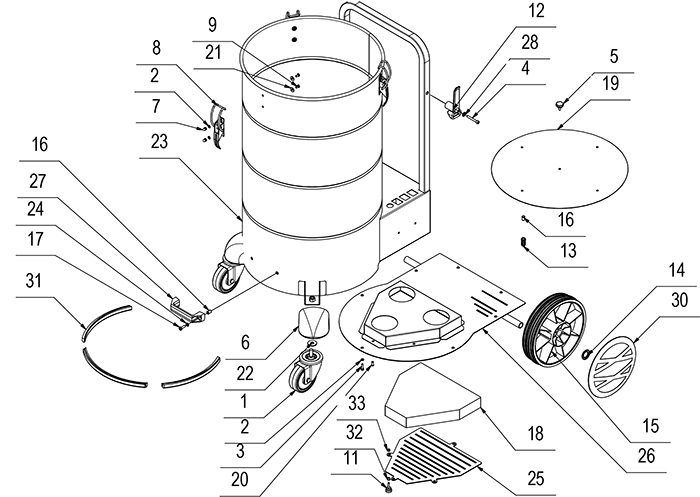

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1 | TMB442309 | 2 | PIVOTING WHEEL D.100 TBF/7 M10X25 RIV. | 19 | TMB442311 | 1 | GRID, SPACER D.450 | |
| 2 | TMB417987 | 13 | WASHER | 20 | TMB417609 | 11 | INSERT | |
| 3 | TMB408855 | 7 | SCREW | 21 | TMB417986 | 6 | WASHER | |
| 4 | TMB408807 | 1 | SCREW | 22 | TMB409194 | 2 | WASHER | |
| 5 | TMB442375 | 1 | KNOB | 23 | TMB225120 | 1 | TANK | |
| 6 | TMB417215 | 2 | PROTECTION CAP | 24 | TMB417993 | 2 | LOCK WASHER | |
| 7 | TMB417262 | 6 | NUT | 25 | TMB225315 | 1 | GRID | |
| 8 | TMB417505 | 3 | HOOK | 26 | TMB225314 | 1 | BOTTOM COVER | |
| 9 | TMB408848 | 6 | SCREW | 27 | TMB225164 | 1 | BLACK HANDLE HOLES D.8.5 | |
| 10 | TMB417486 | 1 | INSULATION, SOUND | 28 | TMB417998 | 1 | LOCK WASHER | |
| 11 | TMB445520 | 4 | KNOB | 29 | TMB410542 | 1 | INSERT | |
| 12 | TMB416543 | 1 | SUPPORT | 30 | TMB417186 | 2 | COVER | |
| 13 | TMB437787 | 5 | CAP | 31 | TMB417909 | 1 | GASKET | |
| 14 | TMB418140 | 2 | STARLOCK D. 20MM | 32 | TMB417286 | 4 | BRASS KNOB BLOCK | |
| 15 | TMB418014 | 2 | WHEEL | 33 | TMB409037 | 4 | NUT | |
| 16 | TMB410545 | 7 | INSERT | * | TMB445522 | 1 | LABEL FILTER CLEANING INSTRUCTION | |
| 17 | TMB408862 | 2 | SCREW | * = not shown | ||||
| 18 | TMB445510 | 1 | SPONGE FILTER Sp.17 | |||||
