To purchase parts for the AVAC 26 VACUUM (Motor Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

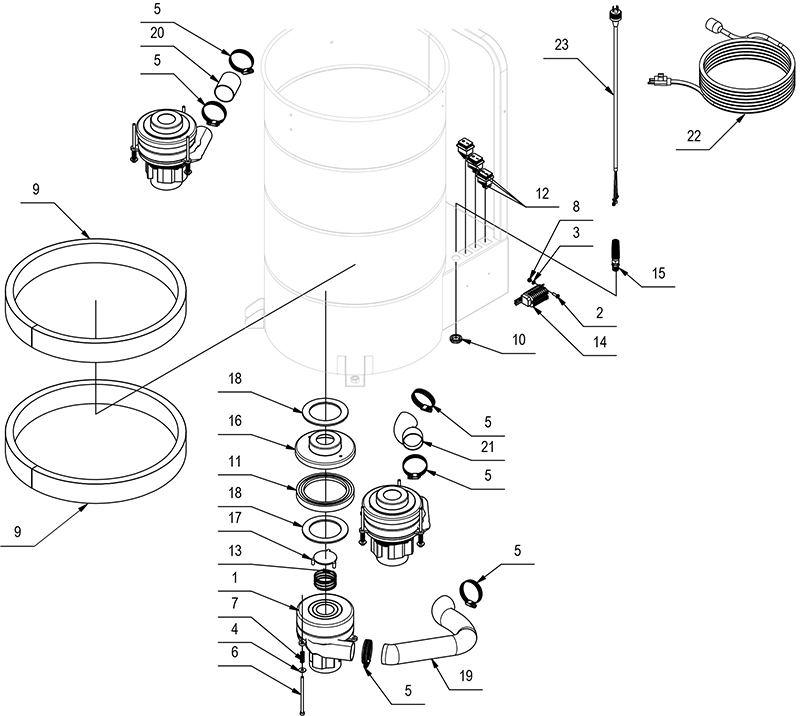

AVAC-26-vacuum-motor-assembly

ItemPart NumberQtyDescription ItemPart NumberQtyDescription
1TMB4483343MOTOR, VAC, 120V, 800W 13TMB4177873SPRING, VALVE
1aTMB417810 MOTOR, VAC, 230V, 1000W 14TMB4177881BLOCK, TERMINAL
2TMB4088542SCREW, M5 X 16MM 15TMB4178261RELIEF, STRAIN, CABLE
3TMB4091502WASHER, M5 X 11MM X 1MM 16TMB4178933PORT, VALVE, VACUUM
4TMB40916010WASHER, M6 X 18MM X 1.5MM 17TMB4182533VALVE, MOTOR, VAC
5TMB4102876CLAMP, 40-60MM 18TMB4218686SEAL, PORT, VALVE
6TMB4166969SCREW, M6 X 110MM 19TMB4224921TUBING, 50MM
7TMB4167259SPRING, COMPRESSION 20TMB4224921TUBING, 50MM
8TMB4167812NUT, LOCK, M5 21TMB4224921TUBING, 50MM
9TMB4174892INSULATION, SOUND 22TMB2252611CORD, POWER, 14/3, 50FT, 120V
10TMB4175231NUT, RELIEF, CABLE 22aTMB446022 CORD, 3X1.5X15M, AUSTRALIAN PLUG
11TMB4175643SEAL, MOTOR, VAC 23TMB4423321CORD, PIGTAIL, INTERCONNECT
12TMB4176223SWITCH, DBL POLE 23aTMB446021 CORD, PIGTAIL INTERCONNECT, AUTRALIAN PLUG
