AVAC 12 Vacuum Motor & Cover Assembly Parts

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

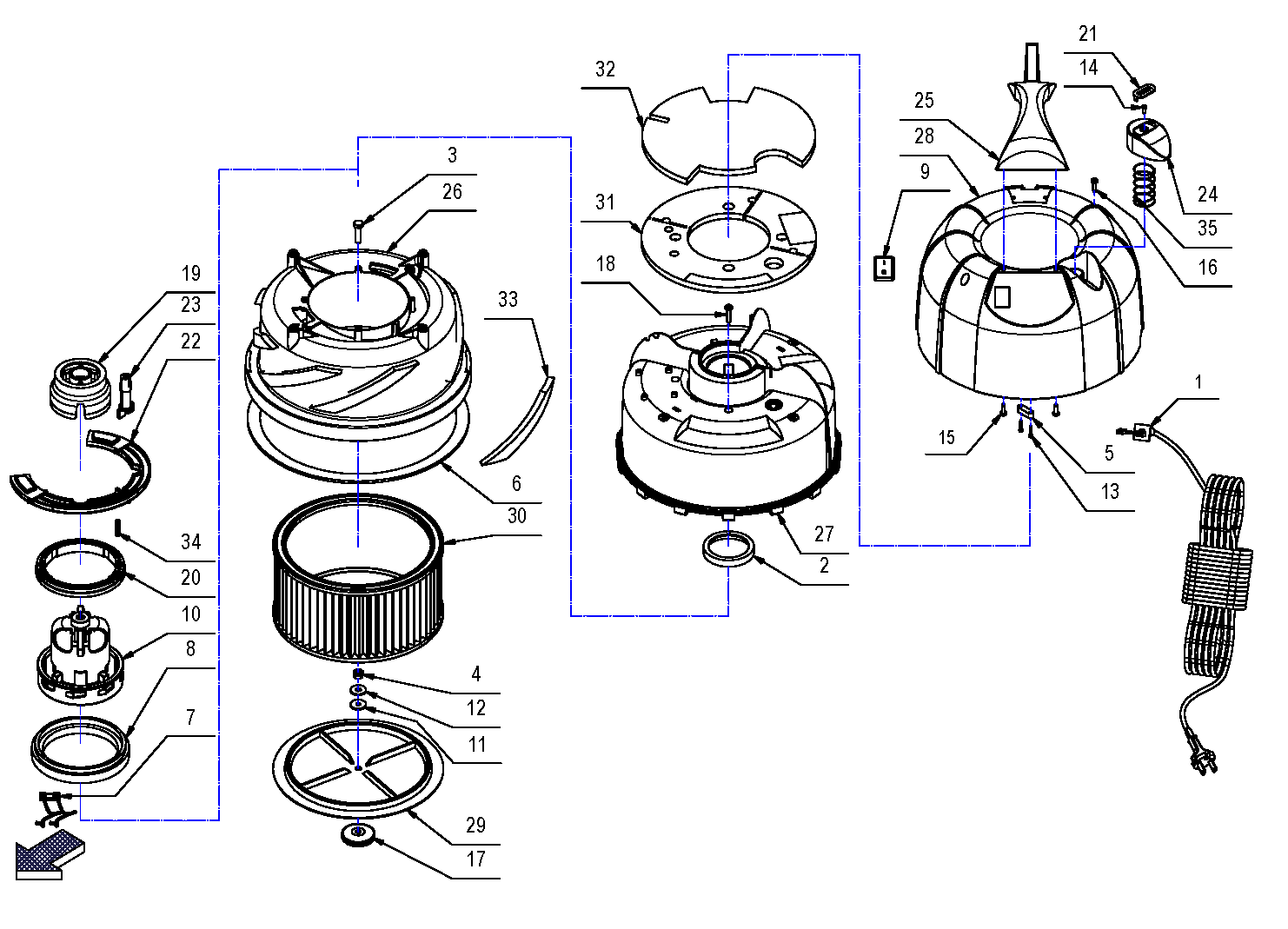

AVac12_Vacuum Motor and Cover Assembly Diagram

Item	Part Number	Description	Qty	Item	Part Number	Description	Qty
1	TMB222605	CORD, 14/2 X 50FT	1	19	TMB428191	COVER, BRUSH, MOTOR	1
2	TMB405946	SEAL, FLOAT	1	20	TMB428192	GASKET, MOTOR	1
3	TMB408677	SCREW, M8 X 30MM	1	21	TMB428193	COVER, SCREW	1
4	TMB409087	NUT, HEX, M8	1	22	TMB428194	SUPPORT, VACUUM	1
5	TMB409765	GRIP, CABLE	1	23	TMB428195	ROD, BUTTON, FILTER	1
6	TMB412463	GASKET, BASE, MOTOR	1	24	TMB428196	BUTTON, FILTER	1
7	TMB416994	WIRING, MOTOR	1	25	TMB428197	HANDLE	1
8	TMB417560	GASKET, MOTOR, VACUUM	1	26	TMB428198	BASE, HEAD	1
9	TMB417622	SWITCH, DBL POLE	1	27	TMB428199	RING, FILTER	1
10	TMB417802	MOTOR, VACUUM, 1100W	1	28	TMB428200	COVER, HEAD	1
11	TMB417996	WASHER, RUBBER, M6	1	29	TMB428202	BOTTOM, FILTER	1
12	TMB418000	WASHER, M8	1	30A	TMB428244	FILTER, CARTRIDGE (STANDARD)	1
13	TMB418269	SCREW, SELF-TAPPING, M2.9 X 19	2	30B	TMB428680	FILTER, CARTRIDGE, HEPA (OPTIONAL)	1
14	TMB418272	SCREW, SELF-TAPPING, M3.5 X 13	1	31	TMB428661	GASKET, SUPPORT, MOTOR	1
15	TMB418277	SCREW, SELF-TAPPING, M4.8 X 16	4	32	TMB428662	GASKET, COVER, HEAD	1
16	TMB418279	SCREW, SELF-TAPPING, M4.8 X 19	4	33	TMB428663	GASKET, BASE, HEAD	6
17	TMB418341	SCREW, THUMB, M8	1	34	TMB430832	SPRING, COMPRESSION, D7	1
18	TMB424884	SCREW, M5 X 30MM	4	35	TMB430854	SPRING, COMPRESSION, D30	1
