To purchase parts for the Sander 1600 (Main Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

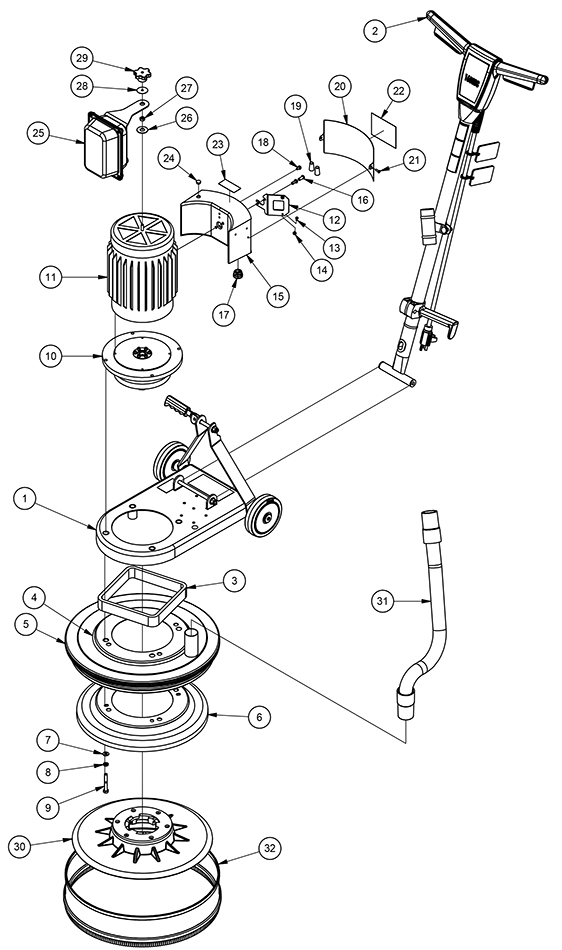

Sander1600 Main Assembly

ITEMPART NUMBERQTYDESCRIPTIONITEMPART NUMBERQTYDESCRIPTION
1AS0297001FRAME, SANDER 1600, ASM.169628222SCR 1/4-20 X 5/8 BT ST SOC
2AS0296001HANDLE, SANDER 1600, ASM.1751523A1BUSHING, STRAIN RELIEF
352368A1SEAL FOAM1885833A1SCREW, MACHINE, 10-32 TYPE 23
410241A1WLDMNT DUST SHIELD191706672CONNECTOR, WIRE NUT, 74B, YELLOW
552359A1BUMPER OUTER SHIELD2062667A1COVER, ENCLOSURE
661832A1SHIELD INNER RS 16DC219627272SCREW, 8-32 X 1/2 PN ST TP23 PH
79806514WASHER 5/16 SAE FLAT2277195A1DECAL, UL WARNING
89806524WASHER, LOCK, 5/162377234A1LABEL, WARNING, HEAVY OBJECT
99623084SCR 5/16-18X2&1/4 HX ST2457165A1PLUG NYLON HOLE 3DS
1050979A1GEARBOX 10 TO 1 SANDER2510252A1LAMP ASSY
1140533A1MOTOR 1.5 HP2687607A1WASHER FLT 1.25X .52 X .06 NYLON
-5024021FM17 CAPACITOR 115V (NOT SHOWN)2781302A1NUT, JAM, HEX, 1/4-20, ZINC
-41311A1CAPACITOR, RUN, 25MFD, 370V (NOT SHOWN)2887625A1WASHER FLT 1.25X.26X.03 NYLON
-AS0074001SWITCH, ELECTRONIC, 125V, SANDER 1600 (NOT SHOWN)2920028A1KNOB LAMP
12AS0175021BRACKET, MOUNTING, START, SWITCH, PLATED3010242A1ASSY PAD DRIVER
1385313C2SCREW 6-32 X 3/8 PAN HD3130408B11.5" X 30" CUFFS BE BLACK
149200562NUT-6X32 ELASTIC STOP3210240A1SKIRT ASSY DUST CONTROL
1522906A1ENCLOSURE
