To purchase parts for the Sander 1600 (Lamp Assembly):

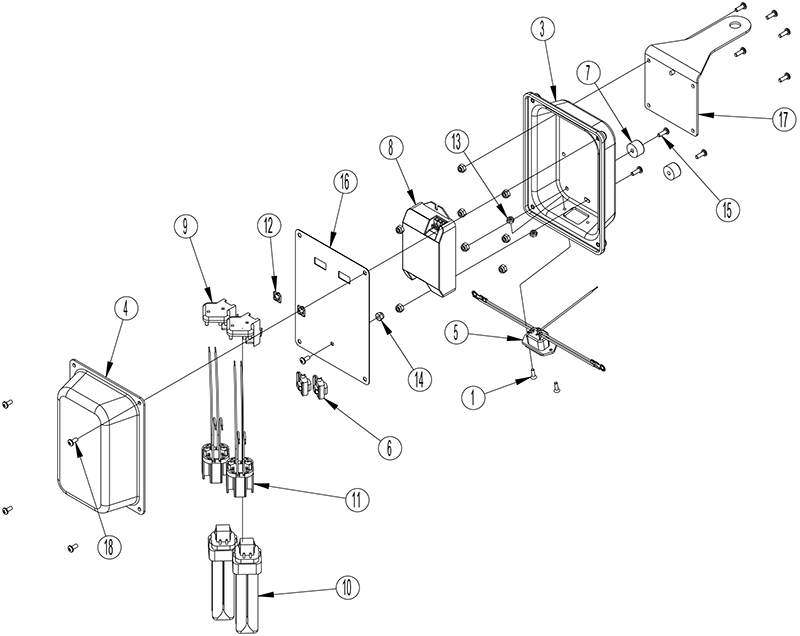

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Qty |
| Item | Part Number | Qty |
| |||
| 10252A | 1 | Lamp Assy | 10 | 52357A | 2 | Lamp 13w Fluorescent | ||||
| 1 | 962974 | 2 | Screw 6-32x1/2 Fh Ph | 11 | 52358A | 2 | Socket Assy | |||
| 3 | 39862A | 1 | Enclosure Lamp | 12 | 52367A | 2 | Grommet | |||
| 4 | 39863A | 1 | Cover Lamp | 13 | 920056 | 2 | Nut, 6-32 E.S.N.A. Nylock | |||
| 5 | 40528A | 1 | C14 Inlet Asm | 14 | 920065 | 9 | Nut, 8-32 E.S.N.A | |||
| 6 | 40783A | 2 | Tap Splice 22-16 Awg | 15 | 962027 | 8 | Screw, 8-32 X 1/2 P.H. | |||
| 7 | 51612A | 2 | Bumper Reccessed Nap Sac | 16 | 60550A | 1 | Reflector Lamp | |||
| 8 | 52350B | 1 | Ballast 120-277v 13w | 17 | 60551A | 1 | Bracket, Lamp | |||
| 9 | 52356A | 2 | Adaptor Lamp | 18 | 85303A | 5 | Screw 8-32 X.375 | |||
