To purchase parts for the Sander 1600 (Handle Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

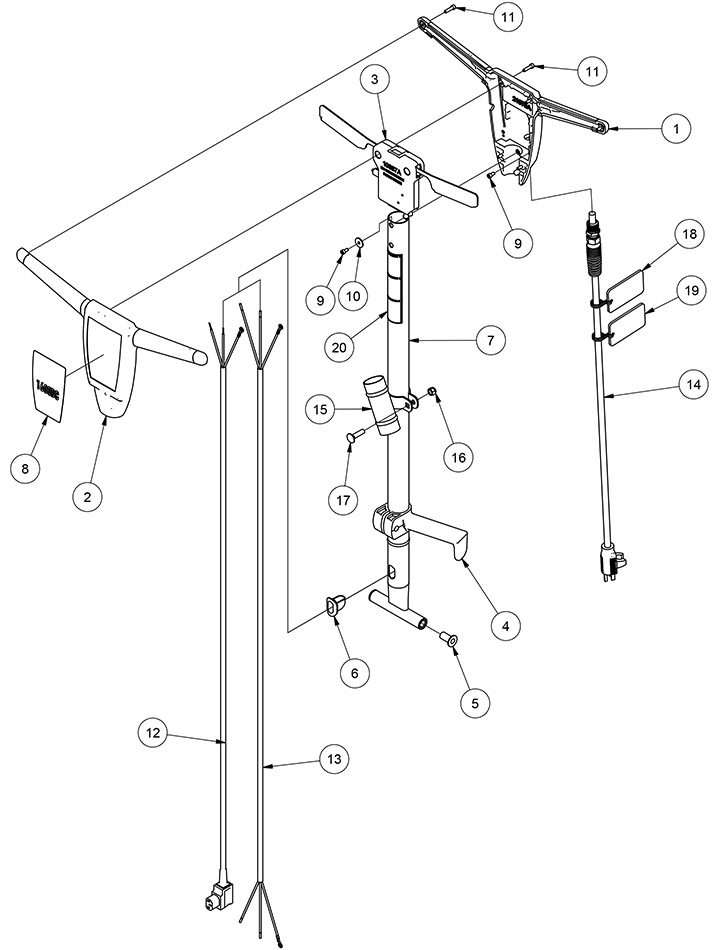

Sander1600 Handle Assembly

ITEMPART NUMBERQTYDESCRIPTIONITEMPART NUMBERQTYDESCRIPTION
121075A1HANDLE, REAR - CFP12AS0293001CORD, INTERCONNECT, LAMP
221074A1HANDLE, FRONT - CFP13AS0294001CORD, INTERCONNECT, 1600
310687A1MODULE INTERLOCK ASM14AS0298001CORD, POWER, 14/3, 50FT, ASM.
450781A1CLAMP HANDLE C2K1510304A1ADAPTER, HOSE, SANDER, WELD.
550794A2BUSHING NYLON C2K169201101NUT, 5/16-18 HEX LOCK
650796A1BUSHING CORD C2K1788643A1BOLT, CARRIAGE, 5/16-18 X 1 1/2
7AS0295001TUBE, HANDLE, 16001870175A1TAG WARNING ENG-SPN
8AS0299001DECAL, HANDLE, SANDER 1600DC1970175A-FR1TAG WARNING ENG-FRN
980290A2SCREW 10-32 X 3/8 HRCS2071347A1LABEL CCA WARNING
1080291A1WASHER FLAT 10 TYPE B WIDE2147709A2TERMINAL, 1/4 FIFQD 12-10 GA. *(NOT SHOWN)
1180284A6SCREW 10-32UNF X .75 HRCS
