To purchase parts for the Sander 1600 (Gearbox Assembly):

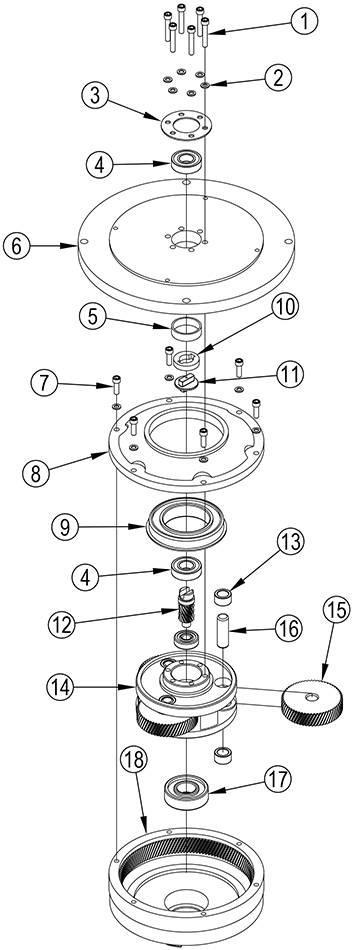

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".


ItemPart NumberQTYDescription ItemPart NumberQTYDescription
11706672Wire Connector Twist On 74b 25 1Frame Common Sander (not available for sale)
59623084Scr 5/16-18x2&1/4 Hx St 2651523A1Bushing Strain Relief
69627272Screw, 8-32 X 1/2 2752359A1Bumper Outer Shield
79628222Screw 1/4-20 X 5/8 Bt St Soc 2852368A1Seal Foam
89806514Washer, 5/16 Flat 2910240A1Skirt Assy Dust Control
99806524Washer, 5/16 Lock 3157165A1Plug Nylon Hole 3ds
1310241A1Wldmnt Dust Shield 3261832A1Shield, Inner
1410242A1Assy, Pad Driver 3362667A1Cover, Enclosure
1510252A1Lamp Assy
3577195A1Label-Ul Fire & Sand.
18 1Handle Asm Common Sander 1600 (not available for sale) 3677234A2Plate-Warning
1920028A1Knob, Lamp Mount 3781302A1Nuthex Jam1/4-20
2022906A1Enclosure, Motor Start 3885833A110-32x3/8 Hw Type 23
2230408B1Hose Squeegee Vision 17/20 3987607A1Washer, Nylon 1.25 X .52 X .06 Flat
2340533A1Motor 1.5 Hp 4087625A1Washer, Nylon 1 1/4 X 1/4 X 1/32
2450979A1Gearbox 10:1 3 Planet
