To purchase parts for the Sander 1600 (Base Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

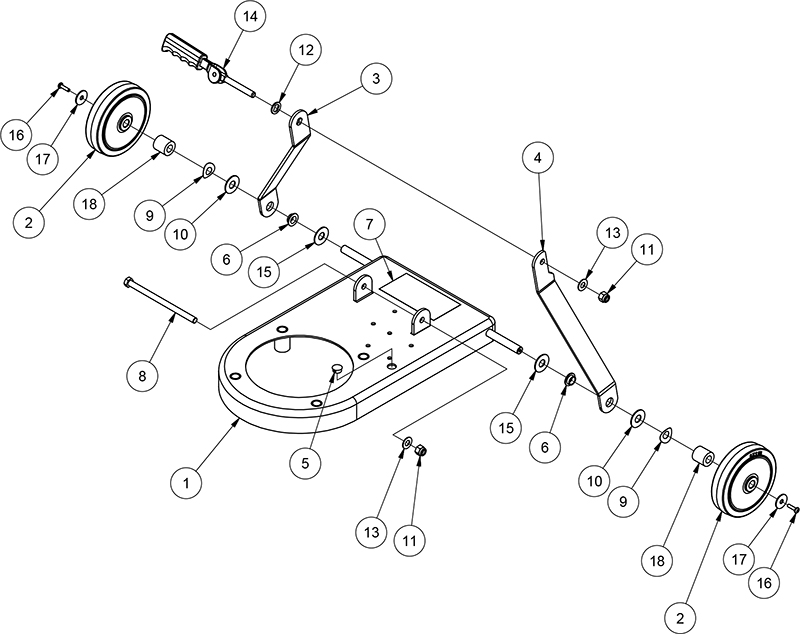

Sander-1600-Base-Assembly

ITEMPART NUMBERQTYDESCRIPTIONITEMPART NUMBERQTYDESCRIPTION
1AS0247001FRAME, SANDER 1600, EPOCH, WELDMENT10NB0346002WASHER, FLAT, 1/2", SS
239857A2WHEEL 5 POLISHER119203422NUT LK 3/8 -16 REG
3AS0288001ARM, LINK, RIGHT129803491WASHER WEAR CAM
4AS0289001ARM, LINK, LEFT139806452WASHER, 3/8" SAE, FLAT
557120A1PLUG-BUTTON14561096991CAM ASSY WITH GRIP
6MP1654002BUSHING, FLANGED, BRONZE, 1/2 ID X 1/4 L1587607A2WASHER FLT 1.25X .52 X .06 NYLON
773285A1LABEL WARNING1685383A2SCREW 10-32 X 3/4 PAN HD
880087A1SCREW 3/8-16 X 61787035A2WASHER 10 FENDERSS
980295A2WASHER BOWED .516ID X 1.06OD18MP5233002SPACER, NYLON, 1"OD, 1/2"ID, 1"L
