To purchase parts for the FM HDTR Floor Maintainer (Gearbox Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

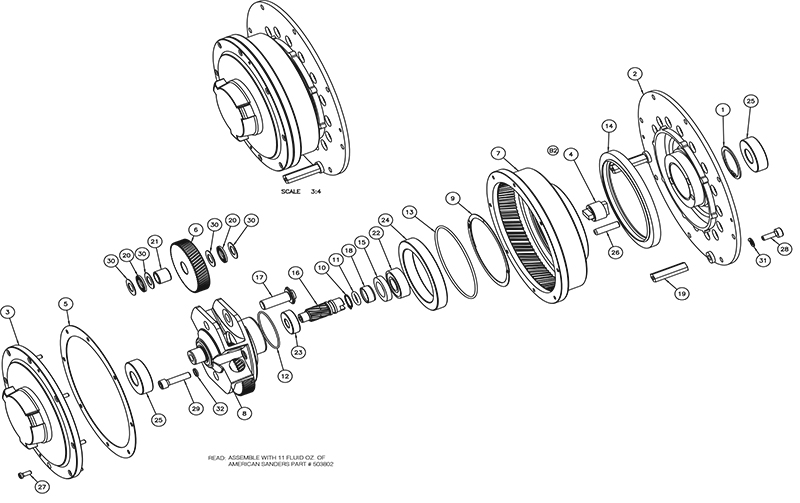

FM HDTR Gearbox

ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
14673281RING,RETAINING,INT.,1.850175077432PIN,  IDLER  GEAR
25002401ADAPTOR,  GEAR  UNIT185082401SPACER,  OIL  SEAL
35023031COVER,  RING  GEAR195082422SPACER,  BRUSH  SHIELD
45024071COUPLING,  STEEL  DRIVE209020404BEARING, THRUST
55034031GASKET,  GEAR  UNIT219020482BEARING, NEEDLE
65035412GEAR,IDLER   63   TEETH229025501BEARING, BALL,  6203
75042411HOUSING,  RING  GEAR-140239025801BEARING, BALL,   6201
85042481HOUSING,  IDLER  GEAR249026091BEARING, BALL,      KP49B
95073021RING,RETAINING,INT.,4.000259026542BEARING, BALL,  6204
105073401RING,RETAINING,EXT.,0.688269255361PIN,  DOWEL,  5/16  X  1   1/4
115073411O-RING-206N70279622418SCREW,  10-24  X  1/2
1250760310-RING-032N70289622892SCREW,  1   4-20  X  3/4
135076041O-RING-155N70299628412SCREW,  5/16-18  X  1   1/4
145076401SEAL.OIL,  4.500309800458WASHER,  THRUST
155076411SEAL,  OIL,  0.875319806572WASHER,  LOCK  1/  4
165077401GEAR,  PINION  14   TEETH329806852WASHER,  LOCK,  5/16
