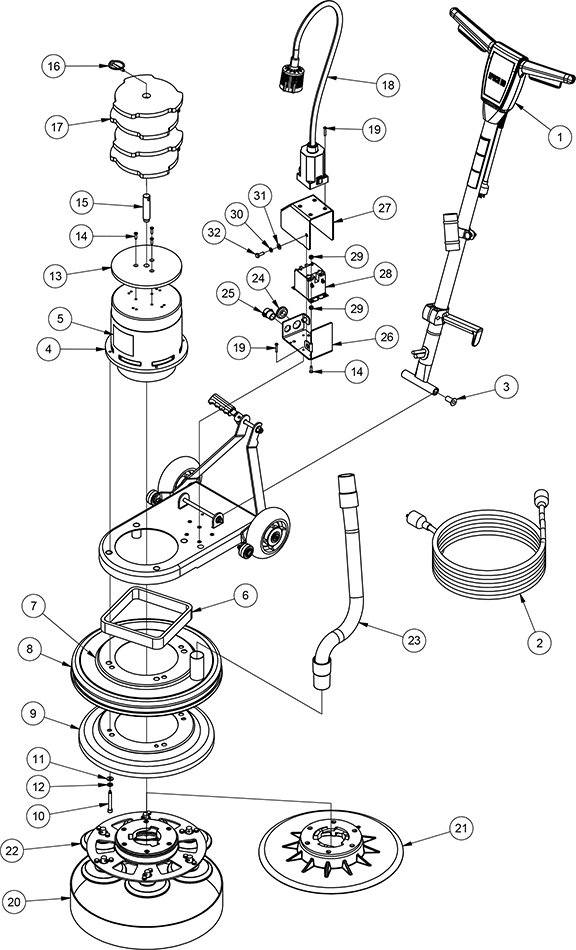

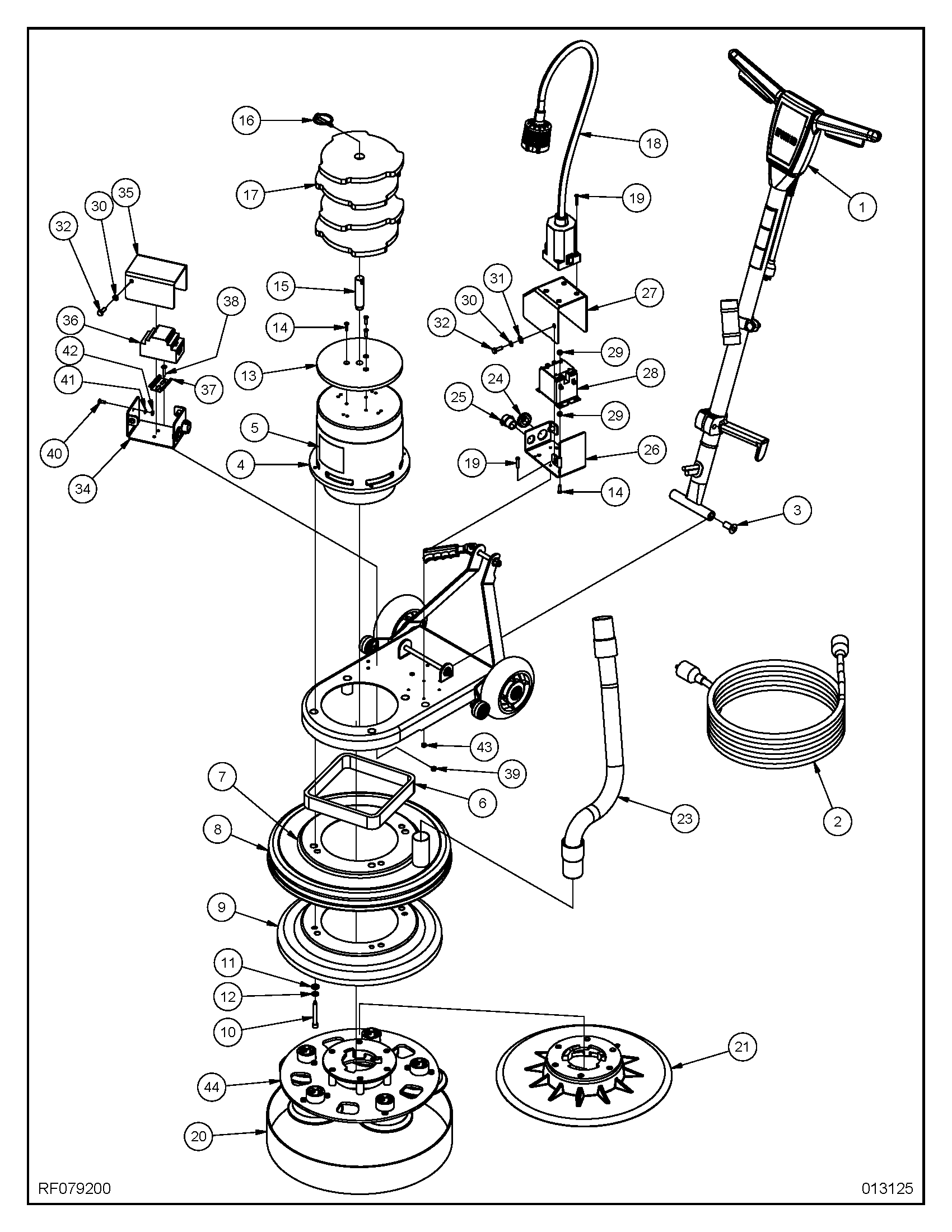

To purchase parts for the Epoch HD & HD-20 Rotary Machine (Main Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| ITEM | QTY | PART NUMBER | DESCRIPTION |
| 1 | 1 | AS042200 | HANDLE ASM., SANDERS, 07233A |
| 2 | 1 | 42200A | CORD SET-HARD SERVICE (50 FT) |
| 3 | 2 | 50794A | BUSHING NYLON C2K |
| 4 | 1 | AS041300 | MOTOR, GEAR, 2.5HP, 230V, 2SPD |
| 5 | 1 | AS013600 | DECAL, AMERICAN SANDERS, 3" |
| 6 | 1 | 52368A | SEAL FOAM |
| 7 | 1 | 10241A | WLDMNT DUST SHIELD |
| 7B | 1 | AS058500 | SHIELD, DUST, 20", WELDMENT (20" MODELS ONLY) |
| 8 | 1 | 30381A | BUMPER, POLISHER, 16" |
| 8B | 1 | AS058700 | BUMPER, SHROUD, 20" (20" MODELS ONLY) |
| 9 | 1 | 61832A | SHIELD INNER RS 16DC |
| 9B | 1 | AS058600 | SHIELD, INNER, 20" (20" MODELS ONLY) |
| 10 | 4 | NB073800 | SCREW, 5/16-18 X 2 1/2", SHCS, W/ DOG PT |
| 11 | 4 | 980651 | WASHER 5/16 SAE FLAT |
| 12 | 4 | 980652 | WASHER, LOCK, 5/16 |
| 13 | 1 | AS025000 | PLATE, WEIGHT, BRACKET, 7.8" DIA. |
| 14 | 7 | NB073500 | SCREW, SOCKET, FLAT, 10-32 X 3/4, CS, SS |
| 15 | 1 | AS025100 | ROD, WEIGHT, BRACKET, THREADED |
| 16 | 1 | NB046300 | PIN, LYNCH, 1/4" X 1 3/4" |
| 17 | 4 | AS027200 | WEIGHT, 8" DIA, W/ RUBBER FEET |
| - | 12 | AS025200 | FEET, RUBBER, .81" OD, .12" H, BLACK (NOT SHOWN- 3 REPLACEMENT FEET PER WEIGHT ) |
| 18 | 1 | AS042100 | LIGHT, LED, 35 DEG., 230V, ASM |
| - | 1 | AS027600 | BULB, LIGHT, LED (NOT SHOWN) |
| - | 1 | AS028600 | TRANSFORMER, LIGHT, LED, 230V (NOT SHOWN) |
| - | 1 | AS027800 | SHADE, LIGHT, LED (NOT SHOWN) |
| - | 1 | AS027900 | TRANSFORMER HOUSING, LIGHT, LED (NOT SHOWN) |
| - | 1 | AS028000 | SOCKET WIRE ASM, LIGHT, LED (NOT SHOWN) |
| - | 1 | AS028100 | ROCKER SWITCH, LIGHT, LED (NOT SHOWN) |
| - | 1 | AS028200 | SWITCH COVER, LIGHT, LED (NOT SHOWN) |
| 19 | 8 | NB073900 | SCREW, 8-32 X 1", RH, PHILLIPS |
| 20 | 1 | 30725A | SKIRT, RS-16DC |
| 20B | 1 | AS059920 | SKIRT, 20" DIA X 3.25"H, VINYL (20" MODELS ONLY) |
| 21 | 1 | 10242A | ASSY PAD DRIVER |
| 21B | 1 | AS042500 | DRIVER, PAD, 20", MIGHTY-LOK (20" MODELS ONLY) |
| 22B | 1 | SA035400 | HYDRASAND 20" KIT (20" MODELS ONLY) |
| 23 | 1 | 30408B | 1.5" X 30" CUFFS BE BLACK |
| 24 | 1 | NB009900 | GROMMET, 11/16 X 1 |
| 25 | 1 | 170637 | CONDUIT CONNECTOR 3/8" 2-SCREW |
| 26 | 1 | AS043400 | BASE, CONTACTOR BOX,W/INSERTS |
| 27 | 1 | AS043500 | COVER, CONTACTOR BOX,W/INSERTS |
| 28 | 1 | AS041600 | CONTACTOR, 2-POLE, 230V, 40A |
| 29 | 8 | NB006600 | NUT, KEPS, 10-32 |
| 30 | 4 | 980657 | WASHER, LOCK 1/4" |
| 31 | 2 | 980646 | WASHER 1/4 SAE FLAT PLTD |
| 32 | 4 | 85806A | SCREW 1/4-20 X 3/4 HX SZ CAP |
| 33 | 1 | MP540600 | DECAL, DANGER, HANDS & FEET |
| 34 | 1 | AS116700 | BASE, SOFT START PLATE, ASM |
| 35 | 1 | AS116101 | COVER, SOFT START PLATE |
| 36 | 1 | AS115600 | SOFT START, MEAN WELL, 220V |
| 37 | 1 | NB083100 | RAIL, DIN, 2.00 |
| 38 | 2 | NB5350 | SCREW, MACHINE, TH, 10-24 X 1" |
| 39 | 2 | NB9735 | NUT, LOCK, 10-24, NYLON |
| 40 | 1 | NB034100 | SCREW, PAN HD, #10-24 X 1/2", SS |
| 41 | 1 | NB9445 | WASHER, STAR LOCK, #10 |
| 42 | 1 | NB027600 | NUT, #10-24, SS |
| 43 | 4 | NB9725 | NUT, LOCK, #8-32, NYLON |
| 44 | 1 | SA039700 | KIT, HYDRASAND 5, ASM. |
