To purchase parts for the Epoch HD & HD-20 Rotary Machine (Base Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

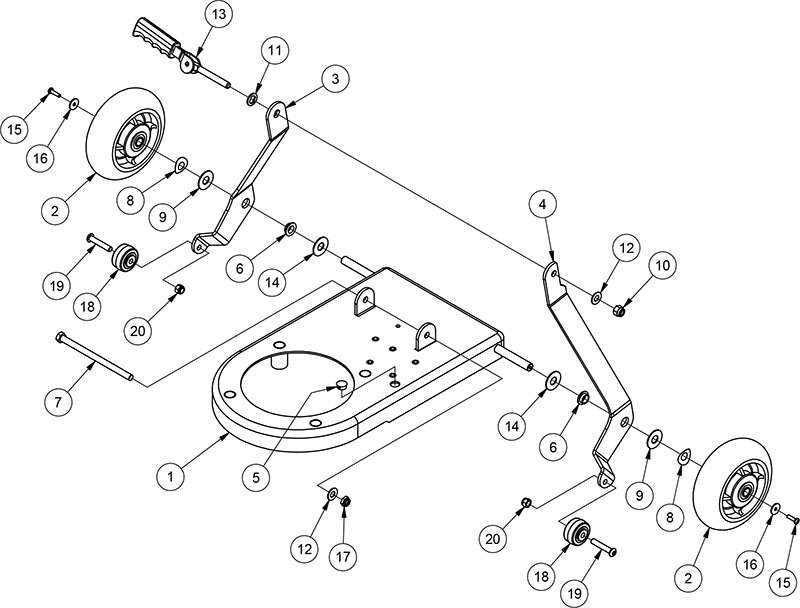

Epoch HD Base Assembly

ITEMQTYPART NUMBERDESCRIPTIONITEMQTYPART NUMBERDESCRIPTION
11AS027100FRAME, EPOCH, W/ INSERTS111AS087800
WASHER WEAR CAM
22RV009600WHEEL, PERFORMA, 6" GREY122980645WASHER, 3/8" SAE, FLAT
31AS043802ARM, LINK, RIGHT, EXTENDED,PLT13156109699CAM ASSY WITH GRIP
41AS043902ARM, LINK, LEFT, EXTENDED,PLT14287607AWASHER FLT 1.25X .52 X .06 NYLON
5157120APLUG-BUTTON15285383ASCREW 10-32 X 3/4 PAN HD
62MP165400BUSHING, FLANGED, BRONZE, 1/2 ID X 1/4 L16280291AWASHER FLAT 10 TYPE B WIDE
7180087ASCREW 3/8-16 X 6171920248NUT 3/8-16 ESNA LIGHT
8280295AWASHER BOWED .516ID X 1.06OD182MP246200WHEEL, PERFORMA, 1 5/8 X 7/8
92NB034600WASHER, FLAT, 1/2", SS192NB3003SCREW, BH, 5/16-18 X 1 3/4
101920342NUT LK 3/8 -16 REG202920110NUT, 5/16-18 HEX LOCK
