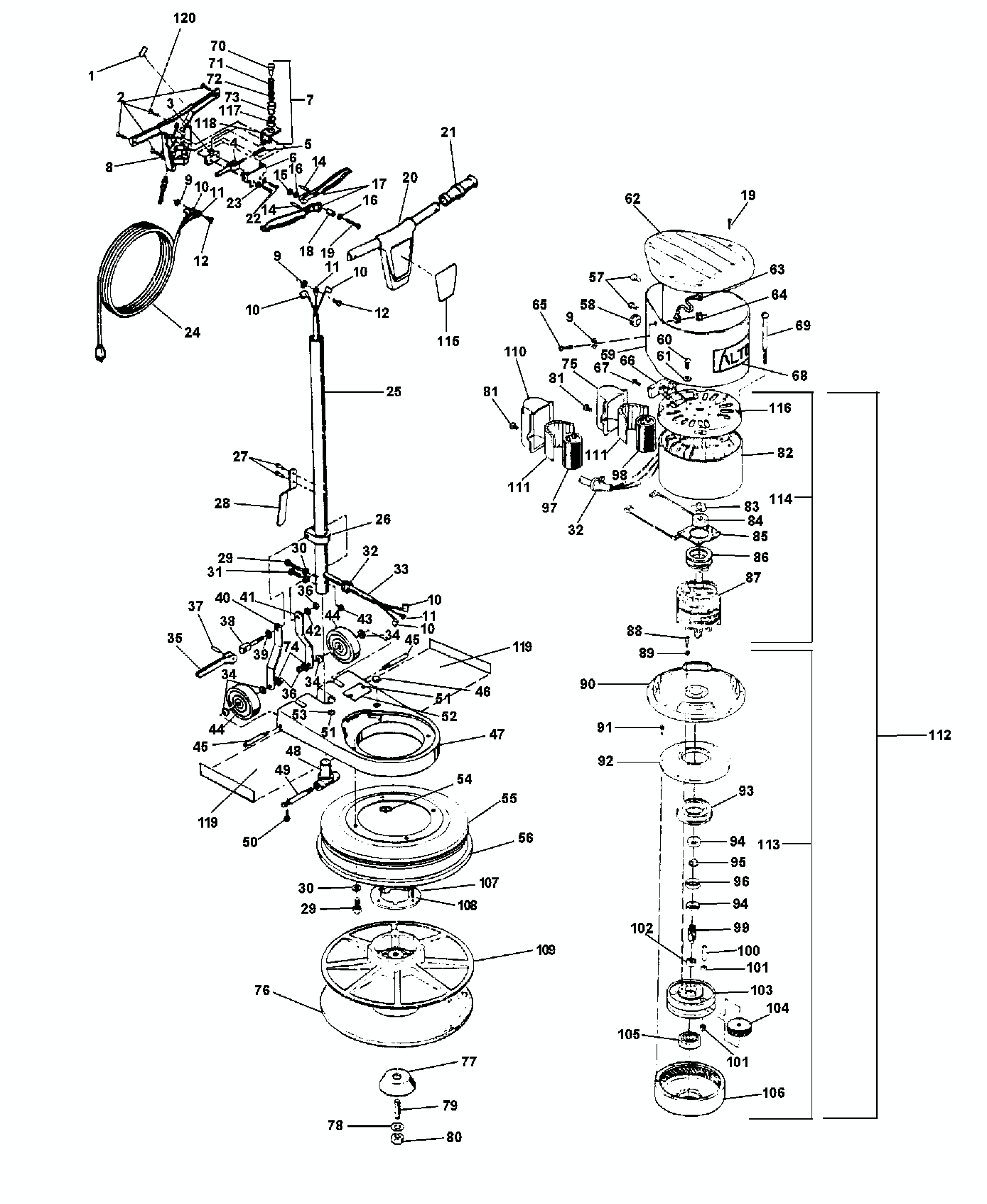

| Item | Part Number | QTY | Description | | Item | Part Number | QTY | Description | | Item | Part Number | QTY | Description | | Item | Part Number | QTY | Description |
| 1 | 445178 | 1 | LABEL-INTER LOCK | | 30 | 980652 | 5 | WASHER LK 5/16 REGPLTD | | 62 | 32387A | 1 | COVER MOTOR BLACK C-LINE | | 91 | 962967 | 6 | Screw - Socket Hd. Cap |
| 2 | 962487 | 5 | SCREW 1/4-20X 3/4 FS ST PH | | 31 | 85812A | 1 | SCREW5/16-18 X 7/8 HEX HD GR5 | | 63 | 48909A | 1 | WIRE ASM. 14GA GRN 8 | | 92 | 442372 | 1 | COVER-ROTATING(USED IN 443571) |
| 3 | 911690 | 1 | SWITCH FM1500-2300 MP18 CLINE | | 32 | 737502 | 1 | STRAIN-RELIEF | | 64 | 920065 | 1 | NUT 8-32 ESNA 22NM-82 | | 93 | 902736 | 1 | BEARINGBALL-6010W/SNAP RING |
| 4 | 448573 | 1 | INTERLOCK POL SWITCH | | 33 | 41957A | 1 | CORD ASM. I/C HANDLE ASM | | 65 | 85303A | 1 | SCREW 8-32 X 3/8 PN ST PH | | 94 | 902606 | 2 | BEARING BALL 6002 |
| 5 | 58665A | 1 | SPRING SWITCH INTERLOCK | | 34 | 980681 | 4 | WASH-33/64IX1&1/16O WAVE | | 66 | 40086A | 1 | TERMINAL BOARD ASSEMBLY | | 95 | 442473 | 1 | COUPLING DRIVE SANDER 16/VP/ |
| 6 | 440873 | 1 | BRACKET SWITCH INTERLOCK | | 35 | 461404 | 1 | CAM LOCKING C- LINE | | 67 | 962727 | 2 | SCREW 8-32X 1/2 PN ST TP23 PH | | 96 | 448272 | 1 | SPACER-BEARING |
| 7 | 16029A | 1 | SWITCH ADAPTOR KIT | | 36 | 920248 | 3 | NUT 3/8-16 ESNA LIGHT | | 68 | 77371A | 1 | LABEL ALTO 2.75 | | 97 | 442474 | 1 | CAPACITOR-341 MFD 443573-1 |
| 8 | 87303A | 1 | WASHER 1/4 CSNK EXT. TOOTH | | 37 | 925592 | 1 | PIN-1/4 X 1 SPIROL | | 69 | 961019 | 4 | BOLT 1/4-28 X 7 3/8 | | 98 | 442475 | 1 | CAPACITOR-20 MFD 443573-1 |
| 9 | 980621 | 2 | WASHER 8 EXT. TOOTH PLTD | | 38 | 441301 | 1 | BOLT LOCKING CAM C15 | | 70 | 51512A | 1 | BUSHING 6 NYLON | | 99 | 447071 | 1 | PINION |
| 10 | 911389 | 6 | TERMINAL CLIP-SLIP-ONFLAG | | 39 | 980349 | 1 | WASHER WEAR CAM | | 71 | 58664A | 1 | SPRING SWITCH ADAPTOR | | 100 | 447771 | 2 | SHAFT-IDLER |
| 11 | 170687 | 3 | TERM 10 RING 14/16G | | 40 | 440301 | 1 | ARM LINK RH C-15 | | 72 | 87023A | 3 | WASHERFLAT 4 STAINLESS STE | | 101 | 902737 | 6 | BEARING NEEDLE 1/2X11/16X3/8 |
| 12 | 962065 | 2 | SCREW 8-32 X 1/4 PN ST PH | | 41 | 440302 | 1 | ARM LINK LH C-15 | | 73 | 30117A | 1 | ADAPTOR SWITCH | | 102 | 902735 | 1 | BEARING |
| 13 | 24530B | 1 | HOUSING SWITCH REAR****OBSOLETE**** | | 42 | 980645 | 1 | WASHER 3/8 FLAT SAE | | 74 | 980215 | 2 | WASHER WHEEL THRUST FM | | 103 | 54811A | 1 | HOUSING 3-PLANET GEAR |
| 14 | 925189 | 2 | PIN-3/16X1 LG DOWEL | | 43 | 920110 | 1 | NUT LK 5/16-18 REGPLTD | | 75 | 912099 | 1 | Capacitor Can (Start) | | 104 | 443572 | 3 | GEAR-PLANET |
| 15 | 920296 | 1 | NUT 10-24 ELASTIC STOP | | 44 | 419752 | 2 | WHEEL EM16 VP16-20 MP18 DS20 | | 76 | 465904 | 1 | PAD FELT SANDING FOR 460215 | | 105 | 902573 | 1 | BEARING BALL-6204 |
| 16 | 980982 | 2 | WASHER 10 SAE FLAT PLTD | | 45 | 437761 | 2 | SHAFT-WHEEL | | 77 | 467204 | 1 | RETAINER PAPER | | 106 | 444272 | 1 | HOUSING-DRIVE |
| 17 | 445174 | 2 | LEVER-SWITCH ALUMINUM | | 46 | 57120A | 1 | PLUG-BUTTON | | 78 | 980648 | 1 | WASH-17/32 ID X 1&1/16 OD PLN | | 107 | 466616 | 1 | PLATEBRUSH LOCKMETAL 3 HOLE |
| 18 | 508204 | 1 | FM17 SPACER SWITCH LEVER | | 47 | 23418B | 1 | FRAME MAIN ALTO BLUE | | 79 | 468422 | 1 | STUD LEFT HAND THREAD | | 108 | 962098 | 3 | SCREW 1/4 -20X 3/4 FL ST |
| 19 | 962794 | 3 | SCREW 10-24X1 PN ST PH | | 48 | 449201 | 1 | TONGUE HOL TUBE C-15 | | 80 | 920236 | 1 | NUT-1/2-13 L H HEX HD | | 109 | 466110 | 1 | PLATE SANDING ADAPTER FOR 46 |
| 20 | 24529B | 1 | HOUSING SWITCH FRONT | | 49 | 447702 | 1 | SHAFT TONGUE PIVOT C-15 | | 81 | 58030A | 2 | SCREW 10-32 X .31 FOR 44635A | | 110 | | 1 | Cover, Capacitor |
| 21 | 54501A | 2 | GRIPBLK. HANDLE | | 50 | 962830 | 2 | SCR 1/4 -20X1 HX ST TAPTT | | 82 | 448572 | 1 | STATOR ASM 443573-1 | | 111 | 414870 | 2 | Insulation |
| 22 | 80048A | 2 | SCREW 6-32 X 1.125 PH. PN. HD | | 51 | 930074 | 3 | RIVET-1/8 DIA CLOSED END | | | 46738A | 1 | STATOR 50HZ 1.5HP1.5HP | | 112 | 44618A | 1 | MOTOR-1 1/2 HP,1725 RPM |
| 23 | 980607 | 2 | WASHER 6 EXT TOOTH PLTD | | 52 | 506359 | 1 | PLATE-FIRE & SANDING WARNING | | 83 | 980217 | 1 | WASHER 05-378-105 C-15 | | | 44641A | 1 | MOTOR 230V/50HZ MP18/SANDER- |
| 24 | 42090A | 1 | CORD ASSEMBLY 50FT OBS-18 | | 53 | 77221A | 1 | SERIAL PLATE | | 84 | 902550 | 1 | BEARING BALL-6203 | | 113 | 54405A | | GEAR UNIT 44618A-0 |
| 40034A | 1 | Cord Asm. 230V (CE) | | 54 | 980664 | 1 | WASHER LK 5/16 EXT TOOTH PLTD | | 85 | 448507 | 1 | SW STAT C15 C1600-2000 | | 114 | 44660A | 1 | Motor Only - 120V 60Hz |
| 467504 | 1 | STRAIN RELIEF EASTMAN 42 | | 55 | 67541B | 1 | SHIELDBRUSH ALTO BLUE | | 86 | 912321 | 1 | SWITCH-ROTARY 443573-1 | | | 44662A | 1 | MOTOR, 230V 50HZ 1.5HP |
| 58013A | 1 | STRAIN RELIEF EXT-771 | | 56 | 31230B | 1 | BUMPER FRAME BLACK | | | 47408A | 1 | SWITCH, CENTRIFUGAL, 50HZ 1.5H | | 115 | 77377A | 1 | LABELSWITCH HOUSING SAN-16 |
| 25 | 449071 | 1 | TUBE-HANDLE | | 57 | 962731 | 2 | SCREW 8-00X 1/2 PN ST TP A PH | | 87 | 447572 | 1 | ROTOR & SHAFT ASM 443573-1 | | 116 | 53502A | 1 | END-FRONT SHIELD(445273/44618A |
| 26 | 442001 | 1 | CLAMP HANDLE TUBE VP/C/DS/SS | | 58 | 611101 | | BUSHING-MOTOR | | | 18604A | 1 | ROTOR & SHAFT ASM., 50 HZ 1.5H | | 117 | 58547A | 1 | SPRINGADAPTOR SWITCH |
| 27 | 930005 | 2 | RIVET-5/32X3/8 POP | | 59 | 69073B | 1 | SHROUDMOTOR ALTO BLUE | | 88 | 962966 | 6 | SCREW 10-32 X 1 1/4 SOCKET | | 118 | 69914A | 1 | BRACKETSPRING SUPPORT |
| 28 | 64325A | 1 | HOOK CORD 20-BURNISHER | | 60 | 962333 | 1 | SCREW 10-32 X 1/4 PN ST PH | | 89 | 980650 | 6 | WASH .19 x .34 x .04 LOCK | | 119 | 77373A | 2 | LABEL AMERICAN SANDER .65 |
| 29 | 85817A | 5 | SCREW5/16-18 X 2.0 HEX HD GR5 | | 61 | 980603 | 1 | WASHER LK 10 EXT TOOTHPLTD | | 90 | 53503A | 1 | END-GEAR SHIELD 44618A-0 | | 120 | 80063A | 1 | SCREW SECURITY 1/4-20 |
