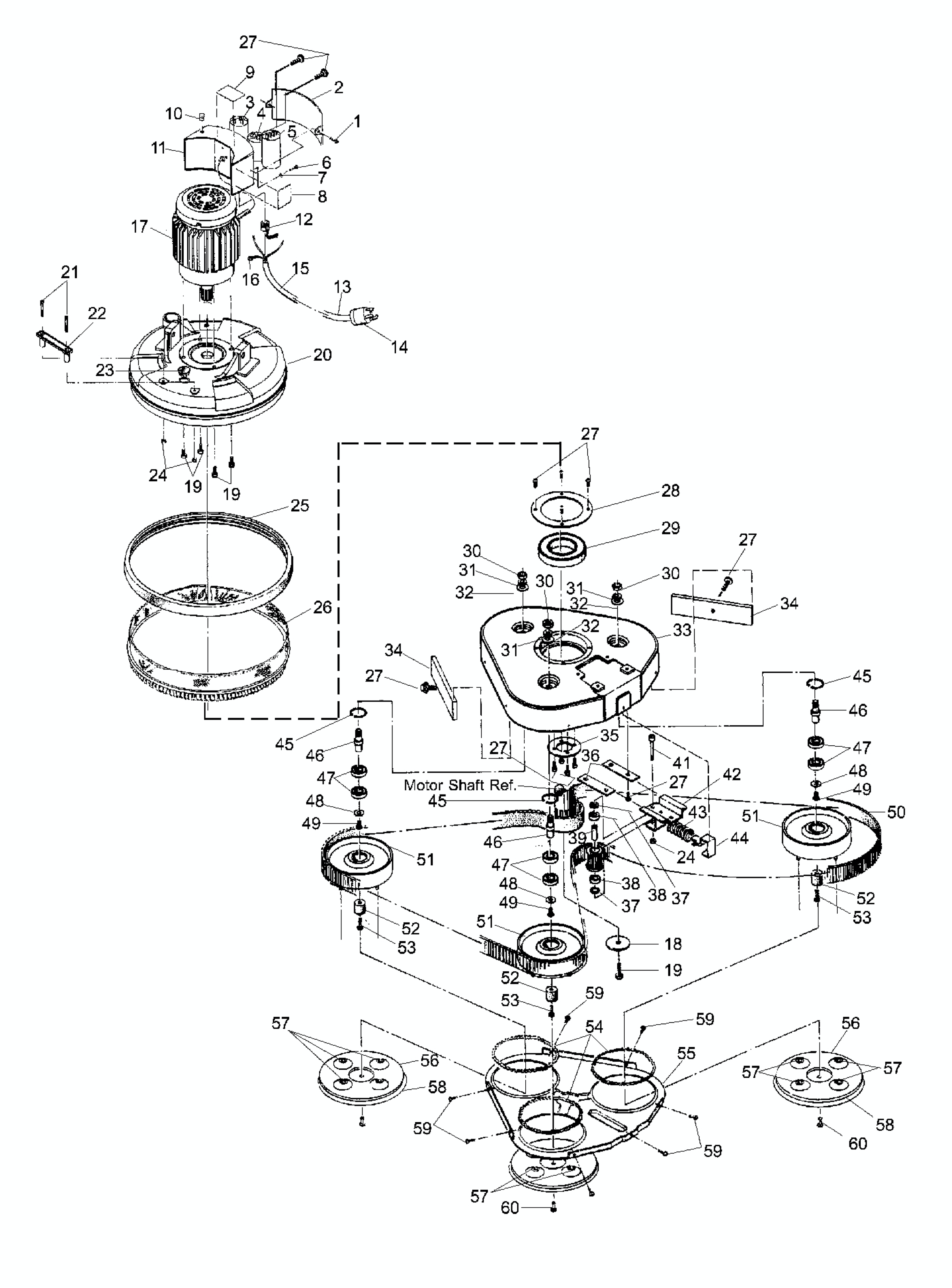

| Item | Part Number | QTY | Description | | Item | Part Number | QTY | Description | | Item | Part Number | QTY | Description |
| 1 | 962727 | 2 | SCREW 8-32X 1/2 PN ST TP23 PH | | 21 | 85743A | 2 | SCREW1/4-20x2 SC HD SZ | | 42 | 19022A | 1 | TENSIONER WLDMTBELT 3DS |
| 2 | 62667A | 1 | COVERENCLOSURE OBS-18 | | 22 | 54931A | 1 | HANDLE4-1/4 X 1-3/4 | | 43 | 53410A | 1 | SPRINGABRASIVETENSION C-12 |
| 3 | 41314A | 1 | CAPACITORSTART137MFD 240V | | 23 | 57166A | 1 | PLUG1 1/4 FINISHING | | 44 | 69191A | 1 | TENSIONERBELT 3DS |
| 4 | 41313A | 1 | CAPACITORRUN12MFD 240V | | 24 | 81217A | 3 | NUT 1/4-20 X .218H NYLOCK | | 45 | 167312 | 3 | RING RETAIN 40137 |
| 5 | 47378A | 1 | SWITCH MOTOR STARTING CLASSI | | 25 | 31225A | 1 | BUMPER 20 FRAME POLISHERS | | 46 | 67477A | 3 | SHAFT 3DS |
| 6 | 85833A | 1 | SCREW MACHINE 10-32 TYPE 23 | | 26 | 18446A | 1 | SKIRT ASM 3DS | | 47 | 902567 | 6 | BEARING BALLDOUBLE SEALED |
| 7 | 980603 | 1 | WASHER LK 10 EXT TOOTHPLTD | | 27 | 87700A | 16 | SCREW1/4-20 X 1/2 BUTTON HEAD | | 48 | 170860 | 3 | WASHER FLT 5/16 PLTD |
| 8 | 77234A | 1 | LABELWARNINGHEAVY OBJECT | | 28 | 66990A | 1 | RETAINEROUTER RING 3DS | | 49 | 87701A | 3 | SCREW5/16-18X5/8 BUTTON HEAD |
| 9 | 77195A | 1 | DECAL-UL WARNING | | 29 | 50758A | 1 | BEARING BALL 6212 3DS | | 50 | 50927A | 1 | BELTDRIVE 3DS SANDER |
| 10 | 57165A | 1 | PLUG NYLON HOLE 3DS | | 30 | 920196 | 3 | NUT-1/2-13 HEX JAM | | 51 | 66245A | 3 | PULLEY 3DS |
| 11 | 22906A | 1 | ENCLOSUREMTR STRPNTD OBS-18 | | 31 | 87101A | 3 | WASHER LOCK 1/2 NOM | | 52 | 34403A | 3 | GIMBALRUBBER 1 SANDER 3DS |
| 12 | 51523A | 1 | BUSHING STRAIN RELIEF | | 32 | 980648 | 3 | WASH-17/32 ID X 1&1/16 OD PLN | | 53 | 962350 | 3 | SCR 10-32X 1/2 PN ST |
| 13 | 11676A | 1 | CORD ASM SET 3DS | | 33 | 24536A | 1 | HOUSINGDISC 3DS | | 54 | 69662A | 3 | SEALPULLY 3DS SANDER |
| 14 | 45604A | 1 | PLUGELECT. NEMA L6-30P | | 34 | 68793A | 2 | WEIGHTDISC HOUSING 3DS | | 55 | 32414A | 1 | COVER 3DS |
| 15 | 42181A | 1 | CORD12-3 SJO STRAND CLASSIC | | 35 | 66991A | 1 | RETAINERINNER RING 3DS | | 56 | 56942A | 3 | PAD 3DS |
| 16 | 170593 | 1 | TERMINALRING 10 12-10GA | | 36 | 66992A | 2 | RETAINERBELT TENSIONER 3DS | | 57 | 54608A | 12 | GROMMET 3DS |
| 17 | 44672A | 1 | MOTOR3HP 230V/60HZ 3DS | | 37 | 67863A | 2 | SPACERRELEASE LEVER8 BELT S | | 58 | 37018A | 3 | PAD FOAM 3DS |
| 44311A | 1 | MOTOR2.2 KW 220V/50HZ | | 38 | 902648 | 2 | BRG-BALL RADIAL DBL SEAL | | 59 | 86006A | 6 | SCREW 10-16 X .5 HEX TEK |
| 18 | 87038A | 1 | WASHER FLAT 25/64 ID X 1.5 ID | | 39 | 58543A | 1 | SPACERSPROCKET 3DS SANDERS | | 60 | 83011A | 3 | RIVET REMOVABLE .180 HOLE |
| 19 | 962244 | 5 | BOLT 3/8-16 X HHCS | | 40 | 69658A | 1 | SPROCKETIDLER 3DS | | | | | |
| 20 | 25909A | 1 | MAINFRAME 3DS | | 41 | 80045A | 1 | BOLT SHOULDER 5/16 X 1-3/4 | | | | | |
