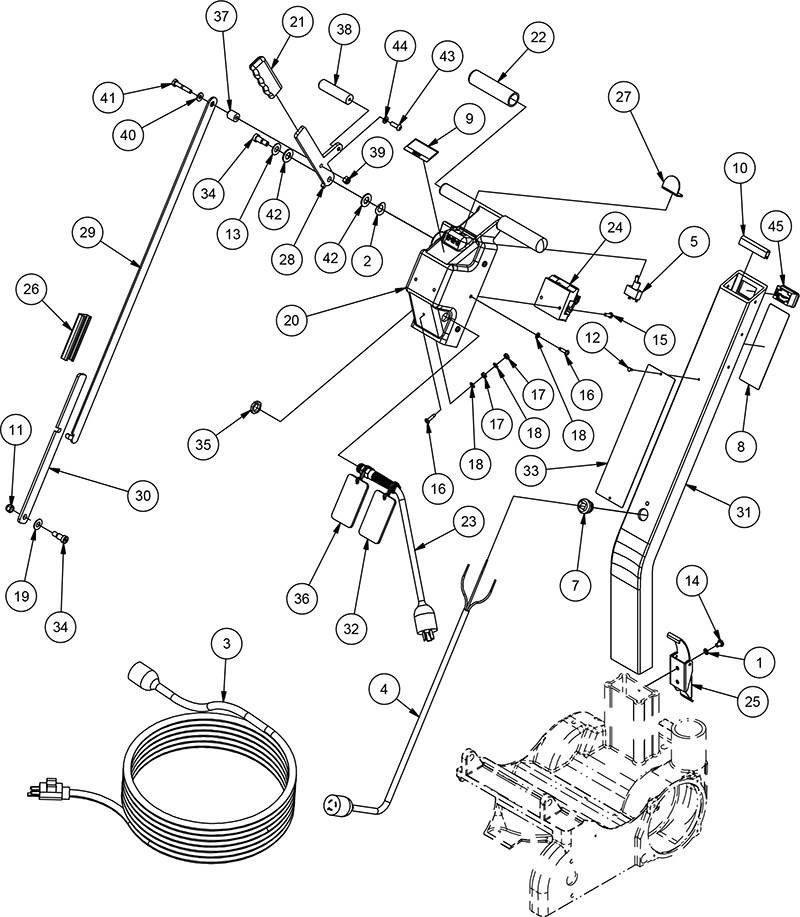

To purchase parts for the EZ-8 (Handle Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| ITEM | PART NUMBER | QTY | DESCRIPTION | ITEM | PART NUMBER | QTY | DESCRIPTION | |
| 1 | 170892 | 2 | WASHER LK 1/4 REGSS | 24 | 41807A | 1 | CONTACTOR DPST 115V COIL 1.5 Hp | |
| 2 | NB069300 | 1 | WASHER, SPRING, .52 ID X .98 OD | 41808A | 1 | CONTACTOR 1.5HP 240V EZ-8 | ||
| 3 | 40540A | 1 | CORDSET, 12-3 X 40FT 5-15P (07012A) | 25 | 55711A | 1 | LATCH DRAW | |
| 40517A | 1 | CORDSET POWER W/ UK1-13P | 26 | 61659A | 1 | COLLAR CONTROL LINK | ||
| 42183A | 1 | CORD SETPOWER40FT EZ-8 (07058A, 07057A) | 27 | 63928A | 1 | GUARD SWITCH | ||
| 4 | 40543A | 1 | CORD INTERCONNECT w/ L6-15R (07012A) | 28 | MP473400 | 1 | LEVER, FEATHERING (07058A, 07012A) | |
| 41948A | 1 | CORD INTERCONNECTING EZ-8 (07058A, 07057A) | AS022300 | 1 | LEVER, FEATHERING, CLAMP STYLE (07057A) | |||
| 5 | 47387B | 1 | SWITCH TOGGLE DP3T W/WIRES | 29 | 65706A | 1 | LINK,CONTROL | |
| [6] | 48905A | 1 | WIRE ASM RELAY 3 WHT EZ-8 | 30 | 65707A | 1 | LINK, CONTROL ADJUSTER | |
| 7 | 51523A | 1 | BUSHING, STRAIN RELIEF | 31 | AS007700 | 1 | TUBE, HANDLE, EZ-8 HDTR, HR METER (7012A) | |
| 8 | 71347A | 1 | LABEL CCA WARNING (07058A, 07057A, 07012A) | 69106A | 1 | TUBE, HANDLE, EZ-8 (07057A, 07058A) | ||
| 9 | 77299A | 1 | LABEL CAUTION EZ-8 | 32 | 70175A | 1 | TAG WARNING ENG-SPN | |
| 10 | 97100A | 2.6" | TRIMVINYLBLACK400 FT. SPOOL | 33 | 74052A | 1 | PLATE WARNING | |
| 11 | 920110 | 1 | NUT, 5/16-18 HEX LOCK | 34 | 80026A | 2 | BOLT SHOULDER 3/8 X 1/2 | |
| 12 | 930093 | 2 | RIVET, POP, 1/8 X 1/4-5/16 POP STEEL | 35 | 81210A | 1 | LOCKNUT, 3/8 CONDUIT | |
| 13 | NB025200 | 1 | WASHER, FLAT, 3/8", SS | 36 | 70175A-FR | 1 | TAG WARNING ENG-FRN (07058A, 07057A, 07012A) | |
| 14 | 962094 | 2 | SCR 1/4 -20X 3/8 RD ST MACH | 37 | MP473300 | 1 | SPACER, LEVER, FEATHERING | |
| 15 | 962109 | 2 | SCREW, 10-24 X 5/8, PN, SS | 38 | MP473500 | 1 | HANDLE, LEVER, FEATHERING | |
| 16 | 962677 | 7 | SCREW 10-24X 3/4 PN ST TP23 PH | 39 | NB3275 | 1 | NUT, LOCK, 1/4" | |
| 17 | MX1035 | 2 | NUT, HEX, 10-24 UNC | 40 | NB3350 | 1 | WASHER, FLAT, 1/4" | |
| 18 | 980603 | 8 | WASHER, LK 10 EXT TOOTH | 41 | NB030500 | 1 | BOLT, HEX, 1/4-20 X 1-1/2 SS | |
| 19 | 980645 | 1 | WASHER, 3/8" SAE, FLAT | 42 | NB018000 | 2 | WASHER, FLAT, NYLON, 1/2" | |
| 20 | 24525A | 1 | CONTROL HOUSING | 43 | NB049000 | 1 | SCREW, BH, 1/4-20 X 3/4, SS | |
| 21 | 34609A | 1 | GRIP, CONTROL, LEVER, EZ-8 | 44 | NB6110 | 1 | WASHER, LOCK, 1/4" | |
| 22 | 34610A | 2 | GRIP, 7/8 HANDLE | 45 | AS007800 | 1 | METER, HOUR, AC/DC, DIGITAL (07012A) | |
| 23 | 40541A | 1 | CORD ADAPTER EZ-8 (07012A) | |||||
| 42183A | 1 | CORDSET POWER 40 FT EZ-8 (07058A) | [ ] | NOT SHOWN | = |
