To purchase parts for the EZ-8 (07058A Expanding Drum Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

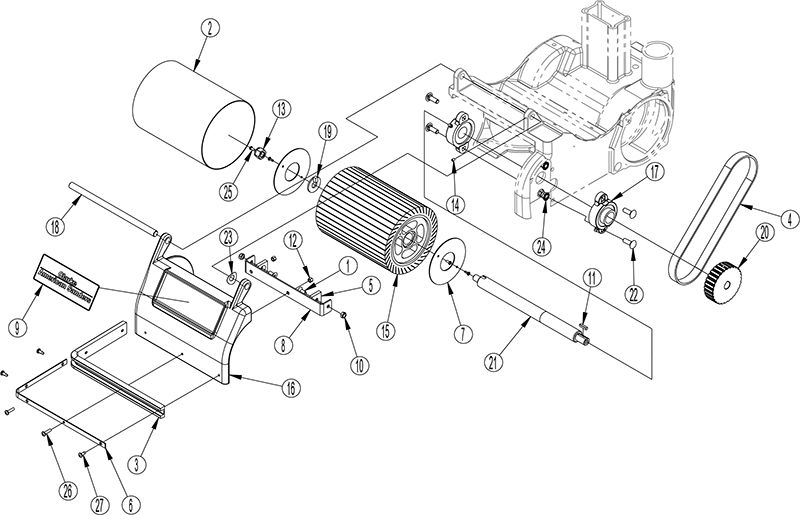

EZ-8-drum-assembly-07012A-07058A-07060A-07084A

ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
19625052Ser 1/4 -205/8 Sf St Cap1751178B2Bearing Flange 12 Hole
2563827571Abrasive Sleeve1864469A1HandleLifting
331223A1BumperFront1965310A1Key Washer (Ez-8)
450916A1Beltdrum Ez-82066161A1Pulley Drum
560906A2Block Wear Ez-82167459A1Shaft Arbor
666948A1Retainerbumperpltd Ez-82280027A4Bolt Rd Hd Sq Neck 5/16x1
768651A2Plate Drum End Ez-8 Sleeve2380295A1Washer Bowed
869098A1Strip Wear Ez-82481211A4Nut5/16-18HeSerrated Flange
970488A1NPalamtee,pNlaatemeEzG-a8s2585313C4Screw Phms 6-32x3/8 Cross Recessed
1081217A2Nut1/4-20 Hex Esna2685381A2Screw10-24 X .75 P.H.
119150821Key3/16 Sq. X 3/4"2785517A3Screw #10-24 X 1/2 PHCR Type 23
129202962Nut 10-24 Elastic Stop
139203651Nut 1/2-13Nylock*65311A1Drum Asm. Kit Expanding (includes 7, 15, 25)
149621701Screw 10-24x1/4 Hrss Cup Pt*14663A1Wearstrip Kit EZ-8 (includes 1, 5, 8, 10, 12, 26)
1521011A1Drum Expansion Asm*563803521Expander Drum Kit (includes 65311A & 14663A)
1622123A1CoverFront(Ez-8)
*  = Optional, Not Included
