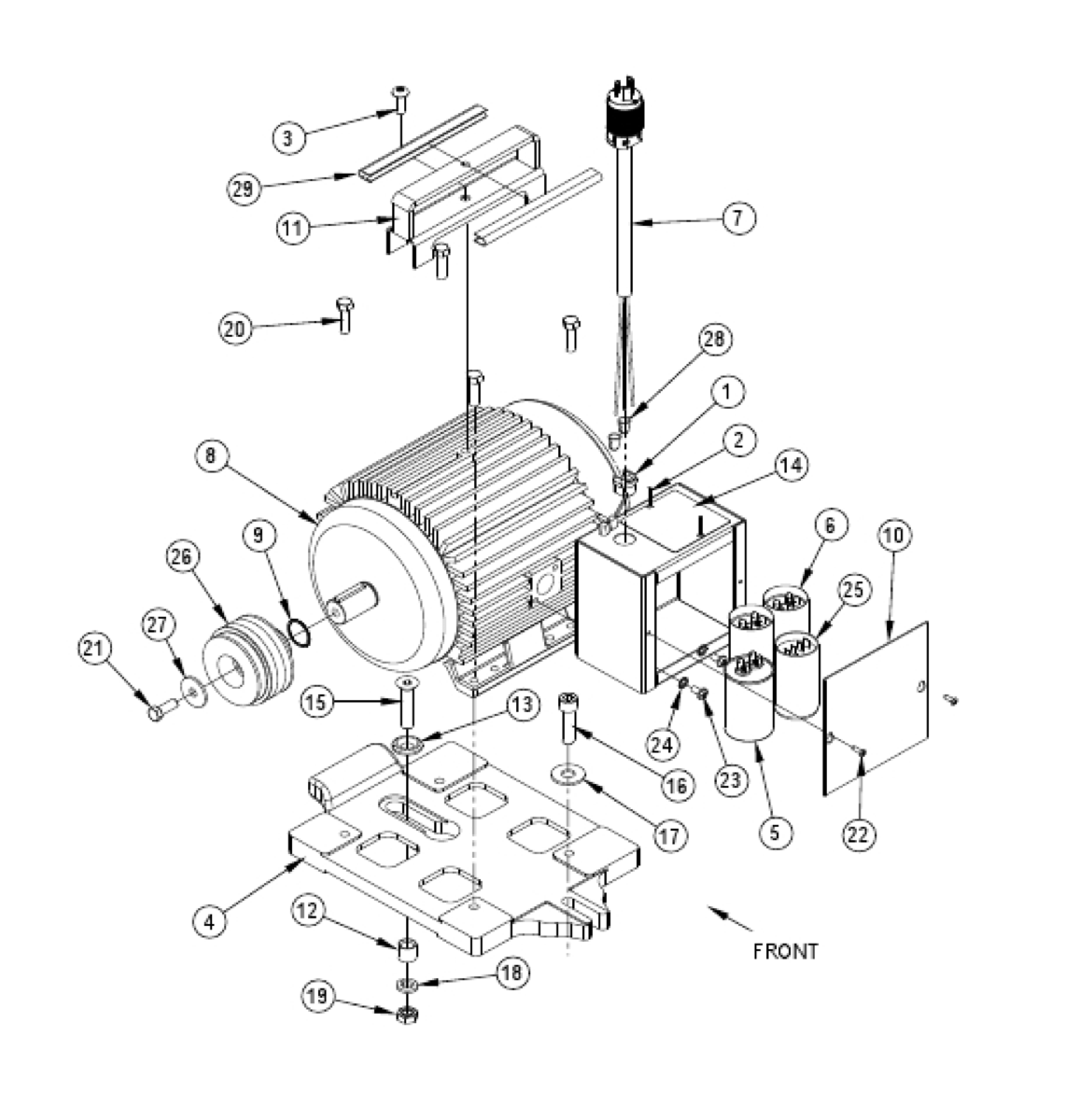

| Motor Assy [Models 07044C, 07108A, 07049C, 07109A] | | | | | |
| Item | Part Number | Qty | Description | | Item | Part Number | Qty | Description |
| 1 | 697502 | 1 | STRAIN RELIEF-BUSHING SR 8L-1 | | 15 | 84220A | 1 | SCREW 1/2-13 X 2 1/4 FLAT HD |
| 2 | 930087 | 2 | RIVET 1/8DIA USM AD42BS | | 16 | 85706A | 1 | SCR 1/2 -13X1&3/4 HX ST CAP |
| 3 | 962870 | 1 | SCR 3/8 -16X1 BT ST ALLEN | | 17 | 87006A | 1 | WASHER .56X1.38X.11 FLAT ST |
| 4 | 26108C | 1 | PLATFORM MOTOR - BLACK | | 18 | 87101A | 1 | WASHER LOCK 1/2 NOM |
| 5 | 41304A | 1 | CAPACITOR OIL FILLED 40MFD | | 19 | 920196 | 1 | NUT-1/2-13 HEX JAM |
| 6 | 41305A | 2 | CAPACITOR ELECTR 161-193MFD | | 20 | 962216 | 4 | SCREW 3/8-16 X 1-1/4 HX HD |
| 41306A | | CAPACITOR RUN 115V EZ-8 | | 21 | 962288 | 1 | SCREW 3/8-16 X 1.0 HX ST CAP |
| 7 | 41945A | 1 | CORDMOTORCLASSIC 8 | | 22 | 962727 | 2 | SCREW 8-32X 1/2 PN ST TP23 PH |
| 40673A | | CORDSET W/UK1-13P | | 23 | 962823 | 2 | SCR 1/4-20 X 1/2 PN ST PH |
| 8 | 44639A | 1 | MOTOR4 HP 230/60CLASSIC 8 | | 24 | 980614 | 2 | WASHER LK 1/4 EXT TOOTHPLTD |
| 44640A | 1 | MOTOR3 HP240 V / 50 HZCLASS | | 25 | 47378A | 1 | SWITCH MOTOR STARTING CLASSI |
| 9 | 57712A | 1 | RINGRETAININGMOTOR SHAFT8 | | 26 | 66164A | 1 | PULLEY MOTOR AMERICAN 12 |
| 10 | 62904A | 1 | ENCLOSUREMOTOR STARTPNTDCLA | | 27 | 87034A | 1 | RETAINERMTR PULLEY CLASSIC 8 |
| 11 | 64460A | 1 | HANDLE WLDMTMOTOR LIFTPNTD8 | | 28 | 170674 | 2 | CONNECTORWIRE NUT-RED |
| 12 | 67820A | 1 | SPACER-SCREW-MOTOR | | 29 | 97100A | | TRIMVINYLBLACK400 FT. SPOOL |
| 13 | 68704A | 1 | WASHER-SCREW-MOTOR | | | AS022800 | | ROTOR/SHAFT ASSEMBLY, FOR 44639A(NOT SHOWN) |
| 14 | 74044A | 1 | PLATEDANGERFIRECLASSIC 8 | | | AS016800 | | CORD, POWER, 100FT, 230V, AUSTRALIAN(NOT SHOWN) |
