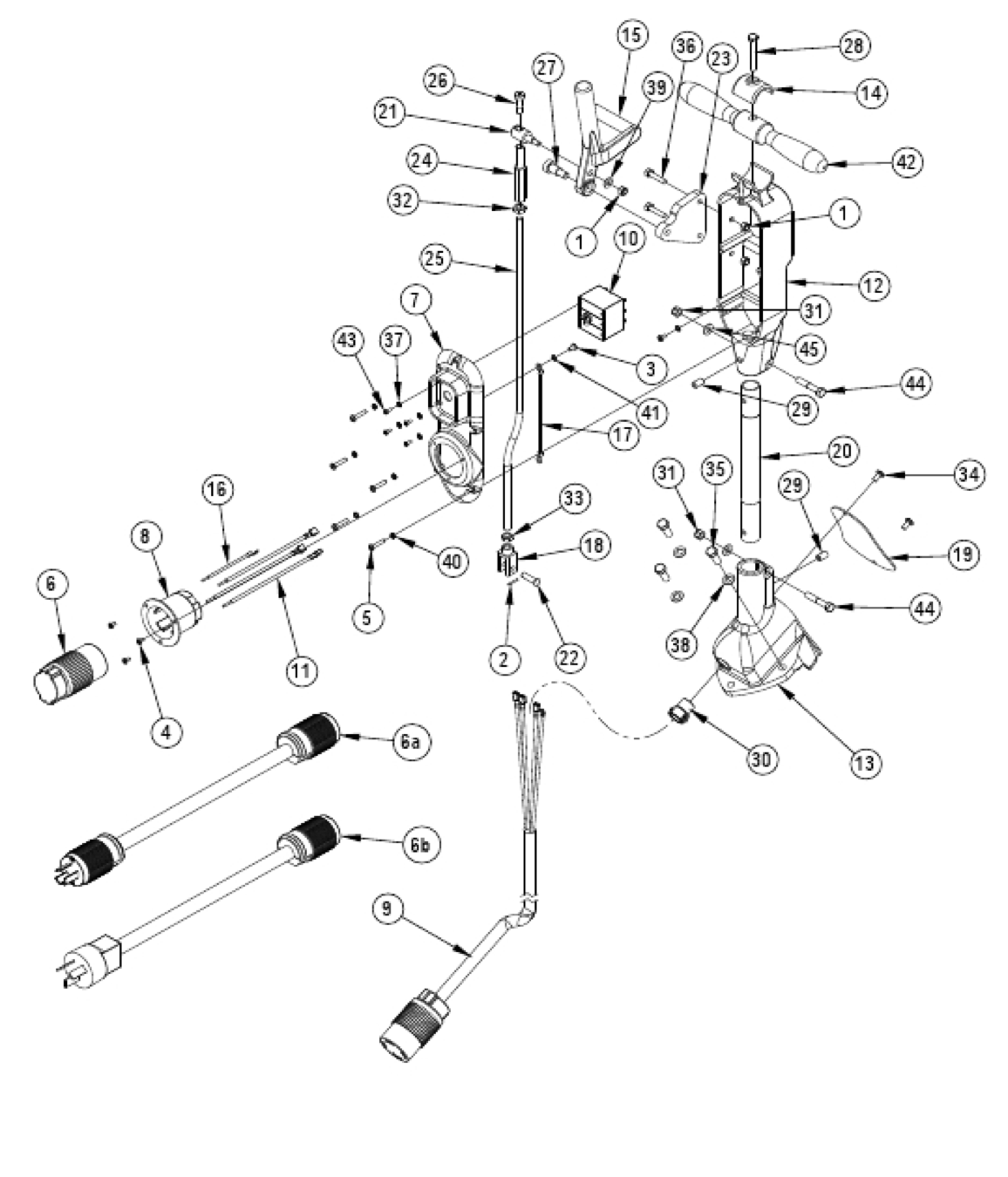

| Handle Assy [Models 07001A, 07108A, 07109A, 07044C, 07049C] | | | | | | | | | | |
| Item | Part Number | Qty | Description | | Item | Part Number | Qty | Description | | Item | Part Number | Qty | Description |
| 1 | 920284 | 3 | NUTSTOPELASTIC1/4-20HEAVY | | 12 | 20704C | 1 | SWITCH BOX - BLACK | | 30 | 170637 | 1 | CONDUITCONNECTOR 3/8 2 SCREW |
| 2 | 925036 | 1 | PIN-3/32X3/4 COTTER | | 13 | 21102C | 1 | HANDLE MOUNT - BLACK | | 31 | 920110 | 2 | NUT LK 5/16-18 REGPLTD |
| 3 | 962015 | 2 | SCREW 10-24 X 3/8 PN ST PH | | 14 | 21904C | 1 | CLAMP STEERING HANDLE - BLACK | | 32 | 920148 | 1 | NUT 3/8 -16 HEX JAM |
| 4 | 962065 | 3 | SCREW 8-32 X 1/4 PN ST PH | | 15 | 25602A | 1 | LEVER CONTROL AM-8/12 | | 33 | 920260 | 1 | NUT 3/8 -16 HEX |
| 5 | 962794 | 5 | SCREW 10-24X1 PN ST PH | | 16 | 48900A | 1 | WIRE ASSY | | 34 | 962016 | 2 | SCR 10-24X 1/2 RD ST MACH |
| 6 | 56381401 | 1 | CONNECTOR 250V NEMA L15-30R | | 17 | 48901A | 1 | WIRE ASSEMBLY | | 35 | 962288 | 3 | SCREW 3/8-16 X 1.0 HX ST CAP |
| 6a | 42201A | 1 | CORDSET- HARD SERVICE 100FT | | 18 | 53917B | 1 | CLEVIS CONTROL ROD | | 36 | 962481 | 2 | SCR 1/4-20 X 1-1/4 HEX ST CAP |
| 6b | AS016800 | 1 | CORD, POWER, 100FT, 230V, AUSTRALIAN | | 19 | 62609A | 1 | COVER-BRKT HDL | | 37 | 980607 | 4 | WASHER 6 EXT TOOTH PLTD |
| 7 | 56381704 | 1 | SWITCH BOX COVER AM-12 | | 20 | 66114C | 1 | HANDLE PIPE - BLACK | | 38 | 980638 | 3 | LOCKWASHER 3/8 LT SPRING TYPE |
| 22127C | 1 | COVER SWITCH BOX - BLACK | | 21 | 66151A | 1 | PIVOT CONTROL ROD | | 39 | 980646 | 1 | WASHER 1/4 SAE FLAT PLTD |
| 8 | 56382556 | 1 | INLET FLANGED NEMA L15-30 | | 22 | 66503A | 1 | PIN | | 40 | 980650 | 5 | WASH .19 x .34 x .04 LOCK |
| 43501A | 1 | INLETFLANGED NEMA L6-20P | | 23 | 66694A | 1 | PLATECONTROL LEVERPNTD8 BE | | 41 | 980699 | 2 | WASHER SH 1210-00 |
| 9 | 56382558 | 1 | INTERCONNECT CORD 3P-4W | | 24 | 67129A | 1 | ADJUSTERCONTROL ROD8 BELT S | | 42 | 64405A | 1 | HANDLE-STEERING |
| 41917A | 1 | CORD-INTERCONNECTING | | 25 | 67144A | 1 | ROD CONTROL AM-12 | | 43 | 85313C | 4 | SCREW 6-32 X 3/8 PAN HD |
| 10 | 56382559 | 1 | CIRCUIT BREAKER 3 POLE 24A | | 26 | 80021A | 1 | BOLT SHOULDER 3/8 X 5/8 | | 44 | 85816A | 2 | SCREW 5/16-18 X 1 3/4 HX HD |
| 41411A | 1 | CIRCUIT BREAKER 30 AMP | | 27 | NB071200 | 1 | SCREW, SHOULDER, 1/2" X 5/8" X 3/8-16 | | 45 | 980651 | 2 | WASHER 5/16 SAE FLAT |
| 11 | 56382832 | 2 | WIRE ASM 7.5 X 10 GA W / FIFQD | | 28 | 85818A | 1 | SCREW5/16-18 X 2 1/2 HX HD | | | 56380639 | 1 | DECAL-PROP 65 |
| 49023A | 2 | WIRE ASSEMBLY | | 29 | 86200A | 2 | SCR 3/8 -16X 5/8 ST ST DOGPT | | | | | |
