To purchase parts for the American 12 (Handle Assembly 07120A):

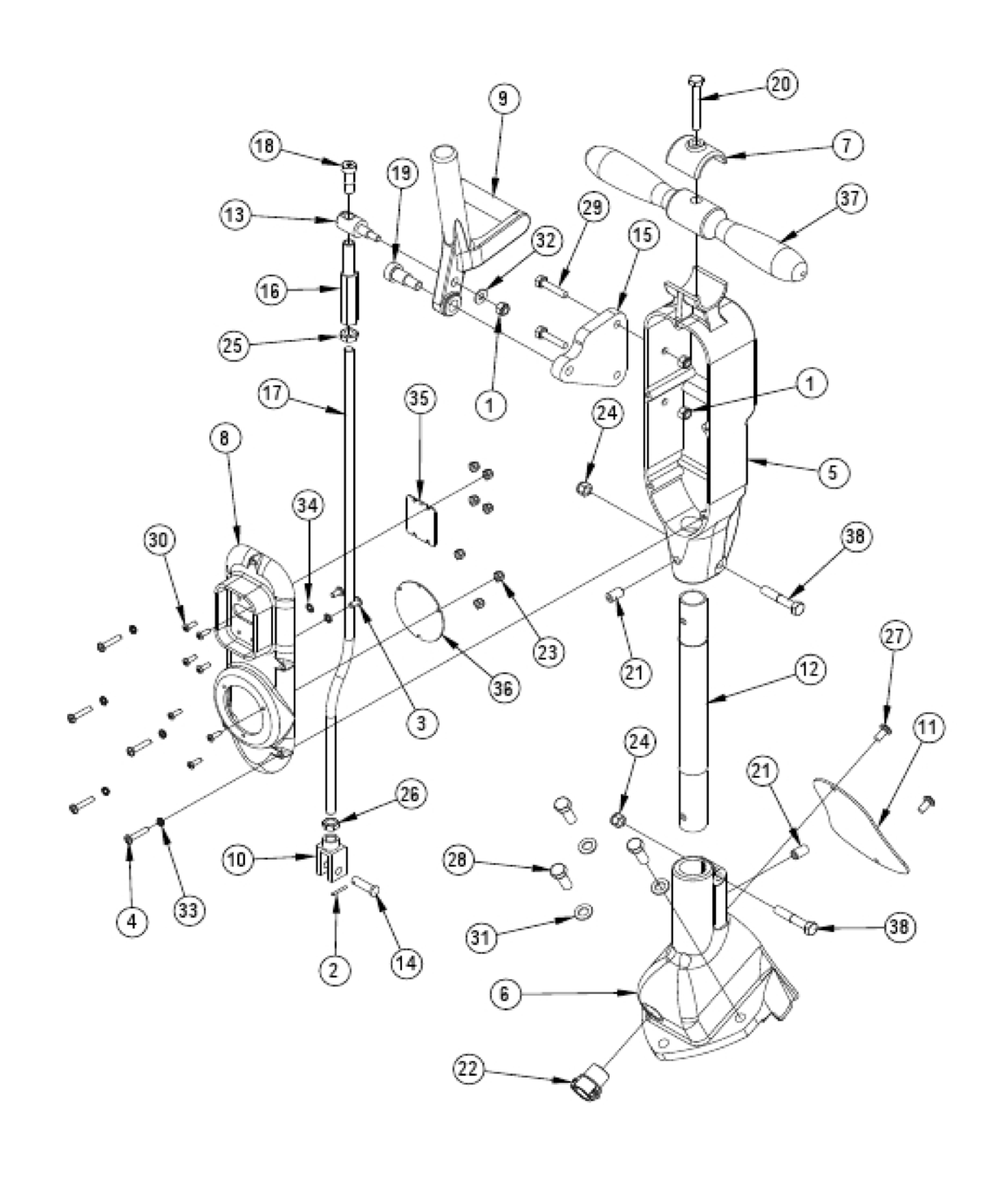

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
Handle Assy [Model 07120A] | ||||||||
Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
1 | 920284 | 3 | NUTSTOPELASTIC1/4-20HEAVY | 21 | 86200A | 2 | SCR 3/8 -16X 5/8 ST ST DOGPT | |
2 | 925036 | 1 | PIN-3/32X3/4 COTTER | 22 | 170637 | 1 | CONDUITCONNECTOR 3/8 2 SCREW | |
3 | 962015 | 2 | SCREW 10-24 X 3/8 PN ST PH | 23 | 920065 | 7 | NUT 8-32 ESNA 22NM-82 | |
4 | 962794 | 5 | SCREW 10-24X1 PN ST PH | 24 | 920110 | 2 | NUT LK 5/16-18 REGPLTD | |
5 | 20704C | 1 | SWITCH BOX - BLACK | 25 | 920148 | 1 | NUT 3/8 -16 HEX JAM | |
6 | 21102C | 1 | HANDLE MOUNT - BLACK | 26 | 920260 | 1 | NUT 3/8 -16 HEX | |
7 | 21904C | 1 | CLAMP STEERING HANDLE - BLACK | 27 | 962016 | 2 | SCR 10-24X 1/2 RD ST MACH | |
8 | 22127C | 1 | COVER SWITCH BOX - BLACK | 28 | 962288 | 3 | SCREW 3/8-16 X 1.0 HX ST CAP | |
9 | 25602A | 1 | LEVER CONTROL AM-8/12 | 29 | 962481 | 2 | SCR 1/4-20 X 1-1/4 HEX ST CAP | |
10 | 53917B | 1 | CLEVIS CONTROL ROD | 30 | 962727 | 7 | SCREW 8-32X 1/2 PN ST TP23 PH | |
11 | 62609A | 1 | COVER-BRKT HDL | 31 | 980638 | 3 | LOCKWASHER 3/8 LT SPRING TYPE | |
12 | 66114C | 1 | HANDLE PIPE - BLACK | 32 | 980646 | 1 | WASHER 1/4 SAE FLAT PLTD | |
13 | 66151A | 1 | PIVOT CONTROL ROD | 33 | 980650 | 5 | WASH .19 x .34 x .04 LOCK | |
14 | 66503A | 1 | PIN | 34 | 980699 | 2 | WASHER SH 1210-00 | |
15 | 66694A | 1 | PLATECONTROL LEVERPNTD8 BE | 35 | 40674A | 1 | COVERSWITCH FLOORCRAFTER | |
16 | 67129A | 1 | ADJUSTERCONTROL ROD8 BELT S | 36 | 40675A | 1 | COVERELEC INLET FLOORCRAFTER | |
17 | 67144A | 1 | ROD CONTROL AM-12 | 37 | 64405A | 1 | HANDLE-STEERING | |
18 | 80021A | 1 | BOLT SHOULDER 3/8 X 5/8 | 38 | 85816A | 2 | SCREW 5/16-18 X 1 3/4 HX HD | |
19 | NB071200 | 1 | SCREW, SHOULDER, 1/2" X 5/8" X 3/8-16 | 56380639 | 1 | DECAL-PROP 65 | ||
20 | 85818A | 1 | SCREW5/16-18 X 2 1/2 HX HD |
