To purchase parts for the American 12 (Drum Assembly):

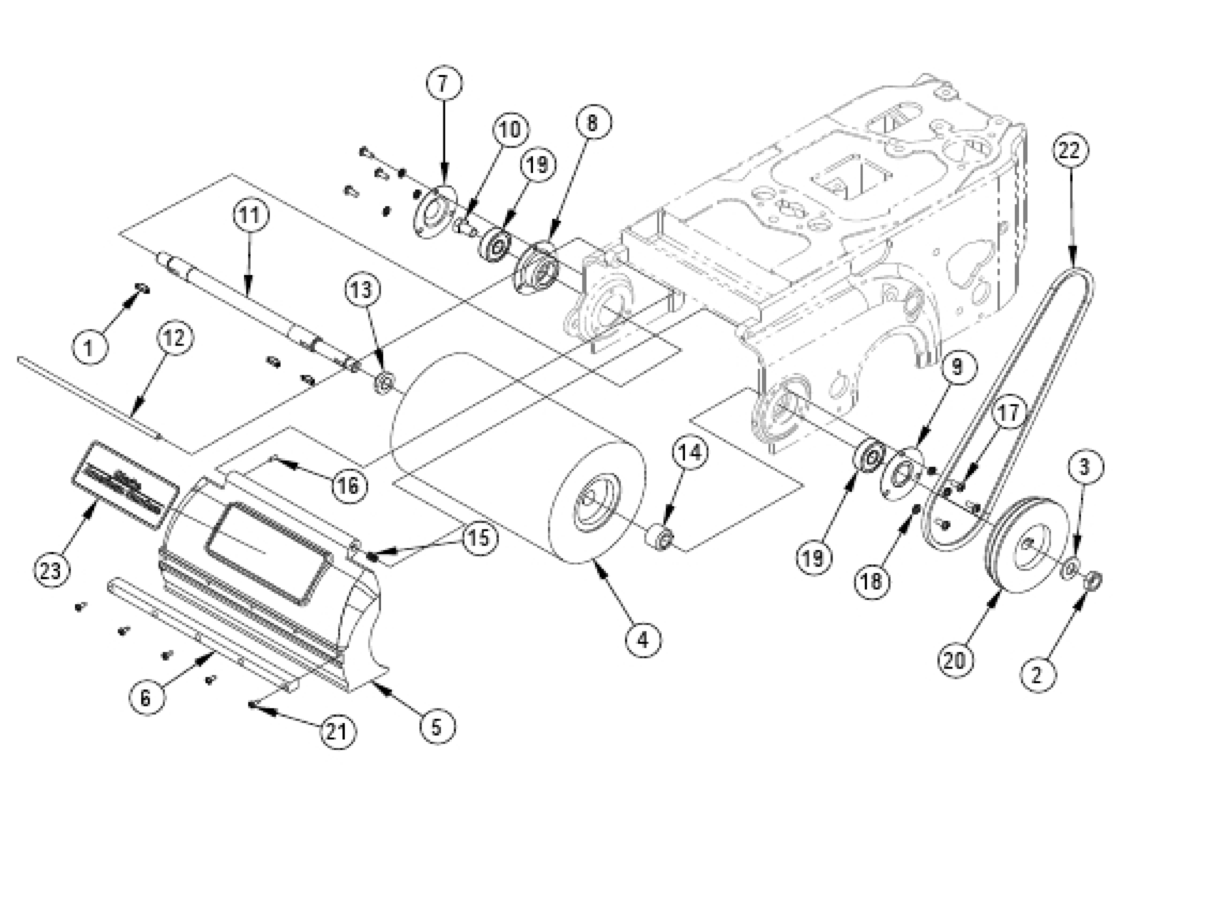

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

clarke-american-12-drum-assembly

ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
155400A3KEY 3/16 X 5/32 HIPRO1367818A1SPACER-SHAFT DRUM
29202801NUT-5/8-18X3/8 HEX JAM1467819A1SPACER-SHAFT DRUM
39806441WASHERFLT 5/8 SAE1567911A1SPRING
413500A1DRUM ASSEMBLY AMERICAN 12169622621SCREW 8-32 X 1/4 ST CUPPT
522111A1COVER DRUM AMERICAN 12179629836SCR 1/4 -20X 5/8 PN ST MACH
631211A1BUMPER ASSY189806576WASHER LOCK 1/4 STD
762608C1COVER DRUM SHAFT1951110A2BEARING-BALL
864703A1HOUSING-BEARING SHAFT2066165A1PULLEY DRUM AMERICAN 12
966918A1RETAINERFELT WASHERPNTDAM 82185517A5SCREW 10-24X1/2 PN SB TP-T PH
1067314A1SCR2251021A1BELT DRUM 3VX425 CLASSIC 8
1167415A1SHAFT-DRUM2370706A1PLATE NAME CAS
1267417A1SHAFT-COVER-DRUM
