To purchase parts for the American 12 (Belt Guard Models 07001A, 07108A, 07109A, 07044C, 07049C):

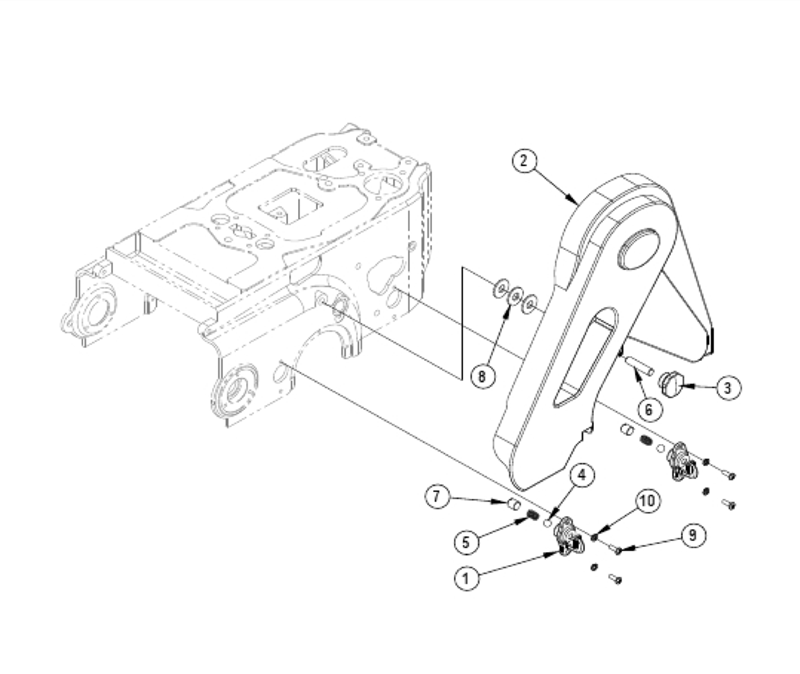

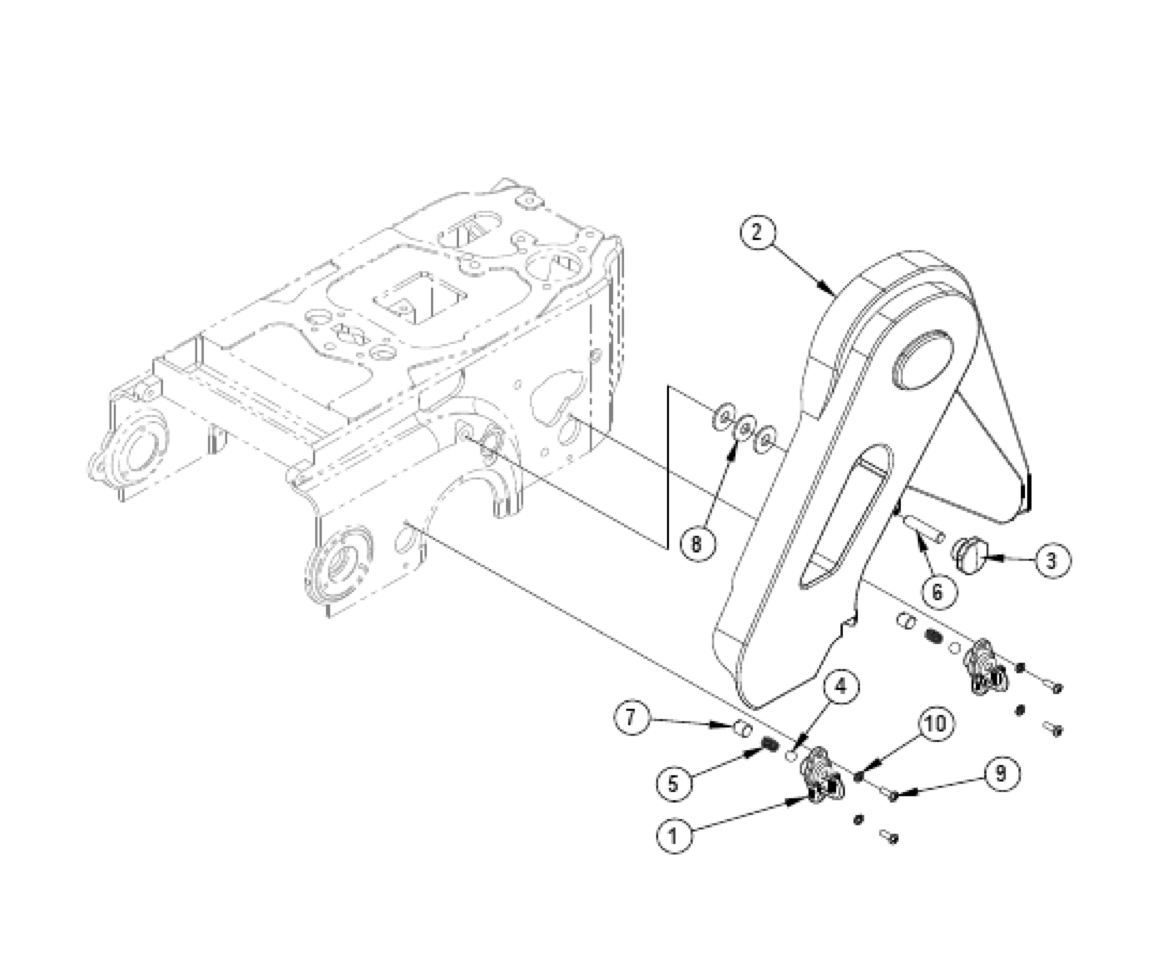

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Belt Guard Assy [Models 07001A, 07108A, 07109A, 07044C, 07049C] | |||
| Item | Part Number | Qty | Description |
| 1 | 21902C | 2 | CLAMP - BELT GUARD - BLACK |
| 2 | 23801A | 1 | GUARD-BELT PNTD |
| 3 | 26000C | 1 | NUT - BLACK |
| 4 | 51113A | 2 | BALL 1/2 C.R. STEEL |
| 5 | 67909A | 2 | SPRING |
| 6 | 68001A | 1 | STUD-GUARD BELT |
| 7 | 86202A | 2 | SCR 5/8 -11X 5/8 ST ST |
| 8 | 87006A | 3 | WASHER .56X1.38X.11 FLAT ST |
| 9 | 962892 | 4 | SCR 1/4 -20X 3/4 PN ST |
| 10 | 980657 | 4 | WASHER LOCK 1/4 STD |
