To purchase parts for the American 12 (Belt Guard Models 07120A):

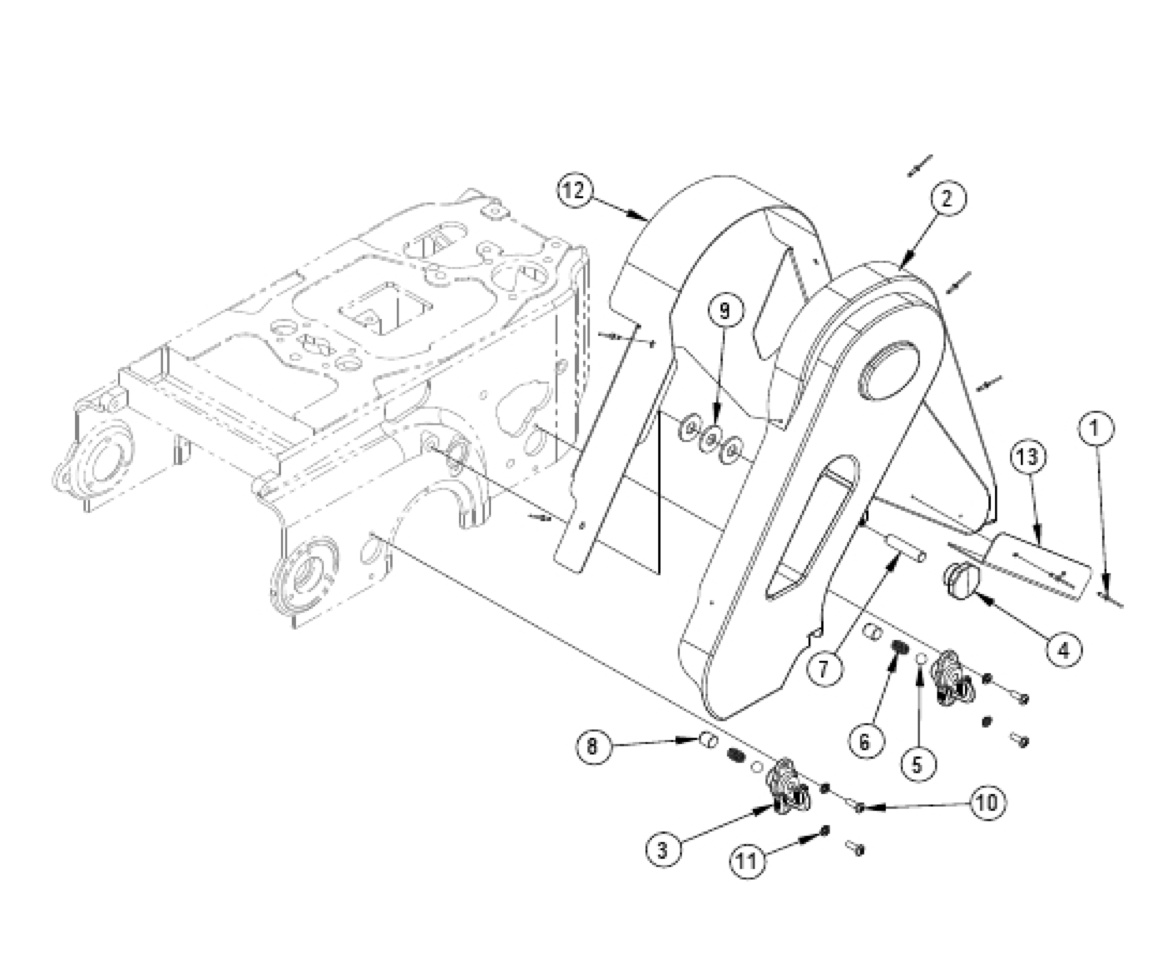

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Belt Guard Assy [Model 07120a] | ||||||||
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1 | 930087 | 7 | RIVET 1/8DIA USM AD42BS | 8 | 86202A | 2 | SCR 5/8 -11X 5/8 ST ST | |
| 2 | 21097A | 1 | GUARD BELT AM-12 CE | 9 | 87006A | 3 | WASHER .56X1.38X.11 FLAT ST | |
| 3 | 21902C | 2 | CLAMP - BELT GUARD - BLACK | 10 | 962892 | 4 | SCR 1/4 -20X 3/4 PN ST | |
| 4 | 26000C | 1 | NUT - BLACK | 11 | 980657 | 4 | WASHER LOCK 1/4 STD | |
| 5 | 51113A | 2 | BALL 1/2 C.R. STEEL | 12 | 61692A | 1 | SHIELD UPPER GUARD AM-12 UK | |
| 6 | 67909A | 2 | SPRING | 13 | 61693A | 1 | SHIELD LOWER GUARD AM-12 UK | |
| 7 | 68001A | 1 | STUD-GUARD BELT | |||||
