To purchase parts for the American 12 (Base Assy Models 07001A, 07108A, 07109A, 07120A):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

clarke-american-12-base-assembly-1

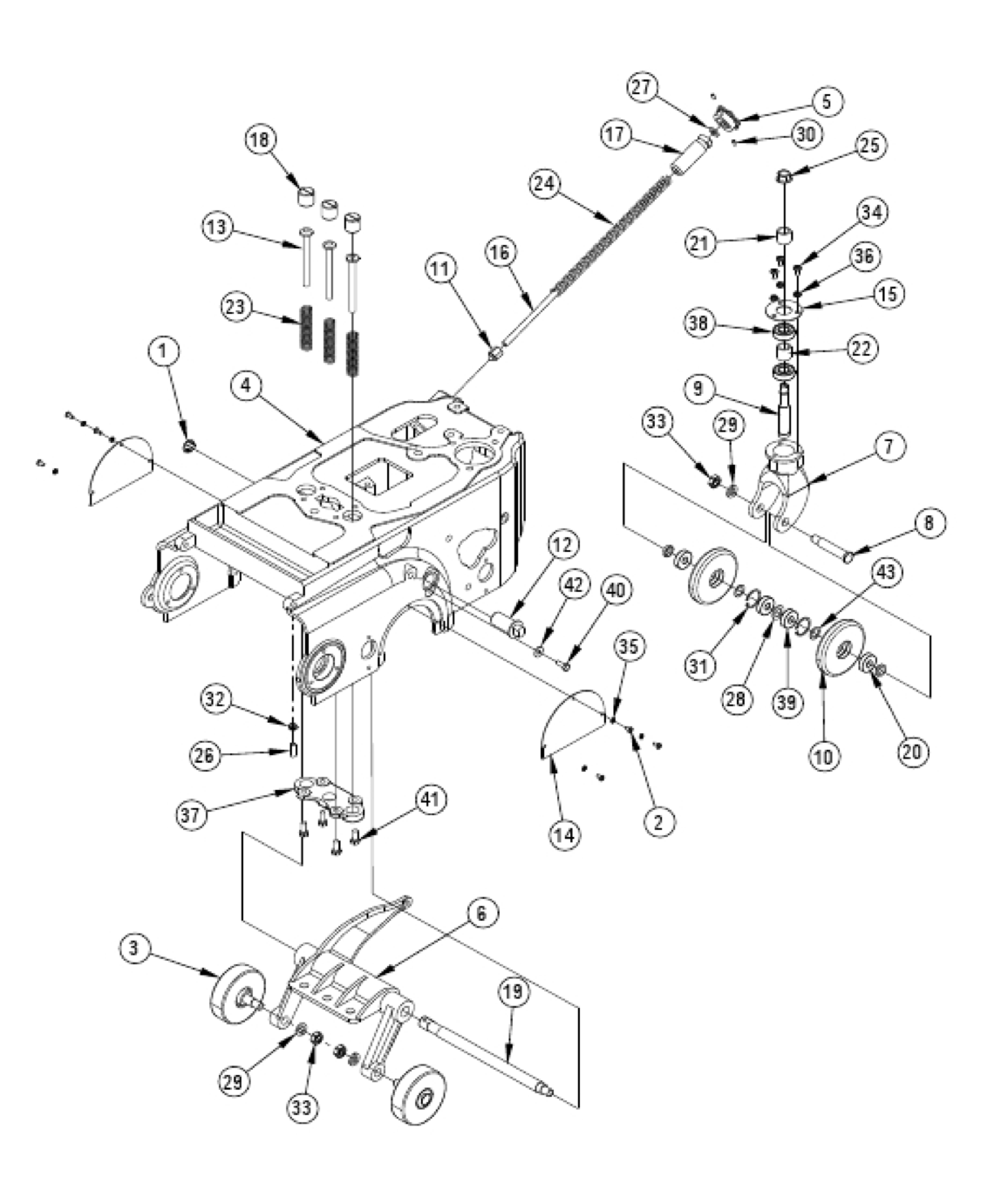

Base Assy [Models 07001A, 07108A, 07109A, 07120A]
ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
15013451PLUG BUTTON 25/32 FM2367906A3SPRING AMERICAN 8/12
29620156SCREW 10-24 X 3/8 PN ST PH2467907A1SPRING DRUM PRESSURE AMERICA
310243A2WHEEL ASM URETHANE2581209A1NUT LARGE FLANGE 1/2-13
423406A1FRAMEMAIN AMERICAN 122686201A1SCR 5/16-18X1 ST ST CUP PT
525200C1KNOB HAND - BLACK2787000A1WASHER .39X.75X.09 FLAT ST
625600A1LEVER-REACH2887003A1WASHER .59X1.00X.09 FLAT ST
729403C1YOKE WHEEL - BLACK2987101A3WASHER LOCK 1/2 NOM
860101A1AXLE3088502A2SET SCREW-10-24X3/8 CONE POINT
960715B1BOLTPIVOTAMERICAN 8 & 12317473042RING RETAIN ARM BRG 37
1061333A2CASTER WHEEL 4329201601NUT-5/16-18 HEX JAM
1162000A1NUT-END339201963NUT-1/2-13 HEX JAM
1262801A1ECCENTRIC-CONTROL SHAFT349628233SCR 1/4-20 X 1/2 PN ST PH
1366123A3PLUNGER359806506WASH .19 x .34 x .04 LOCK
1466628C2COVER TRUCK WHEEL369806573WASHER LOCK 1/4 STD
1566913A1RETAINER BEARING3726502A1PLATE-PLUNGER SPRING
1667109A1ROD-PILOT3851112A2BEARING 6202
1767309A1SCREW DRUM PRESSURE ADJ. AME3951226A4BEARING BALL 6002
1867315A3SCR4085806A1SCREW 1/4-20 X 3/4 HX SZ CAP
1967416A1SHAFT-LEVER4185811A4BOLT 5/16-18 X 3/4 HX HD
2067810A2SPACER4287007A1WASHER-CONTROL SHAFT ECCENTRIC
2167814A1SPACER4361355A2SPACERCASTER WHEEL AM 8&12
2267821A1SPACER DRUM SANDER
