To purchase parts for the American DU-8R (Motor Assembly):

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

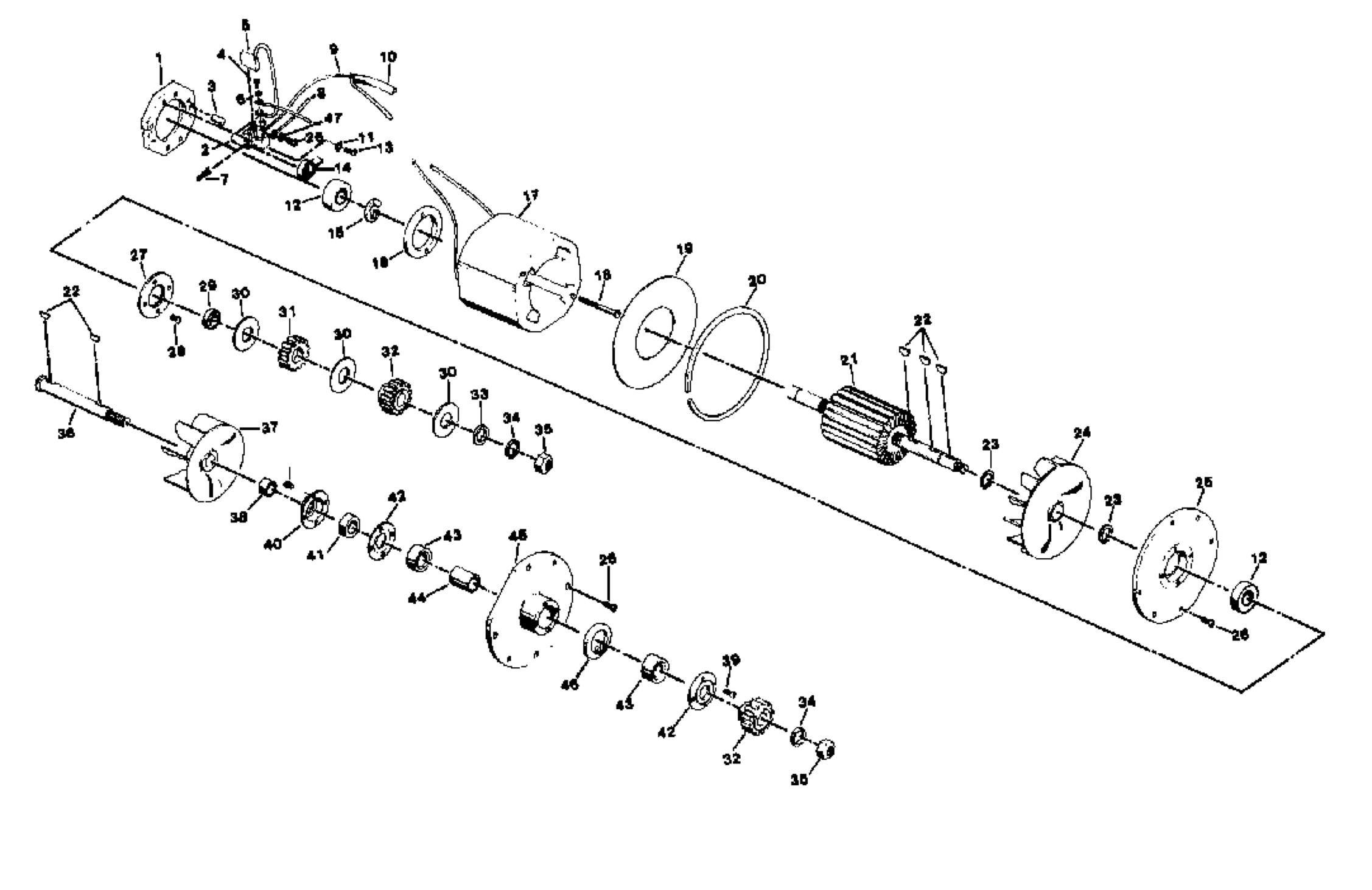

american-8r-motor-assemby

Item	Part Number	Qty	Description		Item	Part Number	Qty	Description
1	161308	1	BLOCK BRUSH DU8/R		25	167802	1	Shield - Pulley
2	164004	4	HOLDER BRUSH S7A/R		26	962109	10	SCR 10-24X 5/8 PN SS
3	925128	1	PIN-3/16X5/8 DOWEL		27	162023	1	CLAMP FAN BRG DU8
4	962003	4	SCR 6-32X 3/8 RD ST SEMS		28	962345	4	Screw - #10-24 x 3/8 Rd. Hd. Sems
5	40800A	4	BRUSHCARBON EACH DU8/DU8R		29	168212	1	SPACER MOTOR PULLEY 68
6		4	Washer - #6 Lock		30	163304	3	FLANGE MOTOR PULLEY 46
7	925004	4	PIN-1/16X1/2 COTTER		31	166909	1	PULLEY MTR TO DRUM 45 1
8	911954	2	BR HOLD SHNT ASM DU8		32	166906	2	PULLEY DU8 & DU8R FAN/ARMAT.
9	911662	1	Lead - Motor		33	980648	1	WASH-17/32 ID X 1&1/16 OD PLN
10	168104	1	Sleeve - 5/16 x 80mm		34	980626	2	LOCKWASHER LIGHT SERIES 1/2
11	980621	8	WASHER 8 EXT. TOOTH PLTD		35	920132	2	NUT-1/2-20 HEX JAM
12	902550	2	BEARING BALL-6203		36	167704	1	SHAFT EXHAUST FAN 13 1**OBSOLETE**
13	962407	8	SCR 8-32X 1/2 RD ST SEMS		37	163004	1	FAN INTAKE DU8/R
14	168324	4	SPRING BRUSH TENSION S7A/R		38	168207	1	SPACER DU8
15	167302	1	RINGRETAININGE-TYPE FOR 5/8		39	85303A	8	SCREW 8-32 X 3/8 PN ST PH
16	167208	1	RETAINER BRUSH BLOCK EC8 DU8/		40	167210	1	RETAINER BRG SEAL 2351D
17	163104	1	FIELD ASM 115VAC DU8/R		41	167608	1	SEAL INT FAN BRG 119
18		2	Screw - 1/2-20 x 4-1/2"		42	162021	2	CLAMP BEARING 2351B
19	166172	1	39 PLATE MOTOR BAFFLE		43	902567	2	BEARING BALLDOUBLE SEALED
20	167204	1	40 RETAINER MTR BFLE PLT		44	168203	1	SPACER FAN BEARING 15
21	160408	1	ARMATURE ASM 115VAC DU8/R		45	164202	1	HOUSING FAN BEARING DU8-R
22	915028	5	KEY 1/8 X 5/8 WDRF 5		46	167312	1	RING RETAIN 40137
23	980004	2	WASHER BRG DU8		47	980699	2	WASHER SH 1210-00
24	163008	1	FAN MOTOR 38
