To purchase parts for the American 12 (Dust Control Assembly):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

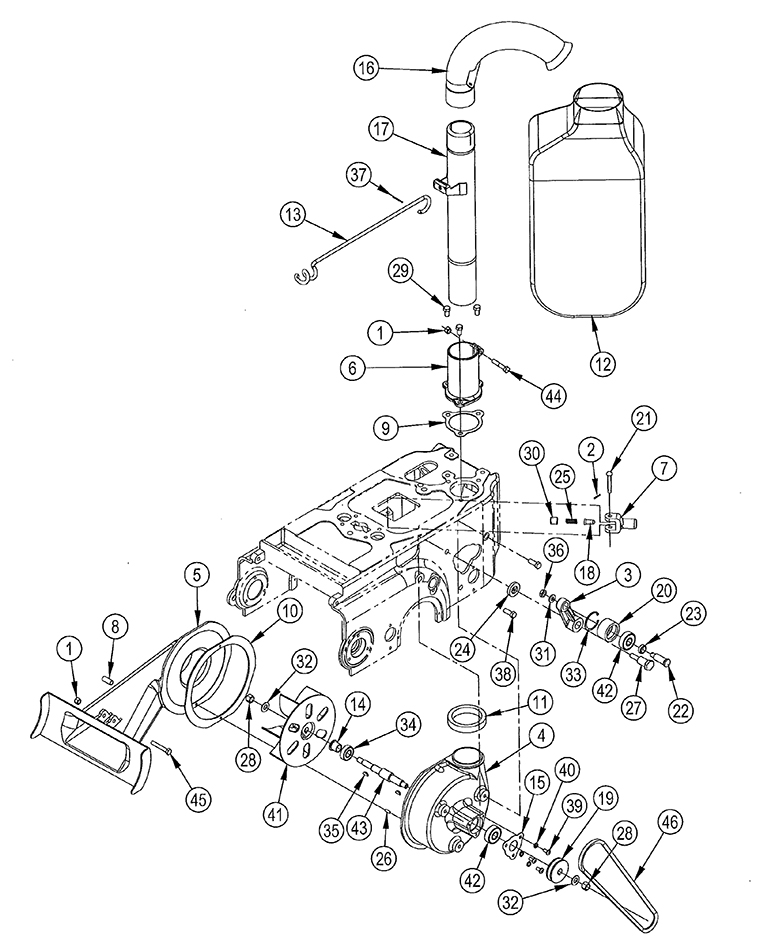

American 12 dust control assembly

ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
19202562Nut, Hex Nyl Loc 5/16-182567908A1Spring
29250361Pin-3/32x3/4 Cotter2668002A1Stud
320401B1Idler Arm Black2768101A1Stud
424504C1Fan Housing - Black2881202A2Nut 7/16-14 Hx St Lh
526102A1Pan-Dust2985820A3Screw 3/8-16 X 5/8 Hx Cap G5
627801C1Support - Dust Pipe3086202A1Scr 5/8-11x 5/8 St St
729402A1Yoke3187000A1Washer .39x75x.09 Flat St
830501A1Bushing3287002A2Washerflat
934223A1Gasket- Support Pipe338773041Ring Retaining Internal
1034224A1Gasket349025671Bearing Balldouble Sealed
1139704A1Washer-Felt359150282Key, 1/8 X 5/8 Woodruff
125095A1Bag Assy- Dust369201481Nut, 3/8-16 Hex Jam
1360401A1Arm-Cable379250441Pin, Cotter-.094 X 1.00
1461602A1Collar389622882Bolt, 3/8-16 X 1.00 Hex Hd
1532001A1Cap-Bearing399628233Screw, 1/4-20 X 1/2 P.H.
1662800A1Pipe Assy409806573Washer, Lock 1/4
1766110A1Pipe Assy- Dust Weldt4123300A1Fan
1866115A1Plunger4251111A2Bearingball
1966172A1Pulley Fan Am-124367424A1Shaft Fan
2066173A1Pulley Idler Am-124485816A1Screw, 5/16-18 X 1.75 Hex Hd
2166505A1Pin-Hinger Yoke4585817A1Screw 5/16-18 X 2.00 Hex Hd Gr5
2267413A1Shaft46AS0304001Belt Fan (Models 07108A, 07109A, 07204A, 07120A, 07108C)
2367815A1Spacer-Bearing-Idler Pulley47AS0186001Belt, 3V 35.5 (Model 07001A, 07108B)
2467816A1Spacer
