To purchase parts for the FloorCrafter (Motor Assembly):

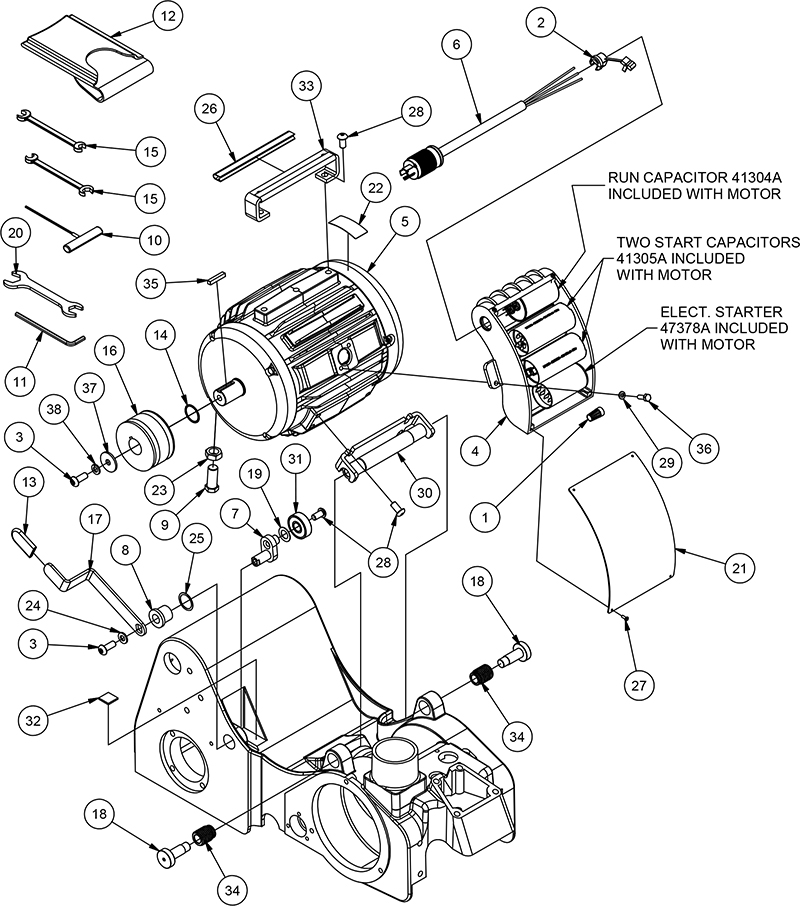

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".


ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
11706742Connectorwire Nut-Red2173715A1Plate Elec/Fire Warning Hk-8
26975021Strain Relief-Bushing Sr 8l-12277234A1Labelwarningheavy Object
39628702Scr 3/8 -16x1 Bt St Allen2380138A1Nut Jam 5/8-11
422904A1Enclosuremtr Strtpntd Apoll2487000A1Washer .39x.75x.09 Flat St
5A40151A1Motor 4HP (model 07104A)2587052A1Washer Flt 1.25x1.00x.020nylon
5B563808831Motor 4 HP 240V/50 HZ (model 56380917)2697100A1.25’ Trim, Vinyl, Black 400 Ft. Spool
641945A1Cordmotorclassic 8279623304Screw, 6-32 X 3/8 Pan Hd.
751093A1Cam Belt Release289625657Screw, 6-32 X 3/8 Pan HD
851215A1Bearing Flange 5/8x1x1299806572Washer, Lock 1/4
951222A1Screw Belt Tensioning3010173A1Assy, Motor Mount
1051273A1Key Hex 3/323151111A1Bearingball
1151274A1Key Hex 7/323252420A1Cover, Lever
1251347A1Pouch Tool3360350A1Handle, Mainframe
1352421A1Pad Stop3460394A1Key Square .250 X 1.38
1457712A1Ringretainingmotor Shaft83560475A2Fastener, Motor
1559810A2Wrench-Paper Clamp 9/16 X 7/163685806A2Screw, 1/4-20 X 3/4 Hex Sz
1660365A1Sheave Motor3787034A1Retainer, Motor Pulley
1760368A1Lever Belt Tensioning38MX10751Washer, Lock, 3/8
1860476A2Pin Motor Mount*10332A1Belt Sander Tool Kit (10, 11, 12, 15, 20)
1960482A1Spacer* = Optional, Not Included
2060498A1Wrench 15/16 X 3/4 Open
